Запчасти Case 9020B (2-048) - OIL FILTER AND COOLER, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC02#2001 AND AFTER (02) - ENGINE

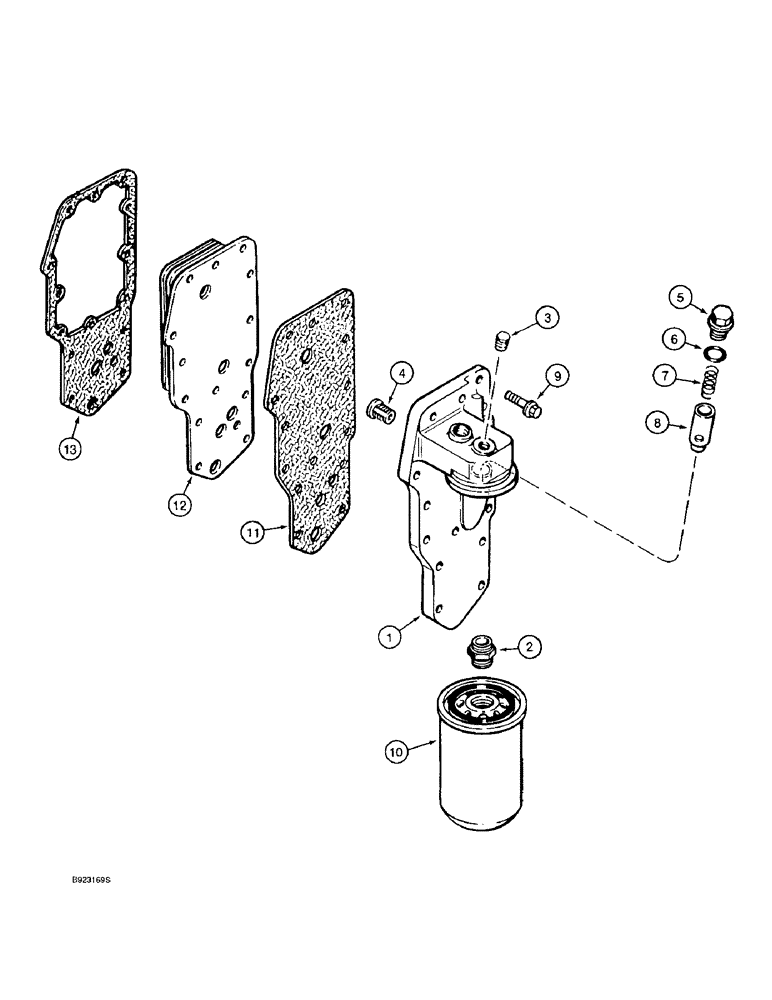

Схема запчастей Case 9020B - (2-048) - OIL FILTER AND COOLER, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC02#2001 AND AFTER (02) - ENGINE
8
3
6
10
7
2
1
4
9
13
12
5
11

Артикул

Название

Примечание

Количество

J918954

HEAD

ASSEMBLY - oil filter and cooler, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - oil filter and cooler

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

4

J927622

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

J915787

PLUG

- threaded

1шт.

6

J929457

O-RING

- sealing

1шт.

7

J925009

SPRING

- compression

1шт.

8

J918428

PLUNGER

- regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

10

J933145

FILTER

- engine oil, cartridge

1шт.

J908616 can be used instead of J933145. J908616 is the regular specified filter and J933145 is the premium filtration filter. Both are applicable and available.

1шт.

11

J942915

GASKET

- filter head

1шт.

12

J921557

COOLER

CORE - cooler, oil

1шт.

13

J942914

GASKET

- oil cooler core

1шт.

Выбрано товаров: 15
