(2-045A) - WASTEGATE ACTUATOR, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC02#2001 AND AFTER

Запчасти Case 9020B (2-045A) - WASTEGATE ACTUATOR, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC02#2001 AND AFTER (02) - ENGINE

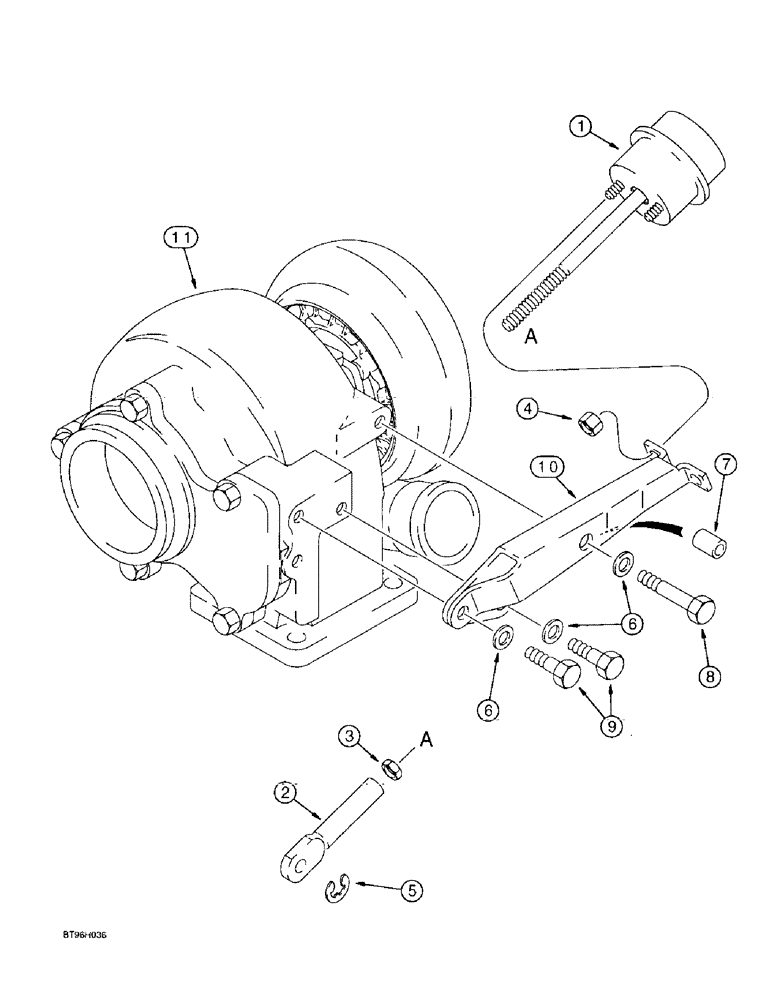

Схема запчастей Case 9020B - (2-045A) - WASTEGATE ACTUATOR, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC02#2001 AND AFTER (02) - ENGINE
9
1
6
2
7
10
8
5
6
3
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J802906

TURBOCHARGER

KIT - turbocharger, includes all parts shown below and on Figure 2-44

1шт.

JR802906

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

JC537751

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J537561

ACTUATOR

- turbo wastegate

1шт.

2

J528177

LINK

- adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

4

J528204

LOCK NUT

- lock

2шт.

5

J528221

CIRCLIP

RING - retaining

1шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

- mounting, short, 13,6 mm

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

10

J535203

SUPPORT

BRACKET - wastegate actuator

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.
