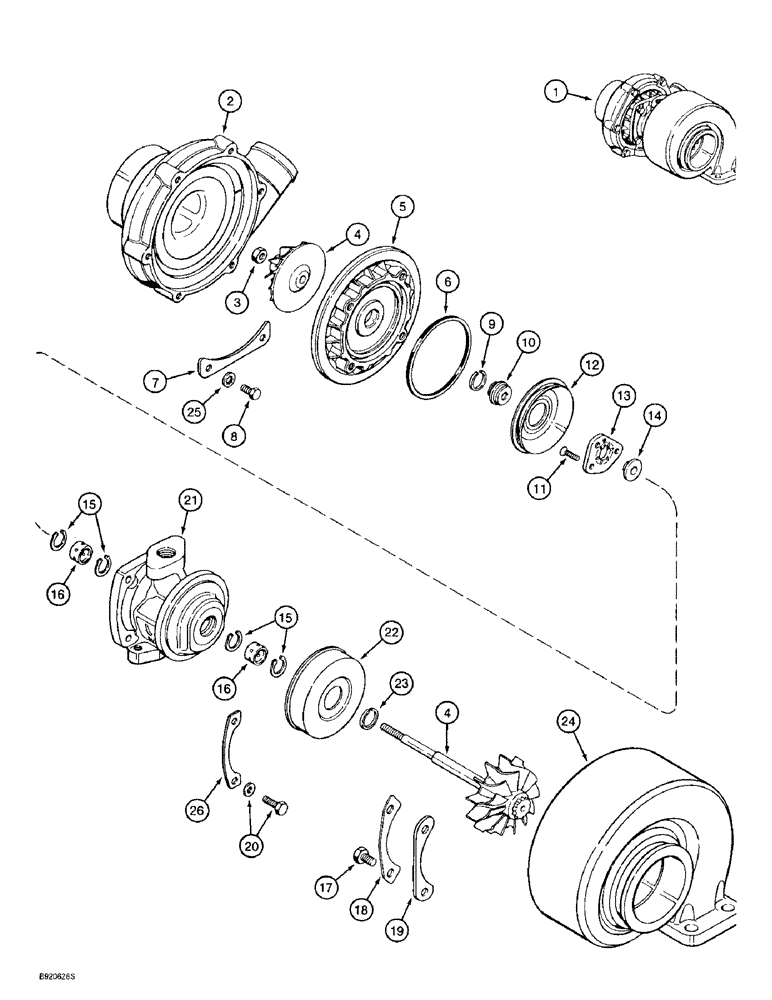

Запчасти Case 9020B (2-042) - TURBOCHARGER, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC02#2001 (02) - ENGINE

J802290

TURBOCHARGER

KIT - turbocharger, includes (1) turbocharger, (1) J519807 drain tube gasket, (1) J919687 adapter with O-ring, and (1) J709861 turbocharger mounting gasket, Includes: Ref. 2 - 26

1шт.

JR802290

REMAN-TURBOCHARGER

9020B Prior To P.I.N. DAC01#2001

1шт.

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW - cap

4шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - flat head Torx

3шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap, retaining

4шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - plate retaining

4шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex, lock, includes washer

4шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - lock

8шт.

Part of turbocharger overhaul KIT, P/N J545652.

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Refs. 6, 8, 9, 11, 13, 15 - 18, 20, 23 and 25

1шт.
