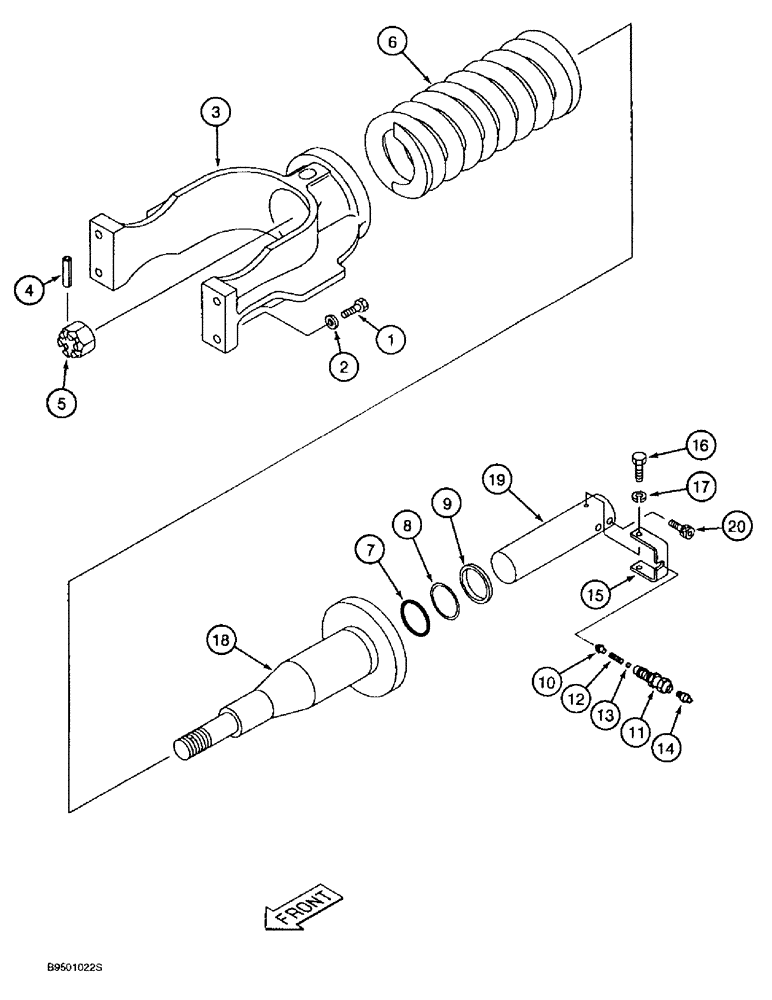

Запчасти Case 9020B (5-008) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Idler wheel hub Hex, M16 x 50, 10.9

4шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, idler wheel hub

4шт.

3

160409A1

YOKE

- track adjuster

1шт.

4

738-1880

LOCK PIN,8mm OD x 80mm L, Slotted

PIN - roll, 8 x 80 mm, guide nut

1шт.

5

283647A1

SLOTTED NUT

- hex slotted, M48 - 2 fine thread

1шт.

6

161300A1

SPRING

- track tension

1шт.

161301A1

CYLINDER

ASSEMBLY - track adjuster, Includes: Ref. 7 - 20

1шт.

7

154680A1

O-RING

- piston rod, replaces 160399A1 O-ring

1шт.

8

160412A1

BACK-UP RING,75mm ID x 85mm OD x 1.9mm Thk

RING - backup, piston rod wiper

1шт.

9

160407A1

SEAL,75mm ID x 89mm OD x 11mm Thk

WIPER - piston rod

1шт.

150107A1

LUBE NIPPLE

VALVE - check, Includes: Ref. 10 - 14

1шт.

10

150120A1

CAP

POPPET - check valve, no longer available, order 150107A1 valve

1шт.

11

150112A1

VALVE SEAT

BODY - check valve, no longer available, order 150107A1 valve

1шт.

12

150115A1

SPRING

- check valve, no longer available, order 150107A1 valve

1шт.

13

150897A1

BALL

- check, no longer available, order 150107A1 valve

1шт.

14

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

15

160413A1

BRACKET

- mounting, check valve

1шт.

16

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

2шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

161500A1

GUIDE

- track tension spring

1шт.

19

160411A1

JACK PISTON

ROD - piston

1шт.

20

561-1021

SCREW,Hex Soc Hd, M16 x 1.5 x 30, 8.8

BOLT - hex socket, 16 - 1.5 x 25 mm, class 12.9

1шт.
