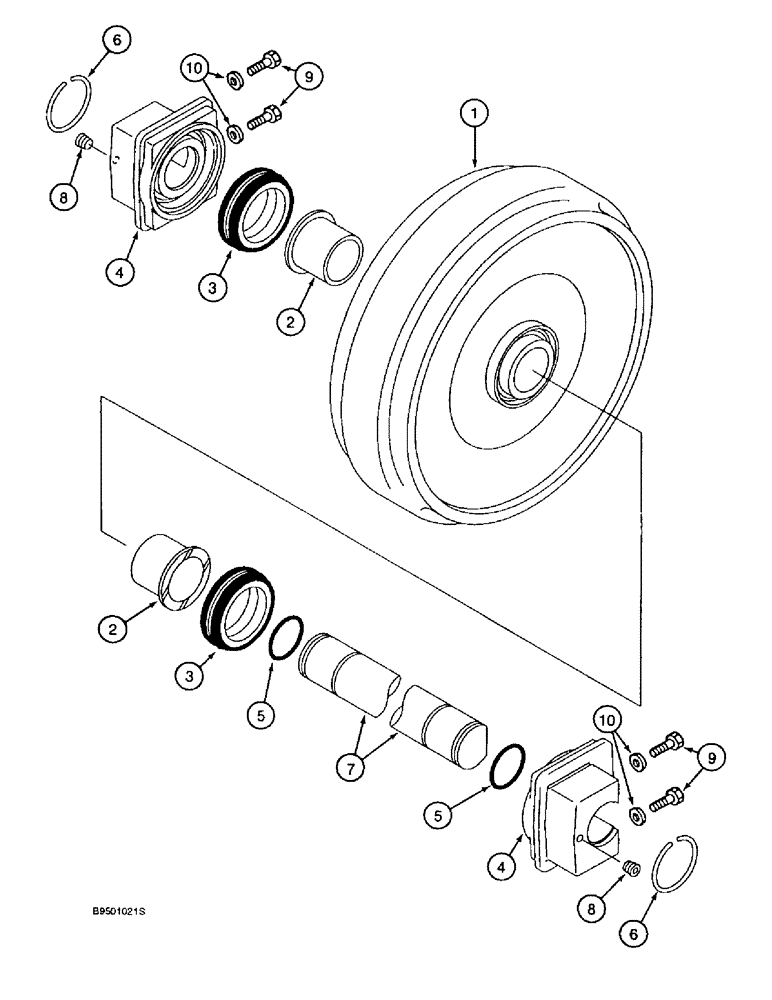

Запчасти Case 9020B (5-006) - IDLER WHEEL (11) - TRACKS/STEERING

160424A1

FRONT IDLER

WHEEL ASSEMBLY - idler, Includes: Ref. 1 - 8

2шт.

1

160425A1

FLEETING PULLEY

WHEEL - idler, track

1шт.

2

160427A1

RING,65mm ID x 92mm OD x 69mm L

BUSHING - idler wheel

2шт.

3

160397A1

SEAL,95mm ID x 114mm OD x 32mm Thk

ASSEMBLY - face, includes two rings and two seals

2шт.

4

160426A1

HUB

- idler support

2шт.

5

152422A1

O-RING

- seal, shaft

2шт.

6

150709A1

WIRE

CLIP - wire, shaft retaining

2шт.

7

160408A1

WHEEL SHAFT

SHAFT - idler wheel

1шт.

8

150821A1

PLUG

- port, hub

2шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.
