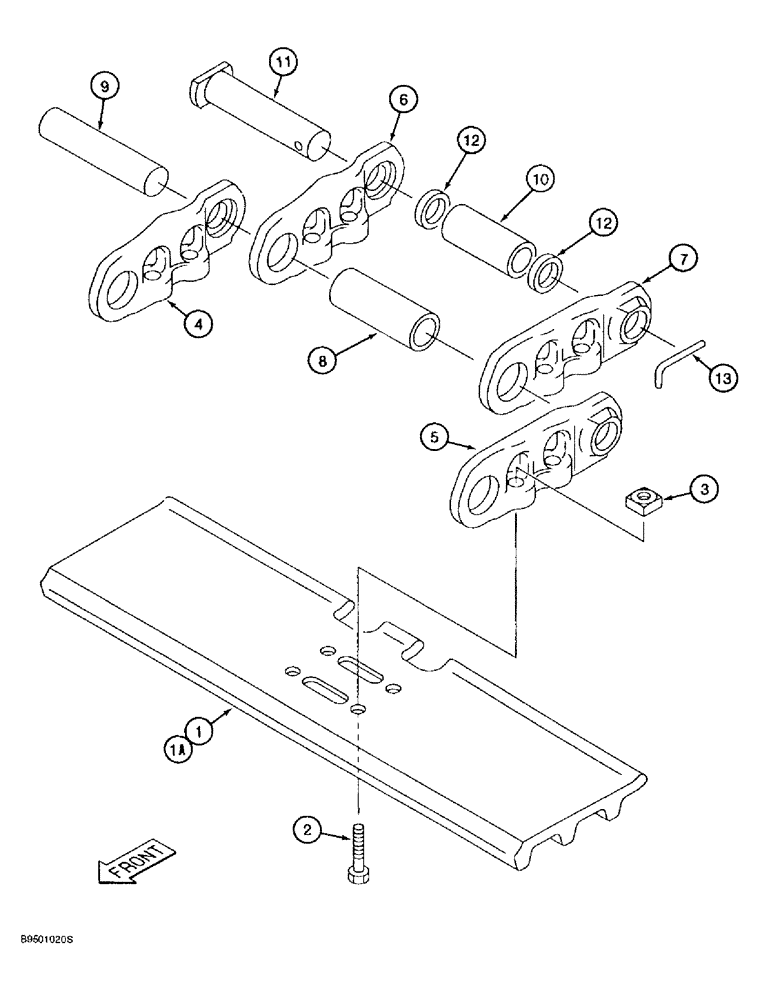

Запчасти Case 9020B (5-004) - TRACK CHAIN ASSEMBLY (11) - TRACKS/STEERING

161296A1

TRACK CHAIN

CHAIN ASSEMBLY - track, includes 600 mm (23-5/8 inch) track shoes, Includes: Ref. 1 - 13

2шт.

For info. on new sealed and greased track chain parts for 600mm shoe applications see installation diagram 363845A1.

1шт.

163155A1

TRACK CHAIN

CHAIN ASSEMBLY - track, includes 700 mm (27-1/2 inch) track shoes, no longer available as an assembly, order component parts separaly, Includes: Ref. 1 - 13

2шт.

For info. on new sealed and greased track chain parts for 700mm shoe applications see installation diagram 363846A1.

1шт.

1

161298A1

TRACK SHOE

SHOE - track, three bar grouser, 600 mm (23-5/8 inch)

43шт.

1a

159416A1

TRACK SHOE

SHOE - track, three bar grouser, 700 mm (27-1/2 inch)

43шт.

2

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

BOLT - special, track shoe

172шт.

3

151767A1

NUT

- special, track shoe

172шт.

161297A1

CHAIN (CE)

CHAIN ASSEMBLY - track, without shoes, Includes: Ref. 4 - 13

1шт.

4

159670A1

LINK

- track chain, right-hand, standard

42шт.

5

159671A1

LINK

- track chain, left-hand, standard

42шт.

6

159674A1

LINK

- master, chain, right-hand

1шт.

7

159675A1

LINK

- master, chain, left-hand

1шт.

8

159693A1

SPACER

BUSHING - link pin

42шт.

9

159672A1

PIN

- link, for standard track link

42шт.

10

159694A1

BUSHING

- master link pin

1шт.

11

159676A1

HEADED PIN,36.3mm OD x 208mm L

PIN - master link, with head and pin hole

1шт.

12

159673A1

SPACER, RING

SPACER - bushing, master link only

2шт.

13

159677A1

COTTER PIN,8mm OD

PIN - lock, master link pin

1шт.
