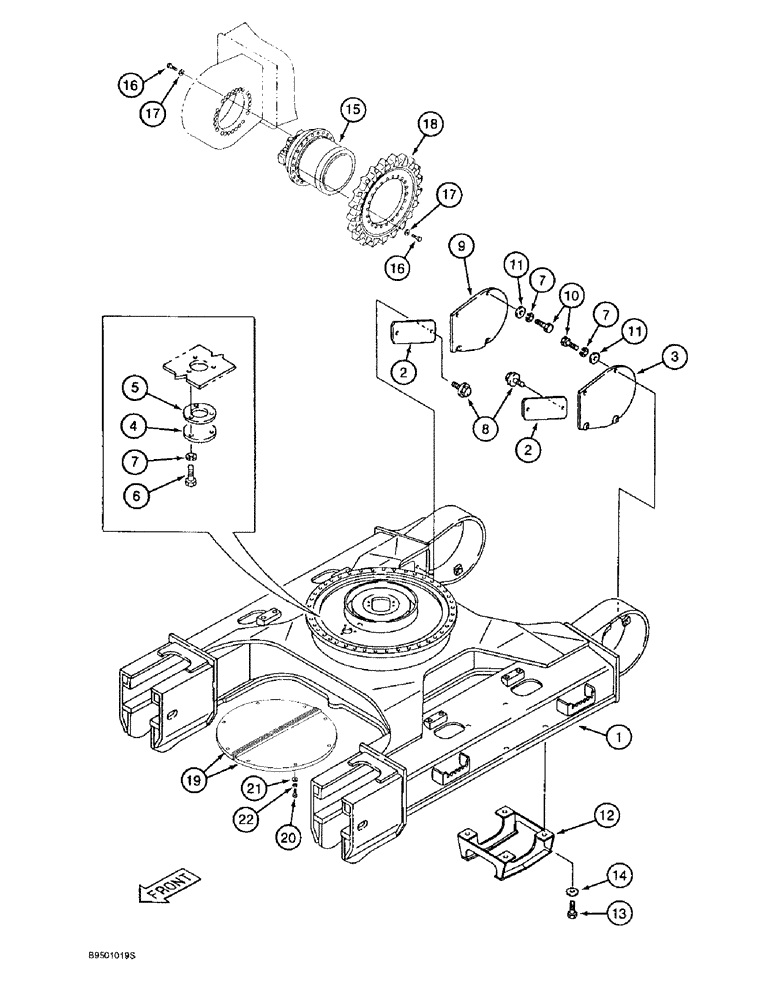

Запчасти Case 9020B (5-002) - TRACK FRAME AND DRIVE SPROCKET (11) - TRACKS/STEERING

1

161504A1

CHASSIS

FRAME - track and undercarriage

1шт.

2

161502A1

COVER

- access, hydraulic lines to track drive motor

2шт.

3

159688A1

COVER

- access, left-hand track drive motor

1шт.

4

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

5

158930A1

CORK SEAL

GASKET - access cover

1шт.

6

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

3шт.

7

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

11шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access covers

4шт.

9

159689A1

COVER

- access, right-hand track drive motor

1шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9, Motor access covers

8шт.

11

150811A1

WASHER

- flat, special, 12 mm

8шт.

12

159687A1

GUIDE

- track

2шт.

13

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Track guides Hex, M16 x 50, 10.9

8шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

8шт.

15

161303A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see parts list Figure 6-2

2шт.

16

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

Hex, M16 x 55, 10.9, Full Thd

94шт.

17

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

94шт.

18

161299A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

19

159683A1

COVER

- access

2шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

21

150811A1

WASHER

- flat, special, 12 mm

8шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.
