(9-122) - DECALS - FRENCH LANGUAGE, OPERATORS COMPARTMENT

Запчасти Case 9020B (9-122) - DECALS - FRENCH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

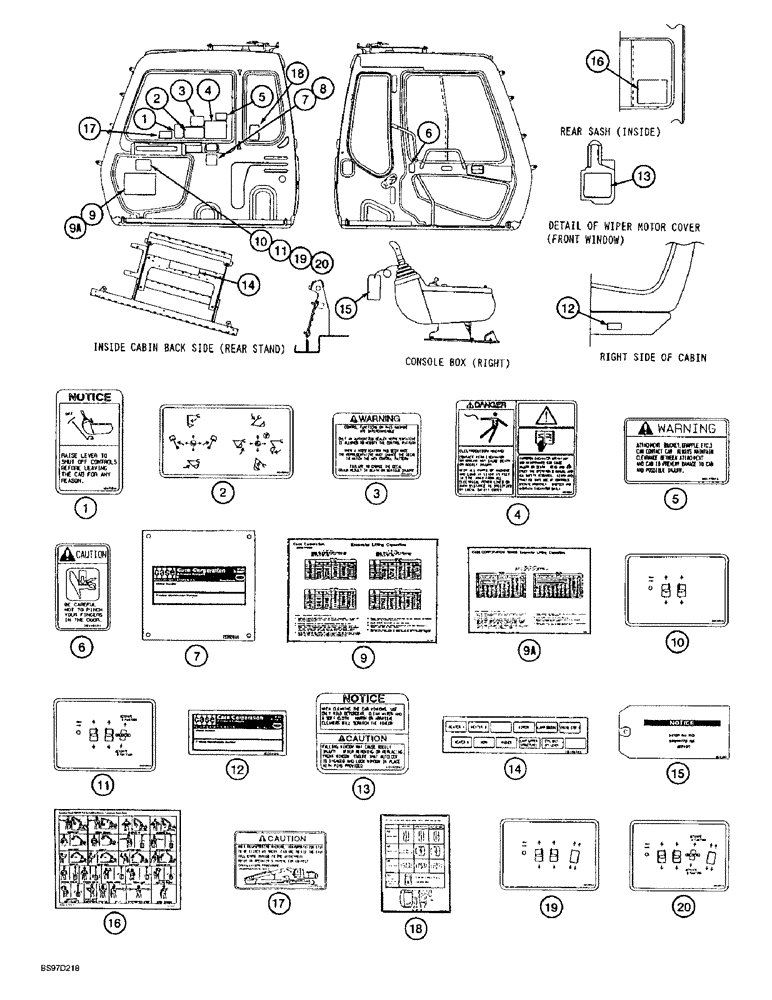

Схема запчастей Case 9020B - (9-122) - DECALS - FRENCH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS
16
1
14
10
17
13
3
1
16
4
14
12
11
6
9
15
8
20
17
4
5
20
2
2
9
13
19
19
7
11
12
6
9a
18
15
10
3
18
7
9a
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

190480A1

DECAL

- Notice, raise lever to shut off controls (French)

1шт.

2

190282A1

DECAL

- optional control pattern

1шт.

3

190630A1

DECAL

- Warning, control functions on this machine are interchangeable (French)

1шт.

4

190501A1

DECAL

- Danger, electrocution hazard (French)

1шт.

5

190481A1

DECAL

- Warning, attachment can contact cab (French)

1шт.

6

190495A1

DECAL

- Caution, be careful not to pinch your fingers (French)

1шт.

7

153928A1

DECAL

PLATE - Product Identification Number, no longer available

1шт.

8

151586A1

RIVET

- blind, name plate

4шт.

9

190861A1

DECAL

- excavator lifting capacities (French), for standard models only

1шт.

10

162185A1

DECAL

- foot pedal controls

1шт.

11

162186A1

DECAL

- foot pedal controls for machines with auxiliary hydraulic equipment

1шт.

12

157995A1

DECAL

PLATE - Product Identification Number, no longer available

1шт.

13

190485A1

DECAL

- Notice, when cleaning the windows/Caution, falling window may cause (French)

1шт.

14

190486A1

DECAL

- relay location (French)

1шт.

15

151937A1

ADHESIVE STRIP

TAG - maintenance

1шт.

16

190347A1

DECAL

- hand signal chart (French)

1шт.
