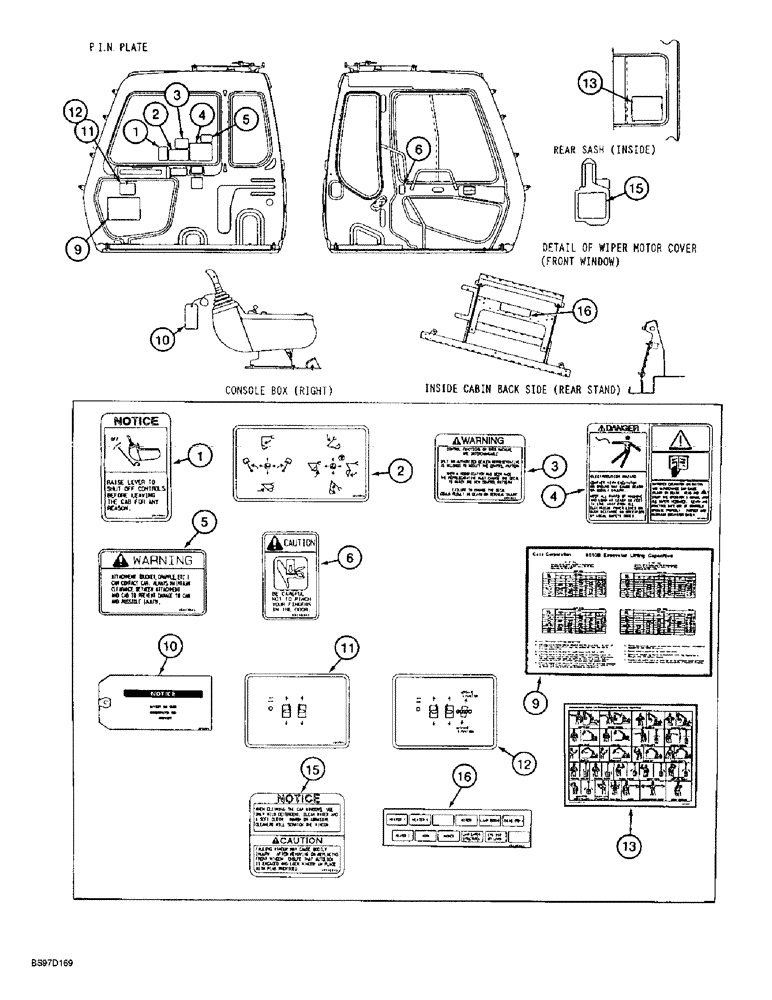

Запчасти Case 9020B (9-116) - DECALS - ENGLISH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

161732A1

DECAL

- Notice, raise lever to shut off controls

1шт.

2

161459A1

DECAL

- control pattern

1шт.

3

162140A1

WARNING DECAL

DECAL - Warning, control functions on this machine are interchangeable

1шт.

4

161469A1

DECAL

- Danger, electrocution hazard

1шт.

5

161470A1

DECAL

- Warning, attachment can contact cab

1шт.

6

161461A1

DECAL

- Caution, be careful not to pinch your fingers

1шт.

9

165152A1

DECAL

- excavator lifting capacities, replaces 161743A1 decal

1шт.

10

151937A1

ADHESIVE STRIP

TAG - maintenance

1шт.

11

162185A1

DECAL

- foot pedal controls

1шт.

12

162186A1

DECAL

- foot pedal controls for machines with auxiliary hydraulic equipment

1шт.

13

162163A1

DECAL

- hand signal chart

1шт.

15

161460A1

DECAL

- Notice, when cleaning the windows/Caution, falling window may cause

1шт.

16

161464A1

DECAL

- right-hand control console

1шт.

18

190315A1

KIT

- optional control pattern, not shown, Includes: Ref. 19

1шт.

19

190282A1

DECAL

- optional control pattern, not shown

1шт.
