Запчасти Case 9020B (9-114) - DECALS - ENGLISH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS

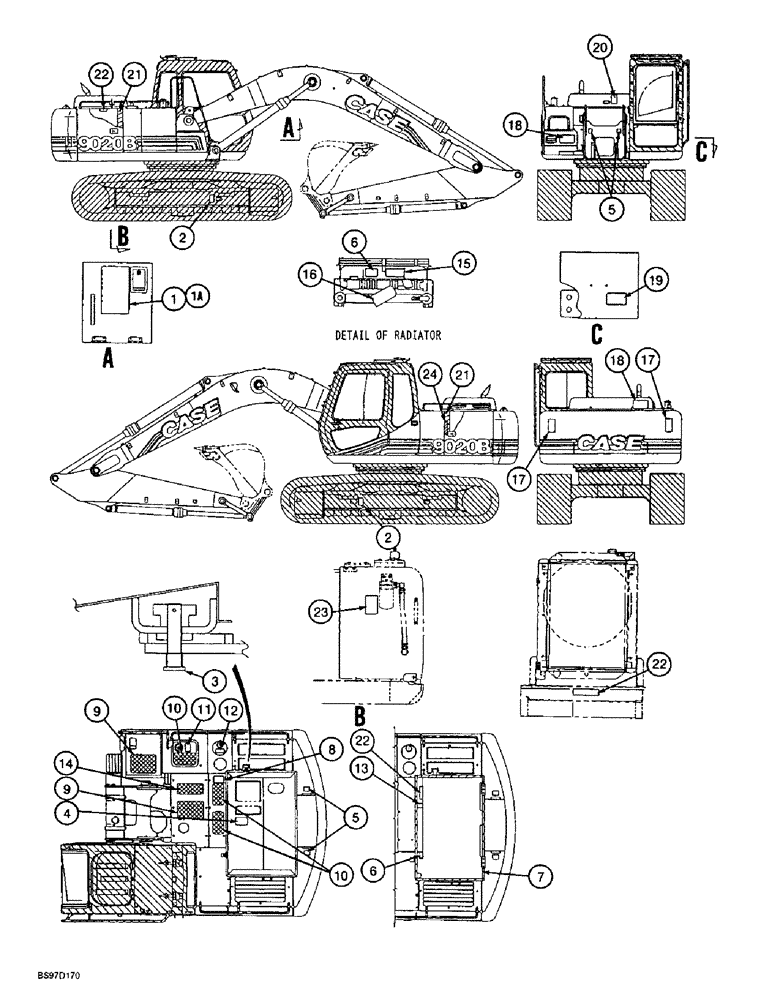

Схема запчастей Case 9020B - (9-114) - DECALS - ENGLISH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS
14
3
21
1
10
9
20
19
22
9
6
17
5
11
23
12
24
21
5
15
2
18
6
22
22
4
1a
2
8
16
10
13
7
18
17

Артикул

Название

Примечание

Количество

1

161746A1

DECAL

- lubrication chart, Serial Range: -DAC02#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

1a

165523A1

DECAL

- lubrication chart, Start Serial: DAC02#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

2

161467A1

DECAL

- Warning, grease under pressure

2шт.

3

162934A1

LARGE PLATE

PLATE - with adhesive backing, goes on button to release hood support

1шт.

4

161730A1

DECAL

- Warning, slippery and unstable surface, on top of fuel tank

1шт.

5

321-3587

DECAL

- lift only

4шт.

6

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

7

163315A1

TAPE

- special, 4250 mm (167-5/16 inch)

1шт.

8

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

9

162935A1

ANTI-SKID STRIP

TAPE - non-skid

2шт.

10

150108A1

ANTI-SKID STRIP

STRIP - adhesive, anti-skid, on top of fuel tank

3шт.

11

161463A1

DECAL

- gas pump

1шт.

12

161731A1

DECAL

- Caution, hot hydraulic fluid

1шт.

13

321-6872

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

14

162936A1

ADHESIVE STRIP

TAPE - non-skid

1шт.

15

321-6672

DECAL

- Warning, check and service cooling system

1шт.

16

151796A1

ADHESIVE STRIP

TAG - antifreeze notice

1шт.

17

151880A1

DECAL

- Danger, keep clear of swinging upper

2шт.

18

161734A1

WARNING DECAL

DECAL - Warning, stay away from machine

2шт.

19

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

20

161465A1

DECAL

- Warning, falling engine hood

1шт.

21

162939A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

2шт.

22

162142A1

DECAL

- Warning, hot surfaces

3шт.

23

161733A1

DECAL

- to check oil level

1шт.

24

162947A1

ADHESIVE

TAPE - special, 420 mm (16-11/32 inch) long

1шт.

Выбрано товаров: 27
