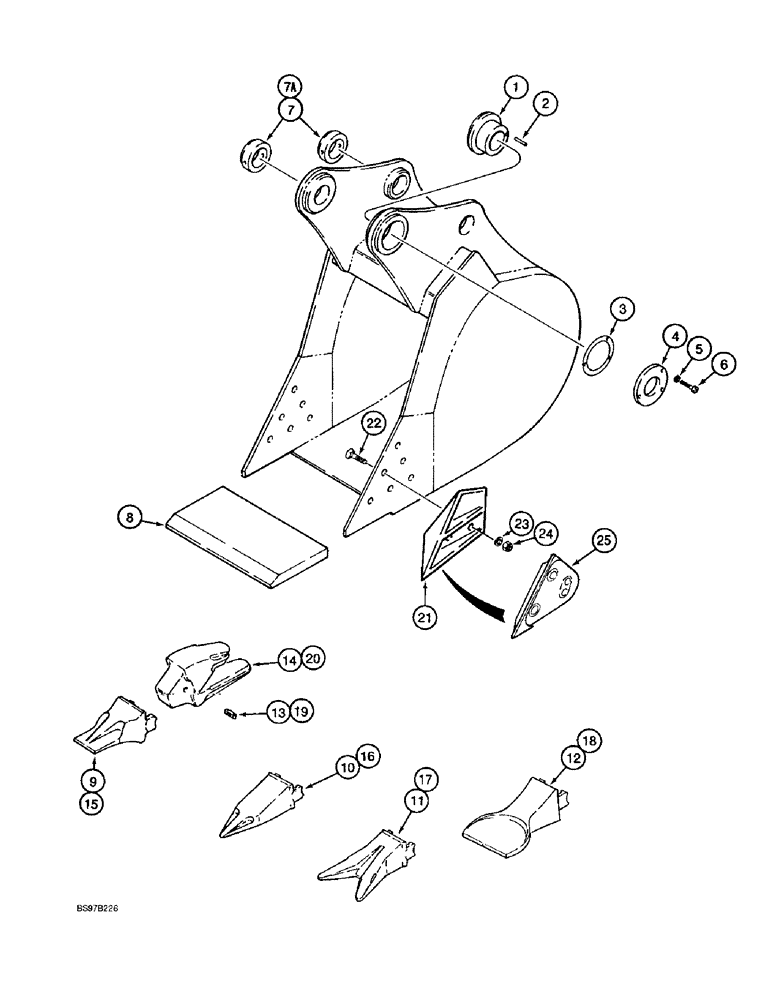

Запчасти Case 9020B (9-108) - MCF BUCKETS, GENL PURP & HVY DTY,CENTR CUTT EDGES-GENL PURP BUCKTS,CENTR CUTT EDGES-HVY DTY BUCKETS (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 620 mm (24 inch), with 4 teeth, 0.55 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.65 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.92 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 6 teeth, 1.05 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.31 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 620 mm (24 inch), with 4 teeth, 0.55 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.65 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.92 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 6 teeth, 1.05 cu. yd.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.31 cu. yd., Includes: Ref. 1 - 7

1шт.

1

233819A1

BUSHING

- adjustable

1шт.

2

233822A1

PIN

- dowel, special

1шт.

3

233820A1

SHIM

- adjustable bushing

6шт.

4

233821A1

COVER

PLATE - cover, adjustable bushing

1шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

6

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

4шт.

7

233818A1

COLLAR

BUSHING - bucket, with locking collar

2шт.

8

257025A1

EDGE

- cutting, center, 620 mm (24 inch) bucket, center cutting edges - general purpose buckets

1шт.

8

257026A1

EDGE

- cutting, center, 762 mm (30 inch) bucket, center cutting edges - general purpose buckets

1шт.

8

257027A1

EDGE

- cutting, center, 914 mm (36 inch) bucket, center cutting edges - general purpose buckets

1шт.

8

257028A1

EDGE

- cutting, center, 1067 mm (42 inch) bucket, center cutting edges - general purpose buckets

1шт.

8

257029A1

EDGE

- cutting, center, 1219 mm (48 inch) bucket, center cutting edges - general purpose buckets

1шт.

8

257030A1

EDGE

- cutting, center, 620 mm (24 inch) bucket, center cutting edges - heavy duty buckets

1шт.

8

257031A1

EDGE

- cutting, center, 762 mm (30 inch) bucket, center cutting edges - heavy duty buckets

1шт.

8

257032A1

EDGE

- cutting, center, 914 mm (36 inch) bucket, center cutting edges - heavy duty buckets

1шт.

8

257033A1

EDGE

- cutting, center, 1067 mm (42 inch) bucket, center cutting edges - heavy duty buckets

1шт.

8

257034A1

EDGE

- cutting, center, 1219 mm (48 inch) bucket, center cutting edges - heavy duty buckets

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY

1шт.

9

127558A1

BUCKET TOOTH

TOOTH - standard, teeth and adapter - general purpose buckets

1шт.

10

241814A1

BUCKET TOOTH

TOOTH - tiger point, teeth and adapter - general purpose buckets

1шт.

11

241813A1

TOOTH

- twin tiger point, teeth and adapter - general purpose buckets

1шт.

12

241812A1

TOOTH

- spade point, 127 mm (5 inch) wide, teeth and adapter - general purpose buckets

1шт.

13

233792A1

BUCKET TOOTH KEY

PIN - tooth to shank, teeth and adapter - general purpose buckets

1шт.

14

127557A1

ADAPTER

SHANK - tooth, teeth and adapter - general purpose buckets

1шт.

15

233794A1

BUCKET TOOTH

TOOTH - standard point, teeth and adapter - heavy duty buckets

1шт.

16

241817A1

TOOTH

- tiger point, teeth and adapter - heavy duty buckets

1шт.

17

241816A1

TOOTH

- twin tiger point, teeth and adapter - heavy duty buckets

1шт.

18

241815A1

TOOTH

- spade point, 152 mm (6 inch) wide, teeth and adapter - heavy duty buckets

1шт.

19

233795A1

BUCKET TOOTH KEY

PIN - tooth to shank, teeth and adapter - heay duty buckets

1шт.

20

233793A1

ADAPTER

SHANK - tooth, teeth and adapter - heavy duty buckets

1шт.

21

241820A1

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side, 38.1 mm (1-1/2 inch) thick, side cutting edges and wear shroud

1шт.

21

242797A1

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side, 38.1 mm (1-1/2 inch) thick, side cutting edges and wear shroud

1шт.

21

244960A1

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side, 50.8 mm (2 inch) thick, side cutting edges and wear shroud

1шт.

21

244958A1

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side, 50.8 mm (2 inch) thick, side cutting edges and wear shroud

1шт.

22

320-21456

CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3-1/2 inch, grade 8, side cutting edges and wear shroud

6шт.

23

392-21088

LOCK WASHER,7/8"

side cutting edges and wear shroud 7/8"

6шт.

24

329-1014

NUT,7/8"-9, G8

Side cutting edges and wear shroud 7/8"-9, G8

6шт.

25

244961A1

SHROUD

- wear, bucket, side cutting edges and wear shroud

2шт.
