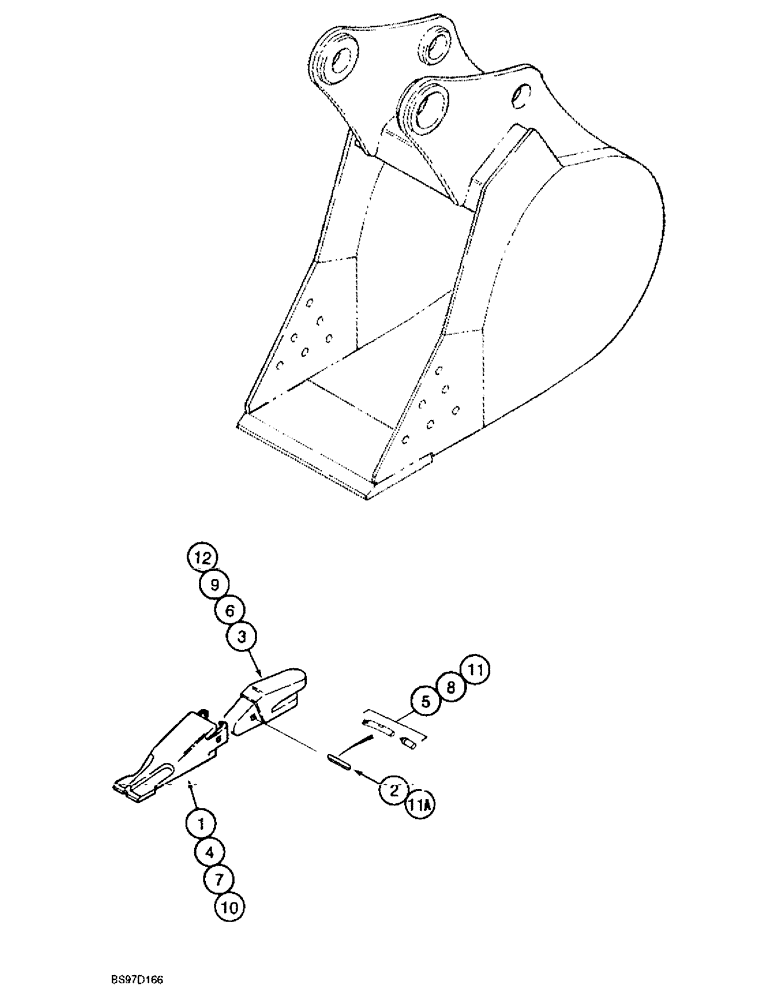

Запчасти Case 9020B (9-106) - ESCO BUCKET TOOTH OPTIONS- *SEE ***NOTE 2*** (09) - CHASSIS

1

127558A1

BUCKET TOOTH

TOOTH - standard, optional

1шт.

2

176555A1

LOCK

PIN - tooth lock, Serial Range: tooth-shank

1шт.

3

127557A1

ADAPTER

SHANK - tooth, also called an adapter

1шт.

4

127560A1

TOOTH

- chisel point, optional, with 1-1/4 inch lip tooth shank

1шт.

5

127561A1

LOCK

- tooth to shank, includes pin and plug, with 1-1/4 inch lip tooth shank

1шт.

6

127559A1

ADAPTER

SHANK - tooth, also called an adapter, with 1-1/4 inch lip tooth shank

1шт.

7

127560A1

TOOTH

- chisel point, optional, with 1-1/2 inch lip tooth shank

1шт.

8

127561A1

LOCK

- tooth to shank, includes pin and plug, with 1-1/2 inch lip tooth shank

1шт.

9

127562A1

ADAPTER

SHANK - tooth, 1-1/2 inch, also called an adapter, with 1-1/2 inch lip tooth shank

1шт.

10

127560A1

TOOTH

- chisel point, optional, with 1-1/2 inch lip tooth shank

1шт.

11

127561A1

LOCK

- tooth to shank, includes pin and plug, with 1-1/2 inch lip tooth shank

1шт.

11a

176552A1

PIN

- steel, point to shank, with 1-1/2 inch lip tooth shank

1шт.

12

127563A1

ADAPTER

SHANK - tooth, 1-1/2 inch, also called an adapter, with 1-1/2 inch lip tooth shank

1шт.
