(9-104) - HENSLEY BUCKET TOOTH OPTION - *SEE ***NOTE 2***

Запчасти Case 9020B (9-104) - HENSLEY BUCKET TOOTH OPTION - *SEE ***NOTE 2*** (09) - CHASSIS

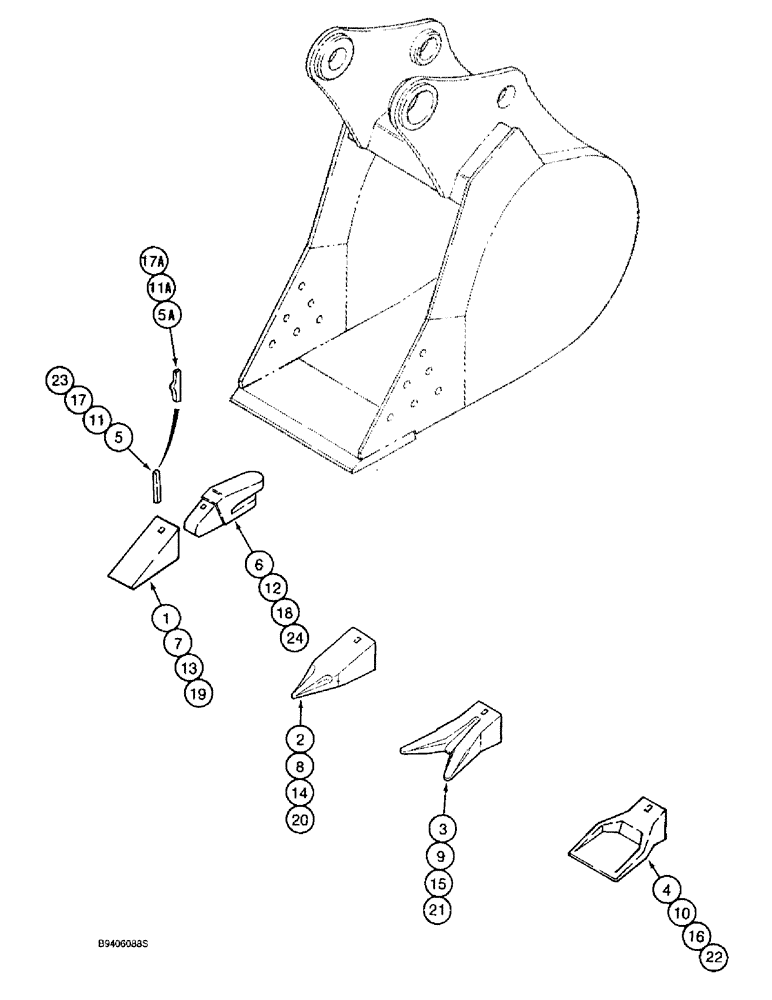

Схема запчастей Case 9020B - (9-104) - HENSLEY BUCKET TOOTH OPTION - *SEE ***NOTE 2*** (09) - CHASSIS
20
16
24
4
5
2
11a
1
3
11
13
17a
17
12
5a
9
15
22
6
23
19
21
8
10
18
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

122668A1

TOOTH

- standard

1шт.

2

126914A1

TOOTH

- tiger, optional

1шт.

3

126925A1

TOOTH

- twin tiger, optional

1шт.

4

126928A1

TOOTH

- flared, optional

1шт.

5

122669A1

FASTENER

PIN - flex, tooth to shank, standard

1шт.

5a

176552A1

PIN

- steel, tooth to shank (Replaces 176554A1)

1шт.

6

122667A1

BUCKET TOOTH SHANK

SHANK - tooth, standard (also called an adapter)

1шт.

122667A1 IS STAMPED HENSLEY 109 x 220. IF SHANK IS STAMPED 127 x 290, IS 126932A1, IF 158 x 290, IS 122670A1.

1шт.

7

122668A1

TOOTH

- standard, with 1-1/4 inch lip tooth shank

1шт.

8

126934A1

TOOTH

- tiger point, optional, with 1-1/4 inch lip tooth shank

1шт.

9

126936A1

TOOTH

- twin tiger point, optional, with 1-1/4 inch lip tooth shank

1шт.

10

126939A1

TOOTH

- flared point, optional, with 1-1/4 inch lip tooth shank

1шт.

11

122669A1

FASTENER

PIN - flex, tooth to shank, standard, with 1-1/4 inch lip tooth shank

1шт.

11a

176552A1

PIN

- steel, tooth to shank (Replaces 176554A1), with 1-1/4 inch lip tooth shank

1шт.

12

126932A1

ADAPTER

SHANK - tooth, optional (also called an adapter), with 1-1/4 inch lip tooth shank

1шт.

13

122668A1

TOOTH

- standard, with 1-1/2 inch lip tooth shank

1шт.

14

126934A1

TOOTH

- tiger point, optional, with 1-1/2 inch lip tooth shank

1шт.

15

126936A1

TOOTH

- twin tiger point, optional, with 1-1/2 inch lip tooth shank

1шт.

16

126939A1

TOOTH

- flared point, optional, with 1-1/2 inch lip tooth shank

1шт.

17

122669A1

FASTENER

PIN - flex, tooth to shank, standard, with 1-1/2 inch lip tooth shank

1шт.

17a

176552A1

PIN

- steel, tooth to shank (Replaces 176554A1), with 1-1/2 inch lip tooth shank

1шт.

18

122670A1

ADAPTER

SHANK - tooth, 1-1/2 inch, optional (also called an adapter), with 1-1/2 inch lip tooth shank

1шт.

19

122668A1

TOOTH

- standard, with 1-1/2 inch lip tooth shank

1шт.

20

126943A1

TOOTH

- tiger point, optional, with 1-1/2 inch lip tooth shank

1шт.

21

126946A1

TOOTH

- twin tiger point, optional, with 1-1/2 inch lip tooth shank

1шт.

22

127220A1

TOOTH

- flared point, optional, with 1-1/2 inch lip tooth shank

1шт.

23

122669A1

FASTENER

PIN - flex, tooth to shank, standard, with 1-1/2 inch lip tooth shank

1шт.

23

176554A1

PIN

- steel, tooth to shank, with 1-1/2 inch lip tooth shank

1шт.

24

122676A1

BUCKET TOOTH SHANK

SHANK - tooth, 1-1/2 inch, optional (also called an adapter), with 1-1/2 inch lip tooth shank

1шт.
