Запчасти Case 9020B (9-098) - H & H BUCKETS, GENERAL PURPOSE AND HEAVY DUTY - STANDARD AND HIGH CAPACITY (09) - CHASSIS

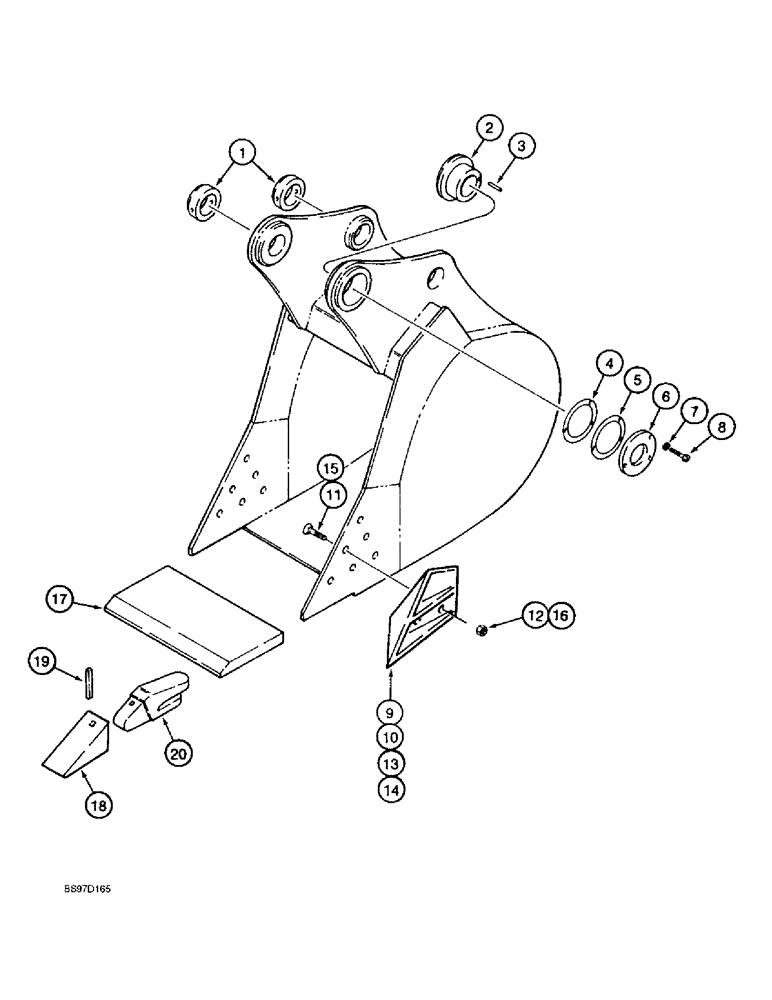

Схема запчастей Case 9020B - (9-098) - H & H BUCKETS, GENERAL PURPOSE AND HEAVY DUTY - STANDARD AND HIGH CAPACITY (09) - CHASSIS
19
13
8
10
1
11
17
12
9
5
2
6
16
20
7
18
3
15
4
14

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.56 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.65 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.82 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 0.99 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.59 cu. yd., bucket assembly - general purpose - high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.75 cu. yd., bucket assembly - general purpose - high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.94 cu. yd., bucket assembly - general purpose - high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.14 cu. yd., bucket assembly - general purpose - high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 3 teeth, 0.56 cu. yd., bucket assembly - heavy duty - standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.75 cu. yd., bucket assembly - heavy duty - standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 0.94 cu. yd., bucket assembly - heavy duty - standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.00 cu. yd., bucket assembly - heavy duty - high capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125665A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

125659A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN - dowel, special

2шт.

4

125660A1

SHIM

- plate mounting, 0.02 inch thick

1шт.

5

125661A1

SHIM

- plate mounting, 0.039 inch thick

1шт.

6

125663A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

112985A1

EDGE, CUTTING

KIT - side cutter blade, 3 inch, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

BLADE - sidecutter, 3 inch

1шт.

10

NSS

NOT SOLD SEPARAT

BLADE - side cutter, 3 inch

1шт.

11

320-21440

CARRIAGE BOLT,#3, 7/8" - 9 x 2 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 2-1/2 inch, grade 8

10шт.

12

232-41314

LOCK NUT,7/8"-9, GC

NUT, LOCK, 7/8"-9, GC

10шт.

112732A1

KIT

- side cutter blade, 4 inch, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BLADE - side cutter, 4 inch

1шт.

14

NSS

NOT SOLD SEPARAT

BLADE - side cutter, 4 inch

1шт.

15

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8

10шт.

16

232-41314

LOCK NUT,7/8"-9, GC

NUT, LOCK, 7/8"-9, GC

10шт.

17

125711A1

PLATE

EDGE - cutting, 29 (1-1/4) x 610 mm (24 inch) bucket, cutting edges - general purpose

1шт.

17

125712A1

PLATE

EDGE - cutting, 29 (1-1/4) x 762 mm (30 inch) bucket, cutting edges - general purpose

1шт.

17

125713A1

PLATE

EDGE - cutting, 29 (1-1/4) x 914 mm (36 inch) bucket, cutting edges - general purpose

1шт.

17

125714A1

PLATE

EDGE - cutting, reversible, 29 (1-1/4) x 1067 mm (42 inch) bucket, cutting edges - general purpose

1шт.

17

125715A1

EDGE

- cutting, center, 610 mm (24 inch) bucket, cutting edges - heavy duty

1шт.

17

125716A1

EDGE

- cutting, center, 762 mm (30 inch) bucket, cutting edges - heavy duty

1шт.

17

125717A1

EDGE

- cutting, center, 914 mm (36 inch) bucket, cutting edges - heavy duty

1шт.

17

125780A1

EDGE

- cutting, center, 1067 mm (42 inch) bucket, cutting edges - heavy duty

1шт.

18

122668A1

TOOTH

- standard

1шт.

See Figures 9-094, 9-104, 9-106, and 9-110 for point, pin and shank options.

1шт.

19

122669A1

FASTENER

PIN - flex, Serial Range: tooth-shank

1шт.

See Figures 9-094, 9-104, 9-106, and 9-110 for point, pin and shank options.

1шт.

20

122667A1

BUCKET TOOTH SHANK

SHANK - tooth, also called an adapter

1шт.

122667A1 IS STAMPED HENSLEY 109 x 220. IF SHANK IS STAMPED 127 x 290, IS 126932A1, IF 158 x 290, IS 122670A1.

1шт.

See Figures 9-094, 9-104, 9-106, and 9-110 for point, pin and shank options.

1шт.

21

112731A1

CATALOG

RIPPER - frost, with one tooth, not shown

1шт.

Frost ripper tooth art and parts list information to be provided at a later date.

1шт.
