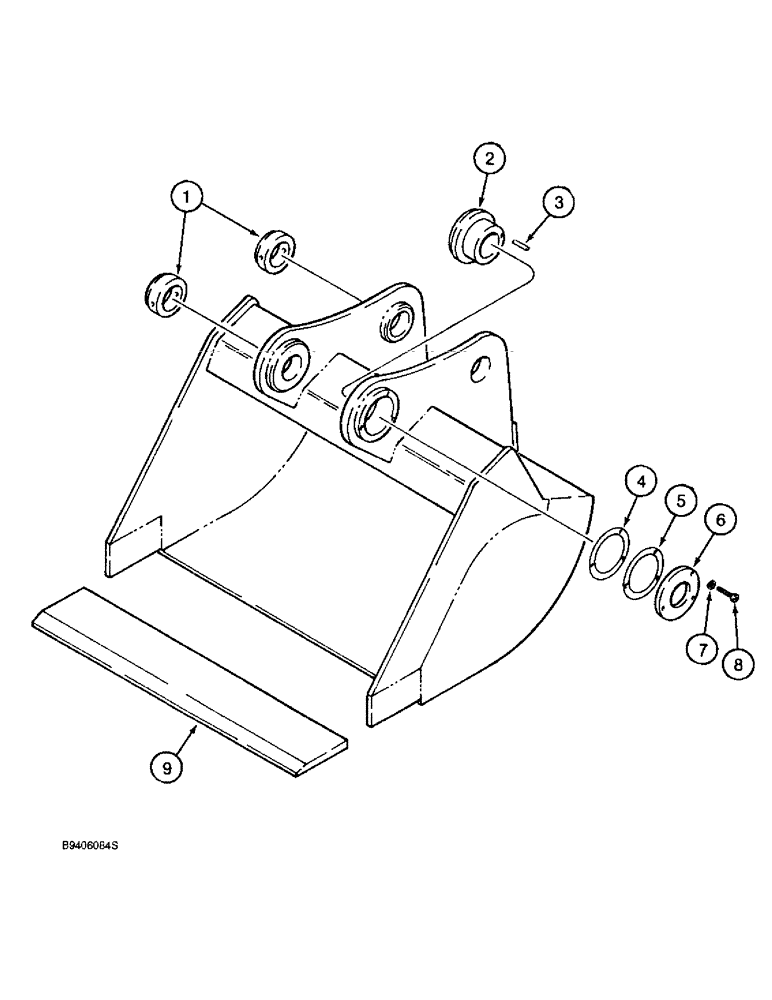

Запчасти Case 9020B (9-096) - CENTRAL FABRICATORS BUCKETS, DITCH, DITCH BUCKET ASSEMBLY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - 1220 mm (48 inch), 0.67 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 1524 mm (60 inch), 0.90 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122705A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

122701A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

1шт.

4

122702A1

SHIM

- plate mounting, 0.039 inch thick

1шт.

5

122703A1

SHIM

- plate mounting, 0.02 inch thick

1шт.

6

122704A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch

3шт.

9

125034A1

PLATE

EDGE - cutting, center, 1219 mm (48 inch) bucket

1шт.

9

125035A1

PLATE

EDGE - cutting, center, 1524 mm (60 inch) bucket

1шт.
