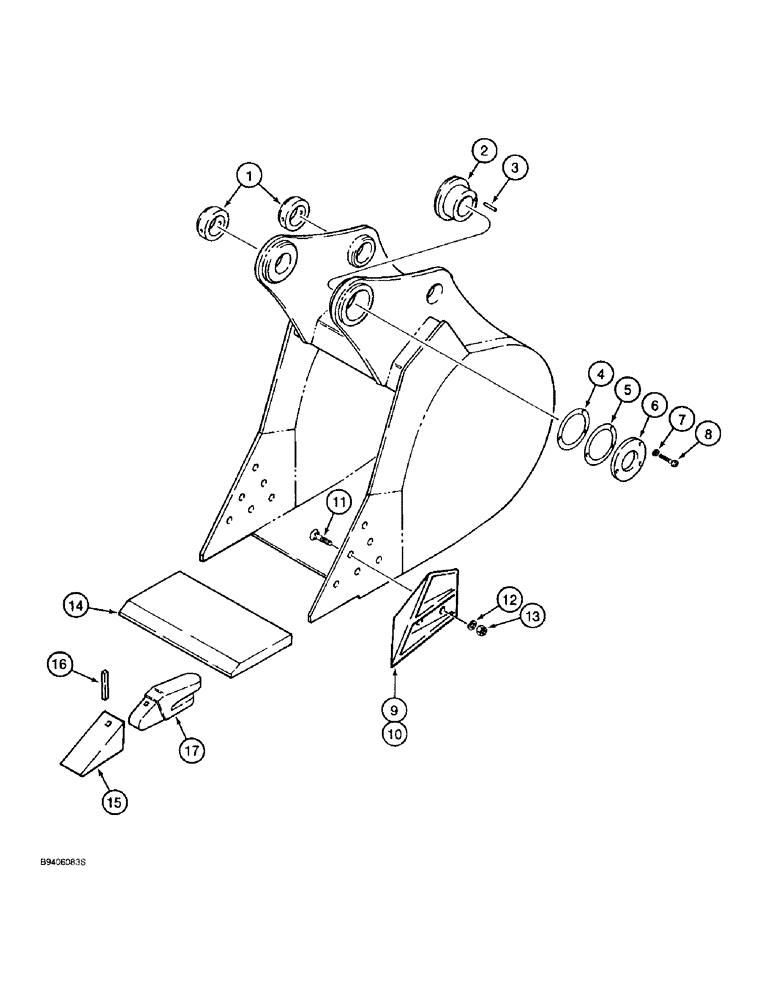

Запчасти Case 9020B (9-094) - CENTRAL FABRICATORS BUCKETS, GENERAL PURPOSE AND HEAVY DUTY - STANDARD AND HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.50 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.64 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.78 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 6 teeth, 0.92 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.59 cu. yd., bucket assembly - general purpose - high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.77 cu. yd., bucket assembly - general purpose - high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.95 cu. yd., bucket assembly - general purpose - high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.12 cu. yd., bucket assembly - general purpose - high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.50 cu. yd., bucket assembly - heavy duty - standard capacity, Includes: Ref. 1 - 13

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.64 cu. yd., bucket assembly - heavy duty - standard capacity, Includes: Ref. 1 - 13

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.78 cu. yd., bucket assembly - heavy duty - standard capacity, Includes: Ref. 1 - 13

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122705A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

122701A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

1шт.

4

122702A1

SHIM

- plate mounting, 0.039 inch thick

1шт.

5

122703A1

SHIM

- plate mounting, 0.02 inch thick

1шт.

6

122704A1

RETAINER

PLATE - bushing (Replaces 122699A1), 3.6 ID and 7.00/7.25 OD

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8

12шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

12шт.

13

329-1014

NUT,7/8"-9, G8

12шт.

14

125015A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 610 mm (24 inch) bucket

1шт.

14

125016A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 762 mm (30 inch) bucket

1шт.

14

125017A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 914 mm (36 inch) bucket

1шт.

14

125018A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 1067 mm (42 inch) bucket

1шт.

15

122668A1

TOOTH

- standard

1шт.

See Figures 9-100, 9-104, 9-106, and 9-110 for point, pin and shank options.

1шт.

16

122669A1

FASTENER

PIN - flex, Serial Range: tooth-shank

1шт.

See Figures 9-100, 9-104, 9-106, and 9-110 for point, pin and shank options.

1шт.

17

122667A1

BUCKET TOOTH SHANK

SHANK - tooth, also called an adapter

1шт.

122667A1 IS STAMPED HENSLEY 109 x 220. IF SHANK IS STAMPED 127 x 290, IS 126932A1, IF 158 x 290, IS 122670A1.

1шт.

See Figures 9-100, 9-104, 9-106, and 9-110 for point, pin and shank options.

1шт.

112119A1

24" GP, std cap, per machinery price list

1шт.

112120A1

30" GP, std cap, per machinery price list

1шт.

112121A1

36" GP, std cap, per machinery price list

1шт.

112122A1

42" GP, std cap, per machinery price list

1шт.

112124A1

24" GP, high cap, per machinery price list

1шт.

112125A1

30" GP, high cap, per machinery price list

1шт.

112126A1

36" GP, high cap, per machinery price list

1шт.

112127A1

42" GP, high cap, per machinery price list

1шт.

112128A1

24" HD, std cap, per machinery price list

1шт.

112129A1

30" HD, std cap, per machinery price list

1шт.

112130A1

BUCKET

36" HD, std cap, per machinery price list

1шт.
