Запчасти Case 9020B (2-022) - RADIATOR ASSEMBLY, PRIOR TO P.I.N. DAC0202001 (02) - ENGINE

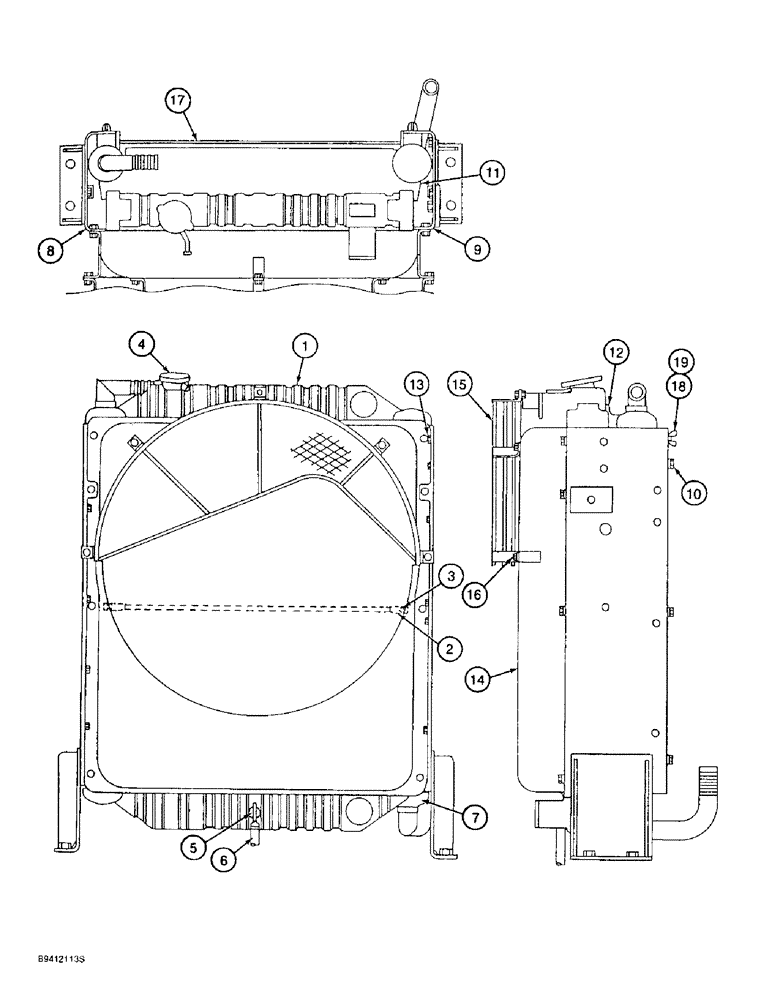

Схема запчастей Case 9020B - (2-022) - RADIATOR ASSEMBLY, PRIOR TO P.I.N. DAC0202001 (02) - ENGINE
6
19
4
11
7
1
14
13
9
8
16
2
3
17
15
5
18
12
10

Артикул

Название

Примечание

Количество

161073A1

RADIATOR

ASSEMBLY - water and hydraulic oil cooling, Includes: Ref. 1 - 19

1шт.

1

156438A1

RADIATOR

CORE - engine cooling

1шт.

2

156598A1

ROD

- radiator brace

1шт.

3

161915A1

BOLT,Sems

BOLT - special, with washer

2шт.

4

156685A1

CAP

- radiator

1шт.

5

156686A1

BREATHER ASSY.

ADAPTER - coolant drain hose

1шт.

6

156687A1

HOSE

- 300 mm (11-13/16 inch) long

1шт.

7

161898A1

COOLER, OIL

COOLER - hydraulic oil

1шт.

8

161899A1

BRACKET

- radiator, side

1шт.

9

161900A1

BRACKET

- radiator, side

1шт.

10

161901A1

BOLT,Sems

BOLT - special, with washer

6шт.

11

156706A1

COVER

- side

2шт.

12

156702A1

PACKING

PAD - insulation

2шт.

13

161917A1

BOLT,Sems

BOLT - special, with washer

8шт.

14

156443A1

SHROUD

- radiator

1шт.

15

161876A1

GUARD ASSY.

GUARD - fan, machines without air conditioning compressor

1шт.

16

161916A1

BOLT,Sems

BOLT - special, with washer

5шт.

17

150224A1

GRILLE

SCREEN - radiator, special

1шт.

18

156606A1

BOLT,Wing, M6

BOLT - special, wing-type, Replaces 156690A1

2шт.

19

161920A1

WASHER

- special

2шт.

Выбрано товаров: 20
