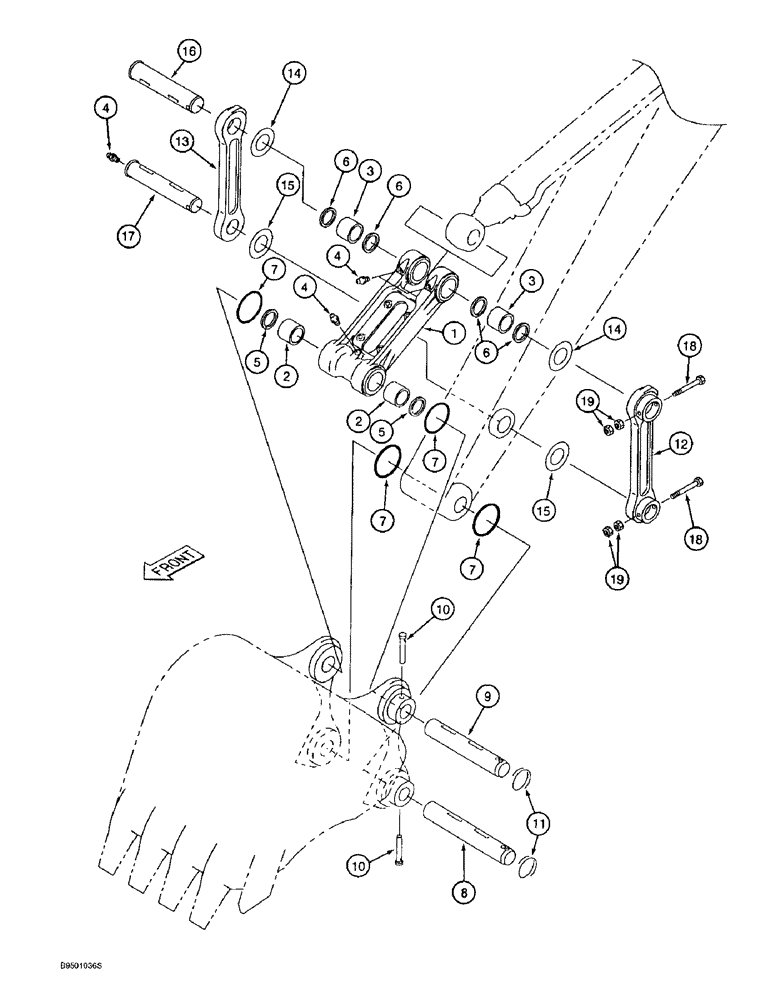

Запчасти Case 9020B (9-088) - LINKAGE FOR LONG ARM, 3.05 M (10 FT 1IN) ARM (09) - CHASSIS

1

164440A1

POWER ARM

LINK ASSEMBLY - bucket, replaces 161315A1 link assembly, Includes: Ref. 2 and 3

1шт.

2

150264A1

BUSHING,80mm ID x 95mm OD x 65mm L

- link, bucket end

2шт.

3

150123A1

BUSHING,70mm ID x 85mm OD x 70mm L

- link, cylinder end

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

5

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

- dust

2шт.

6

161295A1

SEAL,70mm ID x 85mm OD x 5mm Thk

- dust

4шт.

7

160402A1

O-RING

- grease seal

4шт.

8

157149A1

PIN

- attaching, Serial Range: bucket-boom

1шт.

9

157148A1

PIN

- attaching, bucket to link assembly

1шт.

10

153748A1

PIN,20mm OD x 125mm L

- special

2шт.

11

153749A1

RING

- wire, bucket pins

2шт.

12

163463A1

LINK

- arm, left-hand, left-hand, bucket, replaces 150057A1 link

1шт.

13

163462A1

LINK

- arm, right-hand, right-hand, bucket, replaces 150053A1 link

1шт.

14

150502A1

SHIM,71mm ID x 135mm OD x 1.2mm Thk

- plate, 0.05 inch thick

2шт.

15

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

- plate, 0.05 inch thick

2шт.

16

150082A1

PIN

- attaching, bucket link assembly to cylinder and right-hand and left-hand links

1шт.

17

150084A1

PIN

- attaching, right-hand and left-hand, Serial Range: links-boom

1шт.

18

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

19

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

4шт.
