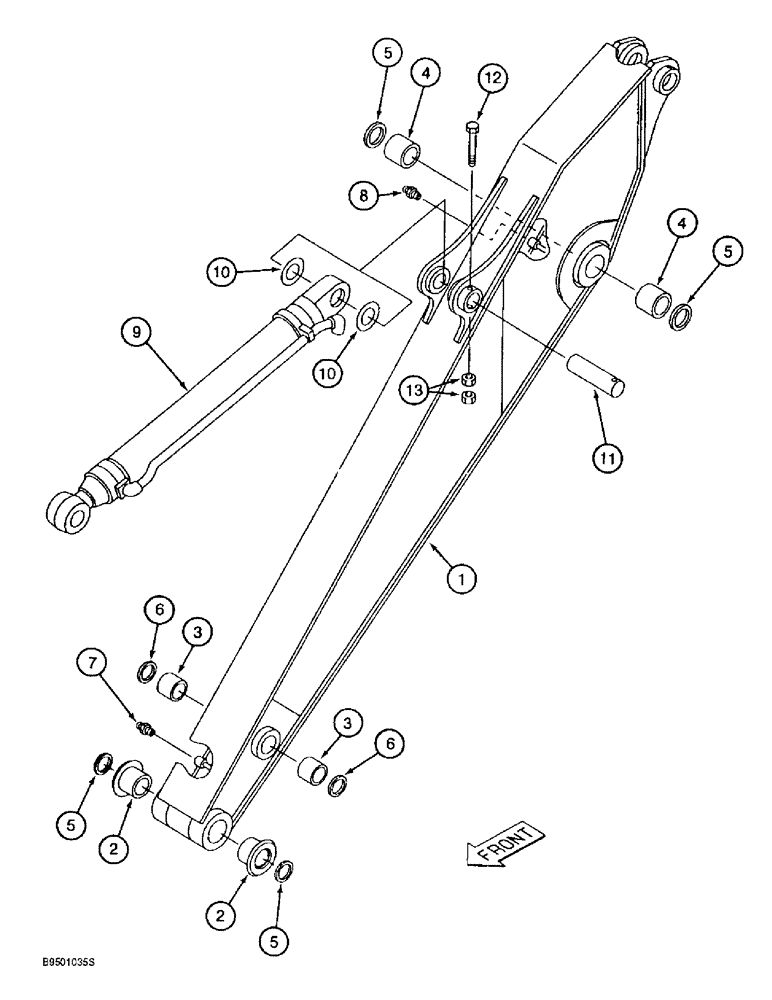

Запчасти Case 9020B (9-086) - LONG ARM AND CYLINDER, 3.05 M (10 FT 1 IN) ARM (09) - CHASSIS

1

165139A1

DIPPER

ARM ASSEMBLY - excavator, long, 3.05 M (10 ft 1 inch), replaces 161717A1 arm assembly

1шт.

2

163482A1

BUSHING,80mm ID x 132mm OD x 80mm L

- steel, special, attaching pin

2шт.

3

163483A1

BUSHING,65mm ID x 80mm OD x 55mm L

- steel, special

2шт.

4

163472A1

BUSHING,80mm ID x 95mm OD x 80mm L

- steel, special, steel, special

2шт.

5

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

- dust

4шт.

6

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

- dust

2шт.

7

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

8

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

1шт.

9

161308A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 105 (4-9/64) ID x 997 mm (39-1/8 inch) stroke, bucket, parts list Figures 8-148 and 8-150

1шт.

10

150142A1

SHIM KIT

SHIM - plate, .05 inch thick, bucket cylinder mounting

2шт.

11

161642A1

PIN

- attaching, bucket cylinder closed end

1шт.

12

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

1шт.

13

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

2шт.
