(9-084) - BOOM, MOUNTING PINS AND CYLINDERS

Запчасти Case 9020B (9-084) - BOOM, MOUNTING PINS AND CYLINDERS (09) - CHASSIS

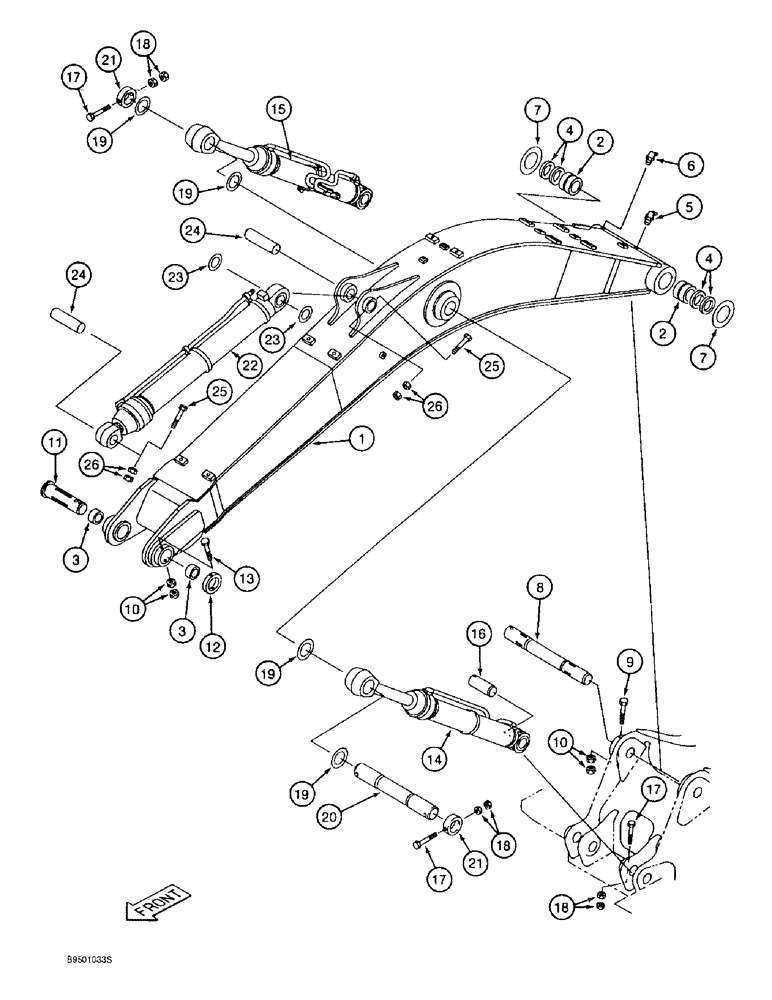

Схема запчастей Case 9020B - (9-084) - BOOM, MOUNTING PINS AND CYLINDERS (09) - CHASSIS
6
19
21
3
20
17
3
14
8
21
25
19
25
26
7
12
15
19
1
24
10
26
17
18
4
4
23
22
11
2
5
16
18
7
2
13
23
18
19
24
17
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

165132A1

BOOM

ASSEMBLY - excavator, 4.875 M (16 ft 11 inch), replaces 161631A1 boom excavator, Includes: Ref. 2 and 3

1шт.

2

163472A1

BUSHING,80mm ID x 95mm OD x 80mm L

- steel, special, turntable end

2шт.

3

150131A1

BUSHING

- arm end

2шт.

4

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

- dust

4шт.

5

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

6

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

1шт.

7

150145A1

SHIM

- plate, 0.05 inch, boom

2шт.

8

150110A1

PIN

- attaching, Serial Range: boom-turntable

1шт.

9

514-1405

BOLT,Hex, M24 x 2 x 170mm, Cl 10.9

- hex, 24 - 2.0 x 170 mm, class 10.9

1шт.

10

829-13424

NUT,M24 x 2, Cl 10

- hex, 24 mm - 2.0, class 10

4шт.

11

150092A1

PIN

- attaching, Serial Range: boom-arm

1шт.

12

150134A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

13

514-1403

BOLT,Hex, M24 x 2 x 180mm, Cl 10.9

- hex, 24 - 2.0 x 180 mm, class 10.9

1шт.

14

161305A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1184 mm (46-5/8 inch) stroke, boom, left-hand, parts list Figures 8-132 and 8-134

1шт.

15

161306A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1184 mm (46-5/8 inch) stroke, boom, right-hand, parts list Figures 8-132 and 8-134

1шт.

16

163473A1

PIN,70mm OD x 243mm L

- attaching, boom cylinders at turntable

2шт.

17

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

18

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

8шт.

19

161294A1

SHIM

- plate, 1.27 mm (0.05 inch) thick, boom cylinder rod end

4шт.

20

150098A1

PIN

- attaching, boom, Serial Range: cylinder-boom

1шт.

21

150138A1

COLLAR

- pin retaining

2шт.

22

161307A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 125 (4-7/8) ID x 1335 mm (52-9/16 inch) stroke, arm, parts list Figures 8-140 and 8-142

1шт.

23

160452A1

SHIM

- 1.27 mm (0.05 inch) thick, bucket cylinder closed end

2шт.

24

161633A1

PIN

- attaching, arm cylinder, both ends

2шт.

25

514-1223

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

BOLT - hex, 20 - 1.5 x 150 mm, class 10.9

2шт.

26

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10

4шт.
