Запчасти Case 9020B (9-082) - BOOM LUBRICATION LINES (09) - CHASSIS

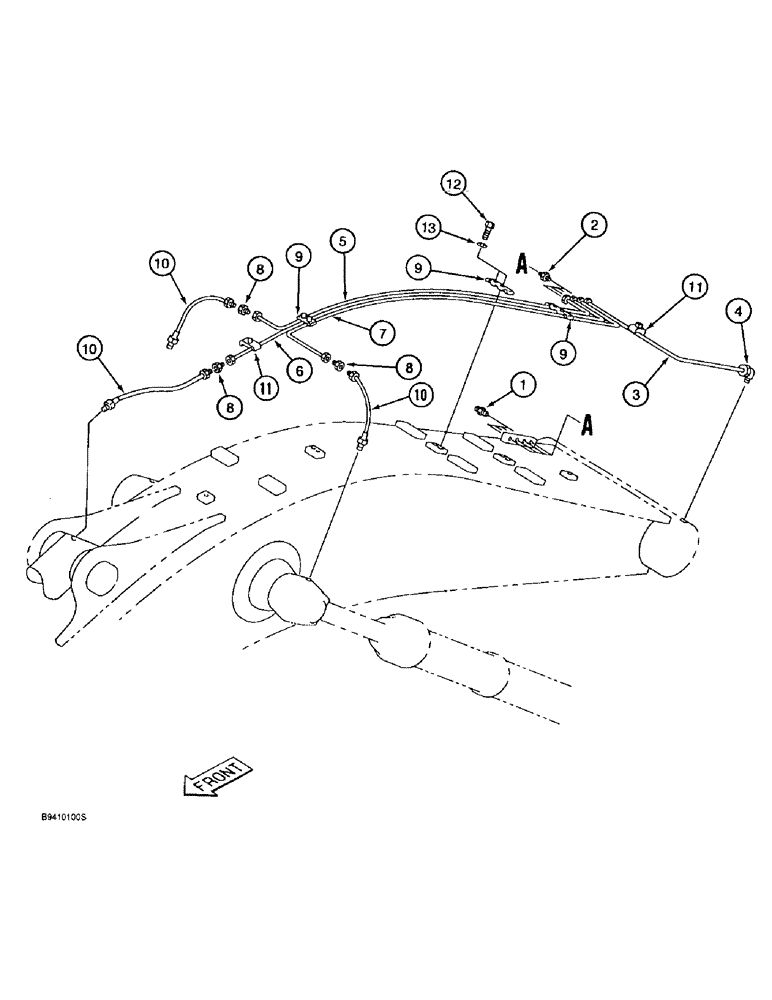

Схема запчастей Case 9020B - (9-082) - BOOM LUBRICATION LINES (09) - CHASSIS
13
1
8
11
9
11
4
6
10
5
12
8
8
3
10
10
9
7
2
9

Артикул

Название

Примечание

Количество

1

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

2

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

4шт.

3

161641A1

TUBE,474.5, 224.4 mm Length

- grease

1шт.

4

152627A1

ELBOW

- 90 degree, special

1шт.

5

161638A1

TUBE

- grease

1шт.

6

161639A1

TUBE

- grease

1шт.

7

161640A1

TUBE

- grease

1шт.

8

152032A1

UNION

CONNECTOR - straight

3шт.

9

151497A1

CLAMP

- lubrication line, triple type

3шт.

10

150983A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long, nylon

3шт.

11

151504A1

CLAMP

- lubrication line, single type

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

12

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

8шт.

Выбрано товаров: 13
