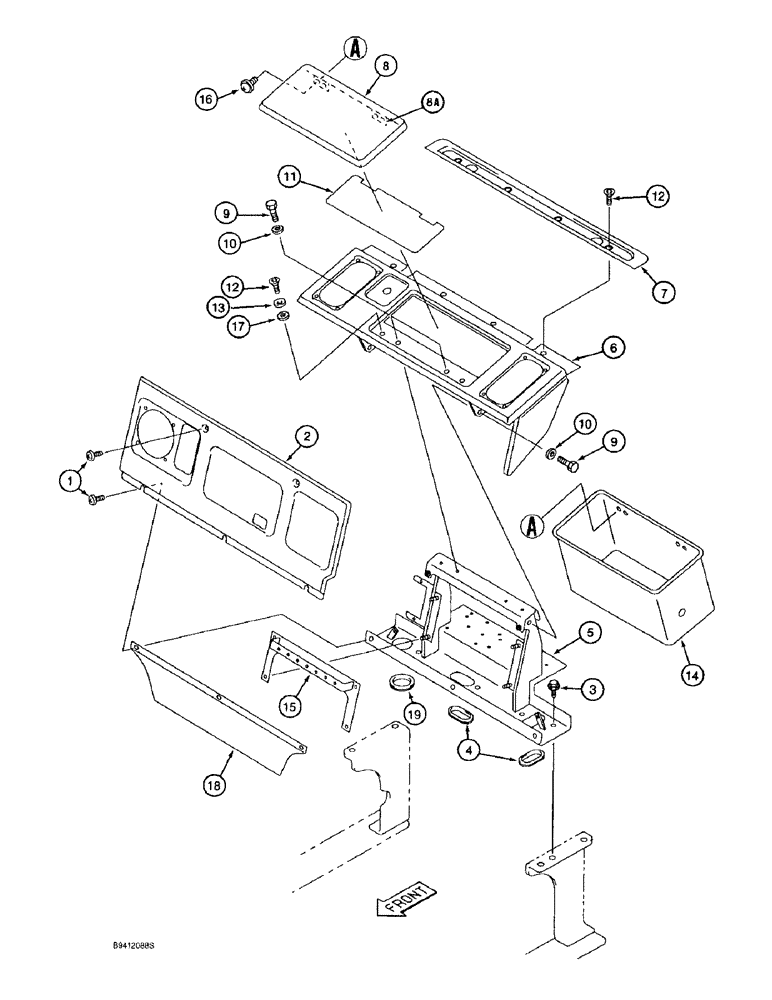

Запчасти Case 9020B (9-078) - CAB REAR CONSOLE AND PANELS (09) - CHASSIS

1

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

2

159527A1

COVER

PANEL - upper, cab rear console

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

4

159289A1

GROMMET

- rubber

1-2шт.

4a

164735A1

TRIM

GROMMET - rubber, replaces 165330A1 grommet

1шт.

5

164734A1

STAND

CONSOLE - rear, cab, replaces 161694A1 console

1шт.

6

159528A1

COVER

PANEL - top, cab rear console

1шт.

7

159293A1

COVER

PANEL - filler, top

1шт.

159529A1

COVER

ASSEMBLY - special, Includes: Ref. 8

1шт.

8

159530A1

HINGE

- cover, special

2шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

10

153081A1

WASHER

- flat, special

4шт.

11

159531A1

SEAL

- cushion

1шт.

12

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

BOLT - special

6шт.

13

113631A1

LOCK WASHER

- toothed conical, special, 8 mm

2шт.

14

163432A1

BRACKET

- cab rear console, replaces 159532A1 bracket

1шт.

15

159290A1

SUPPORT

BRACKET - mounting

1шт.

16

159542A1

SELF-TAP SCREW,Flg, M3 x 1.06 x 8mm

- self-tapping, special, hinge

4шт.

17

159292A1

WASHER

- special

2шт.

18

162268A1

RUBBER PAD

PLATE - rubber, special, used on models with air conditioning

1шт.

19

161688A1

GROMMET

- rubber

1шт.
