Запчасти Case 9020B (9-074) - LOWER FRONT WINDOW AND ROOF PANEL ASSEMBLY (09) - CHASSIS

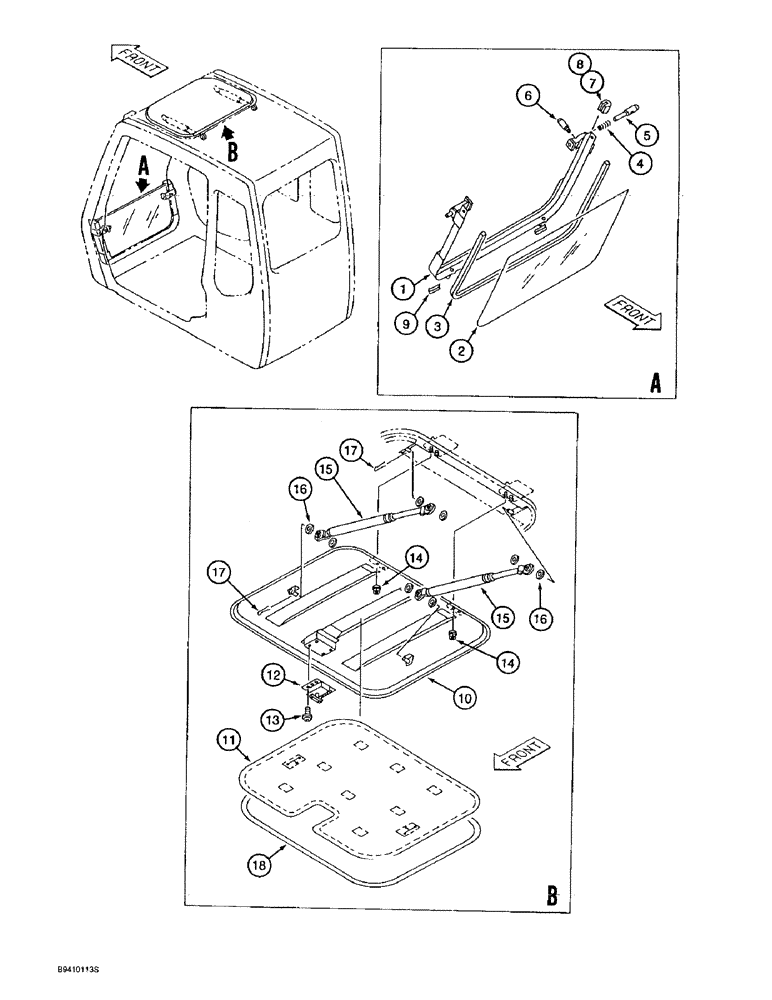

Схема запчастей Case 9020B - (9-074) - LOWER FRONT WINDOW AND ROOF PANEL ASSEMBLY (09) - CHASSIS
14
18
17
13
5
12
15
7
14
4
11
17
16
10
6
2
9
15
1
3
16
8

Артикул

Название

Примечание

Количество

164948A1

CAB

ASSEMBLY - operator's, replaces 161802A1 cab assembly, includes all parts on Figures 9-64 - 9-76, Includes: Ref. 1 - 18

1шт.

162167A1

WINDOW ASSY

WINDOW ASSEMBLY - lower front, Includes: Ref. 1 - 9

1шт.

1

161443A1

WINDOW FRAME

FRAME - front window, lower

1шт.

2

162174A1

GLASS

WINDOW - plastic

1шт.

3

161444A1

SEAL, GLASS

STRIP - weather

1шт.

4

161436A1

SPRING

- compression-type

2шт.

5

161437A1

STEM

PIN - special

2шт.

6

161438A1

LEVER

HANDLE - lock pin

2шт.

7

161445A1

SEAL

- special

1шт.

8

161446A1

SEAL

- special

1шт.

9

161447A1

TAPE

- weather stripping

2шт.

162171A1

ROOF

PANEL ASSEMBLY - roof, hinged, Includes: Ref. 10 - 17

1шт.

10

161449A1

ROOF

PANEL - roof, hinged,THIS IS A GREY METAL PANEL

1шт.

11

161450A1

INSULATOR

PAD - roof panel

1шт.

12

161451A1

LATCH ASSY.

LATCH - window

1шт.

13

161452A1

SCREW

- special, window latch

4шт.

14

161453A1

FLANGE NUT

- hex, flange, special

4шт.

15

161454A1

SHOCK ABSORBER

SHOCK - gas, roof panel

2шт.

16

161389A1

WASHER

- flat, special

8шт.

17

161455A1

PIN, SPLIT (COTTER)

CLIP - hair pin

4шт.

18

161335A1

SEAL

SEAL - rubber, hinged roof panel

1шт.

Выбрано товаров: 21
