Запчасти Case 9020B (9-070) - CAB FRONT WINDOW ASSEMBLY (09) - CHASSIS

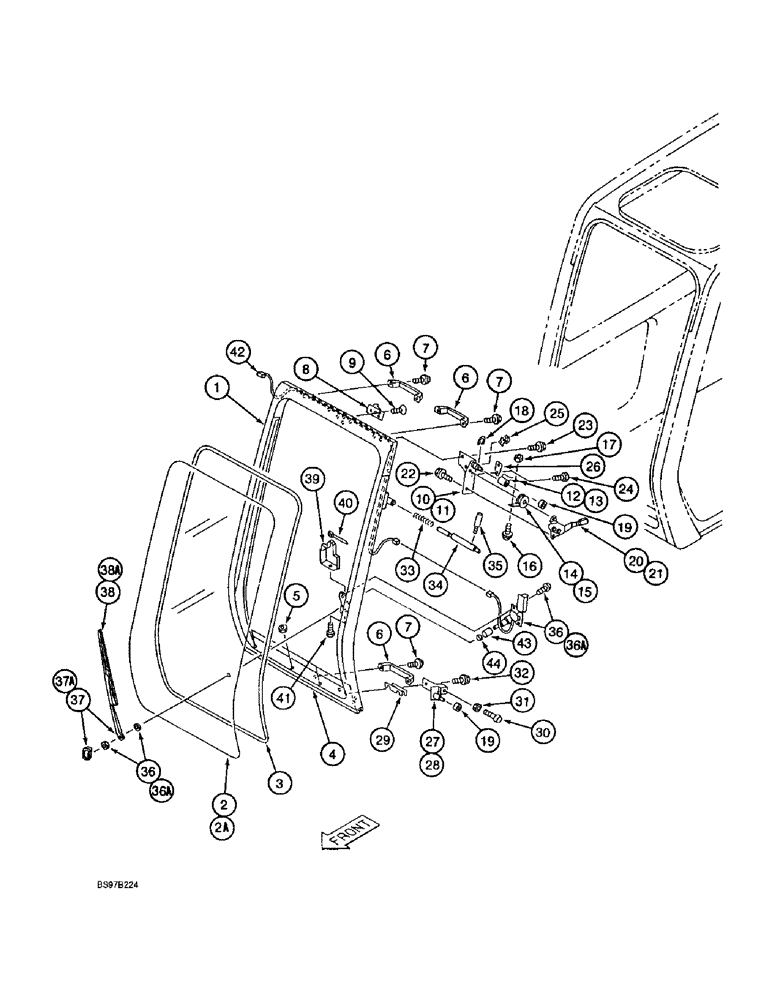

Схема запчастей Case 9020B - (9-070) - CAB FRONT WINDOW ASSEMBLY (09) - CHASSIS
37
7
10
42
19
38
26
30
8
36a
31
36
6
5
40
6
17
1
21
25
13
18
32
38a
37a
36
35
11
33
2
3
29
4
36a
22
43
34
6
7
16
19
15
39
28
41
12
27
44
7
2a
20
14
23
24
9

Артикул

Название

Примечание

Количество

164948A1

CAB

ASSEMBLY - operator's, replaces 161802A1 cab assembly, includes all parts on Figures 9-64 - 9-76, Includes: Ref. 1 - 44

1шт.

164221A1

WINDOW ASSY

WINDOW ASSEMBLY - cab front, replaces 161405A1 window assembly, Includes: Ref. 1 - 44

1шт.

1

161406A1

WINDOW ASSY

WINDOW - cab front

1шт.

2

161407A1

GLASS

- tempered, cab front window, 251.1 mm (9-7/8 inch) from hole in glass to bottom of glass

1шт.

2a

164576A1

GLASS

- tempered, cab front window, 346 mm (13-5/8 inch) from hole in glass to bottom of glass

1шт.

3

161408A1

SEAL, GLASS

STRIP - weather

1шт.

4

161409A1

SEAL, GLASS

STRIP - weather

1шт.

5

159585A1

NUT

- flange, special

4шт.

6

161410A1

HANDLE

- window

3шт.

7

161411A1

SCREW

- special, window handle

6шт.

8

161412A1

CATCH PLATE

STRIKER - front window

1шт.

9

161397A1

SCREW

- front window stopper

3шт.

10

161414A1

BRACKET

- window release, left-hand

1шт.

11

161415A1

BRACKET

- window release, right-hand

1шт.

12

161416A1

HOOK

- window catch, left-hand

1шт.

13

161417A1

HOOK

- window catch, right-hand

1шт.

14

164317A1

SPRING

- torsion-type, window lock, left-hand, replaces 161418A1 torsion spring

1шт.

15

164316A1

SPRING

- torsion-type, window lock, right-hand, replaces 161419A1 torsion spring

1шт.

16

161420A1

SCREW

- special

4шт.

17

161421A1

NUT

- special

4шт.

18

161422A1

RING

- snap, special

2шт.

19

161423A1

ROLLER

- window lock

4шт.

20

161424A1

LOCK

- front window, left-hand

1шт.

161424A1/161425A1 latches - There is a small return spring included with these that is not shown in catalog. Per vendor, these springs are not serviced seperately, need to buy the assy.

1шт.

21

161425A1

LOCK

- front window, right-hand

1шт.

22

161426A1

BOLT,Sems, Hex, M6 x 20mm

BOLT - special, bracket and lock

4шт.

23

161427A1

BOLT

BOLT - special, bracket

6шт.

24

161342A1

BOLT

BOLT - flange, special, stopper

2шт.

25

161429A1

CLIP

- wire

1шт.

26

161430A1

STOP

PER - hook

2шт.

27

161431A1

BRACKET

- special, left-hand

1шт.

28

161432A1

BRACKET

- special, right-hand

1шт.

29

161433A1

ADJUSTING PLATE

SHIM - plate, special

4шт.

30

161434A1

STOP

PER - front window

2шт.

31

161357A1

NUT

- rubber door stopper

2шт.

32

161426A1

BOLT,Sems, Hex, M6 x 20mm

BOLT - special

4шт.

33

161436A1

SPRING

- compression-type

1шт.

34

161437A1

STEM

PIN - special, front window

1шт.

35

161438A1

LEVER

HANDLE - lock pin

1шт.

36

160366A1

WIPER MOTOR

MOTOR - wiper, windshield, plastic tube on wire is black in color

1шт.

36a

164577A1

WIPER MOTOR

MOTOR - wiper, windshield, plastic tube on wire is grey in color

1шт.

37

160364A1

WIPER ARM

ARM - wiper, windshield, 400 mm (15-3/4 inch) long

1шт.

37a

164578A1

WIPER ARM

ARM - wiper, windshield, 375 mm (14-3/4 inch) long

1шт.

38

160363A1

WIPER BLADE

BLADE - wiper, windshield, 400 mm (15-3/4 inch) long

1шт.

38a

164579A1

WIPER BLADE

BLADE - wiper, windshield, 475 mm (18-11/16 inch) long

1шт.

39

161439A1

COVER

- wiper motor

1шт.

40

161440A1

MOUNTING CLIP

STRAP - tie, special

1шт.

41

161441A1

FLANGE BOLT

BOLT - flange, special

1шт.

42

161442A1

HARNESS

- electrical wiring, wiper motor

1шт.

43

164580A1

SPACER

- wiper motor, used with Ref. 36A, 164577A1 wiper motor

1шт.

44

164581A1

SPACER

- wiper motor, used with Ref. 36A, 164577A1 wiper motor

1шт.

Выбрано товаров: 51
