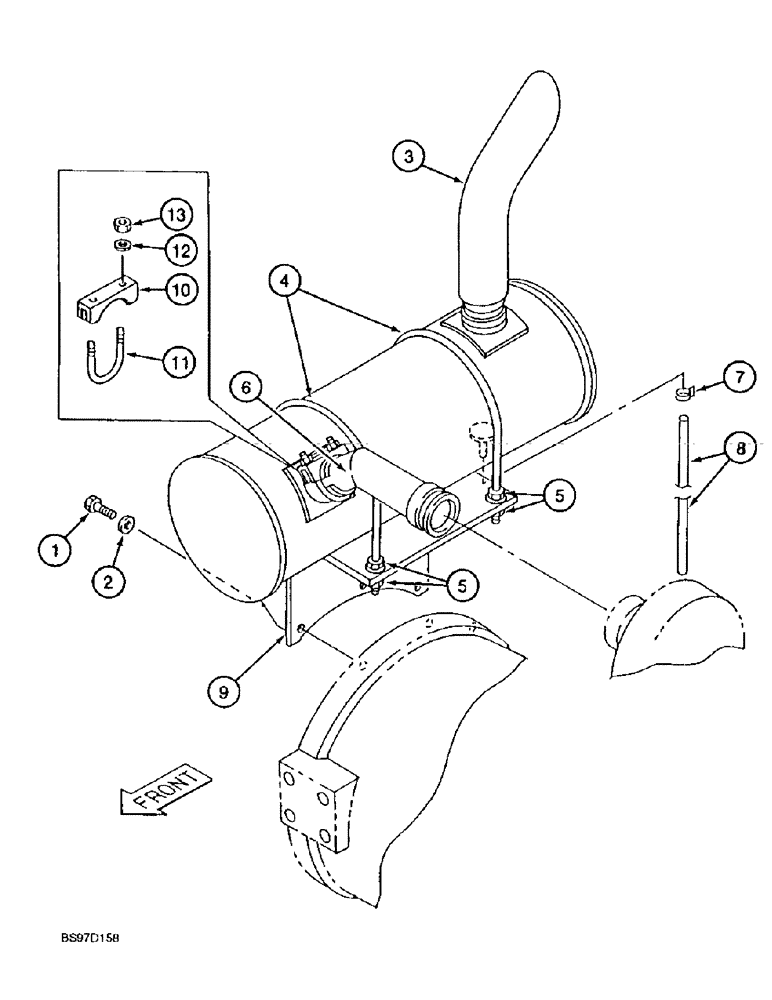

Запчасти Case 9020B (2-020) - MUFFLER AND EXHAUST SYSTEM, P.I.N. DAC0202001 AND AFTER (02) - ENGINE

1

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

3шт.

2

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

3шт.

3

256380A1

MUFFLER

- exhaust

1шт.

4

151341A1

U-BOLT,M8 x 1.25 x 210mm W x 206.50mm L

BOLT - U-type, muffler

2шт.

5

150469A1

FLANGE NUT

- hex flange, special

8шт.

6

164609A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

7

151367A1

COLLAR

CLAMP - adjustable, muffler drain line

1шт.

8

150657A1

TUBE

- drain, muffler

1шт.

9

165635A1

SUPPORT

BRACKET - muffler mounting

1шт.

10

164610A1

CLAMP

- saddle

1шт.

11

165391A1

U-BOLT

BOLT - U-type, muffler

1шт.

12

153081A1

WASHER

- flat, special

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
