Запчасти Case 9020B (9-053E) - AIR CONDITIONER ASSEMBLY AND MOUNTING (09) - CHASSIS

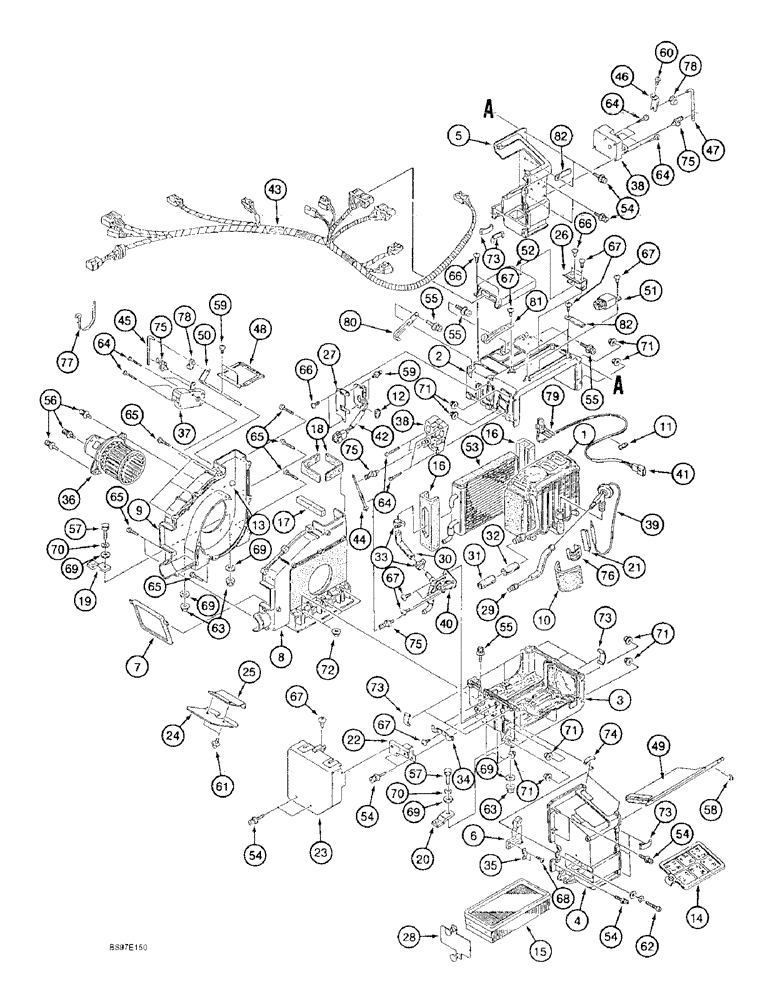

Схема запчастей Case 9020B - (9-053E) - AIR CONDITIONER ASSEMBLY AND MOUNTING (09) - CHASSIS
29
66
70
75
7
64
73
3
64
66
79
45
8
19
14
63
25
38
67
67
68
15
55
9
11
47
64
66
54
38
64
60
80
75
1
40
6
71
69
71
75
61
27
16
59
65
53
55
69
34
36
41
69
55
33
18
71
5
20
72
10
16
65
78
78
58
4
28
64
2
59
69
69
48
75
44
73
32
39
24
67
65
55
57
54
62
63
76
77
23
82
71
37
30
70
56
67
42
52
12
65
17
73
21
57
13
31
51
54
22
67
49
74
82
81
46
26
73
67
35
50
54
43
71

Артикул

Название

Примечание

Количество

164984A1

AIR CONDITIONER

ASSEMBLY - cab (manufacturers part number TUA-R860S), if used, Includes: Ref. 1 - 82

1шт.

1

163175A1

EVAPORATOR

- air conditioning

1шт.

2

163177A1

HOOD

COVER - evaporator, upper

1шт.

3

163178A1

COVER

- evaporator, lower

1шт.

4

163179A1

HOOD

COVER - air intake, front

1шт.

5

163180A1

HOOD

COVER - air intake, rear

1шт.

6

163181A1

HOOD

HOLDER - tube

1шт.

7

163182A1

COVER

- defrost

1шт.

8

163183A1

HOUSING

- blower motor, inner

1шт.

9

163223A1

HOUSING

- blower motor, outer

1шт.

10

163224A1

INSULATOR

PAD - insulation

1шт.

11

163226A1

GROMMET

- rubber

1шт.

12

163225A1

GROMMET

- rubber

1шт.

13

165817A1

GROMMET

- rubber

1шт.

14

163186A1

FILTER

- recirculation, cab

1шт.

15

165085A1

CAB FILTER

FILTER - air, inner, cab

1шт.

16

165086A1

NOISE PROTECTION

INSULATION - heater, cab

2шт.

17

163169A1

PACKING

PAD - foam

1шт.

18

163170A1

GASKET

- housing, blower motor

2шт.

19

163227A1

BRACKET

- mounting, housing

2шт.

20

163228A1

BRACKET

- mounting, lower evaporator cover

1шт.

21

163187A1

HOLDER

- thermocouple

1шт.

22

163229A1

BRACKET

- mounting, tube cover

1шт.

23

163230A1

COVER

- tube

1шт.

24

163238A1

DEFLECTOR

LOUVER - main, controller

1шт.

25

163239A1

LARGE PLATE

PLATE - louver, resistor and harness

1шт.

26

165087A1

BRACKET

- special

1шт.

27

165083A1

BRACKET

- mounting

1шт.

28

165089A1

COVER

- special, hose

1шт.

29

163188A1

TUBE ASSY.

TUBE - suction

1шт.

30

163171A1

HEATER HOSE

1шт.

31

163172A1

INSULATOR

INSULATION - tube

1шт.

32

163173A1

INSULATOR

INSULATION - tube

1шт.

33

165090A1

MOUNTING CLIP

BAND - hose

2шт.

34

163221A1

COLLAR

CLAMP - tube

1шт.

35

163222A1

BRACKET

CLAMP - tube

1шт.

36

163189A1

MOTOR, ELECTRIC

MOTOR - blower, cab

1шт.

37

163190A1

ACTUATOR

- damper, blower motor housing

1шт.

38

163191A1

ACTUATOR

- damper, one located on rear intake cover and one located on upper evaporator cover

2шт.

39

163174A1

VALVE

- expansion

1шт.

40

163192A1

VALVE

- water

1шт.

41

163233A1

ELECTRICAL WIRE

CABLE - thermistor

1шт.

42

165084A1

RESISTOR

- cab

1шт.

43

165811A1

HARNESS

- main, cab

1шт.

44

163194A1

ROD

- actuator, water valve

1шт.

45

163244A1

ROD

- actuator, damper

1шт.

46

163240A1

LEVER

- damper

1шт.

47

163241A1

ROD

- actuator, damper

1шт.

48

163195A1

VENT

DAMPER - blower motor

1шт.

49

163196A1

VENT

DAMPER - air intake

1шт.

50

163242A1

SHAFT

- damper

1шт.

51

165091A1

RELAY

- cab

1шт.

52

165092A1

CONTROL UNIT

BOX - control

1шт.

53

165093A1

HEATER

CORE - heater

1шт.

54

163197A1

BOLT,Sems

BOLT - hex socket, special

11шт.

55

163198A1

BOLT,Sems

BOLT - hex socket, special

6шт.

56

163199A1

BOLT

BOLT - hex socket, special

3шт.

57

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 25 mm, class 12.9

3шт.

58

163200A1

RING, LOCKING

RING - retaining

1шт.

59

163201A1

SCREW

- special

4шт.

60

163202A1

SCREW

- special

1шт.

61

163219A1

BOLT

BOLT - hex head, special

2шт.

62

163203A1

SCREW

- special

1шт.

63

163205A1

FLANGE NUT

- hex flange, special

3шт.

64

165813A1

SCREW

- self-tapping, special

12шт.

65

165814A1

SCREW

- self-tapping, special

9шт.

66

165812A1

SCREW

- self-tapping, special

5шт.

67

165815A1

SELF-TAP SCREW

- self-tapping, special

12шт.

68

165816A1

SCREW

- self-tapping, special

2шт.

70

892-11010

LOCK WASHER,M10

3шт.

71

163204A1

FLANGE NUT

- hex flange, special

10шт.

72

163211A1

FLANGE NUT

- hex flange, special

3шт.

73

163212A1

CLAMP

- cover

11шт.

74

163213A1

CLAMP

- damper

2шт.

75

163214A1

CLAMP

- rod

4шт.

76

163235A1

CLASP

BRACKET - thermocouple

1шт.

77

163215A1

MOUNTING CLIP

STRAP - tie

1шт.

78

163236A1

HOLDER

RETAINER - actuator rod

2шт.

79

163237A1

HOLDER

RETAINER - thermocouple

1шт.

80

163216A1

CLAMP

- wire harness

1шт.

81

163217A1

MOUNTING CLIP

CLAMP - wire harness

1шт.

82

163218A1

CLAMP

- cover

3шт.

69

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

6шт.

Выбрано товаров: 83
