Запчасти Case 9020B (2-018) - MUFFLER AND EXHAUST SYSTEM, PRIOR TO P.I.N. DAC02#2001 (02) - ENGINE

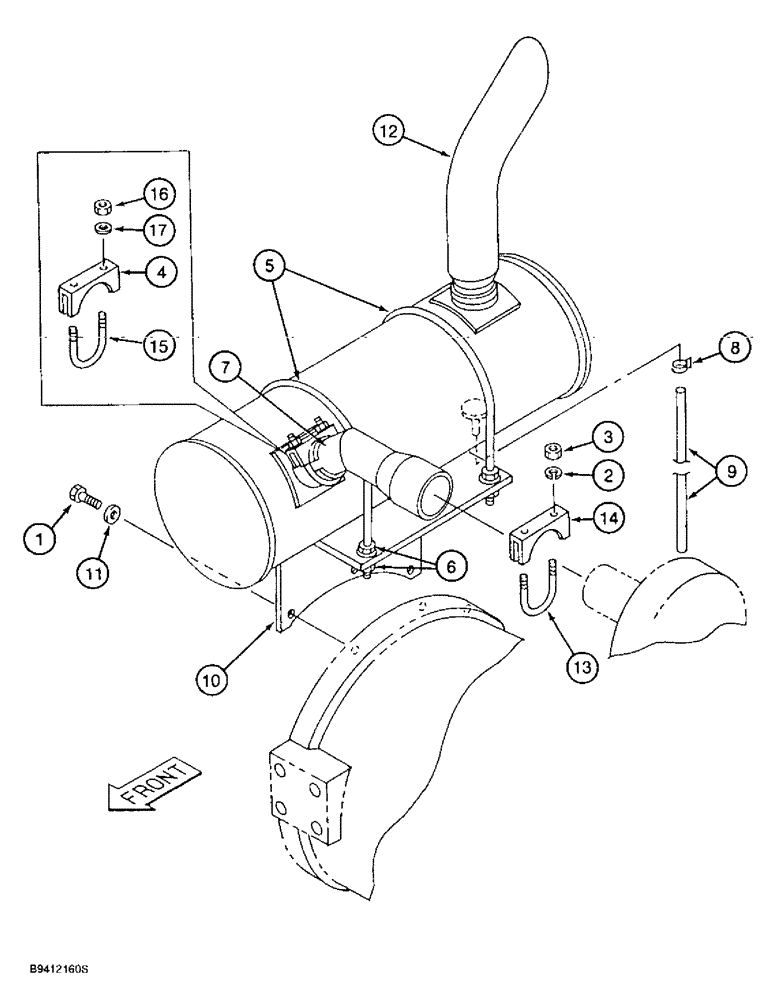

Схема запчастей Case 9020B - (2-018) - MUFFLER AND EXHAUST SYSTEM, PRIOR TO P.I.N. DAC02#2001 (02) - ENGINE
14
17
6
1
7
16
4
11
15
5
3
9
10
13
2
12
8

Артикул

Название

Примечание

Количество

1

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

3шт.

2

892-11010

LOCK WASHER,M10

2шт.

4

158238A1

CLAMP

- saddle

1шт.

5

151341A1

U-BOLT,M8 x 1.25 x 210mm W x 206.50mm L

BOLT - U-type, muffler

2шт.

6

150469A1

FLANGE NUT

- hex flange, special

8шт.

7

158237A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

8

151367A1

COLLAR

CLAMP - adjustable, muffler drain line

1шт.

9

150657A1

TUBE

- drain, muffler

1шт.

10

151334A1

SUPPORT

BRACKET - muffler mounting

1шт.

11

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

3шт.

12

162122A1

MUFFLER

- exhaust

1шт.

13

156694A1

U-BOLT,M10 x 86mm W x 80mm L

BOLT - U-type

1шт.

14

156695A1

SUPPORT

CLAMP - saddle

1шт.

15

157786A1

U-BOLT

BOLT - U-type, muffler

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

17

153081A1

WASHER

- flat, special

2шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

Выбрано товаров: 17
