(9-048) - AIR CONDITIONING COMPRESSOR MOUNTING, PRIOR TO P.I.N. DAC02#2001

Запчасти Case 9020B (9-048) - AIR CONDITIONING COMPRESSOR MOUNTING, PRIOR TO P.I.N. DAC02#2001 (09) - CHASSIS

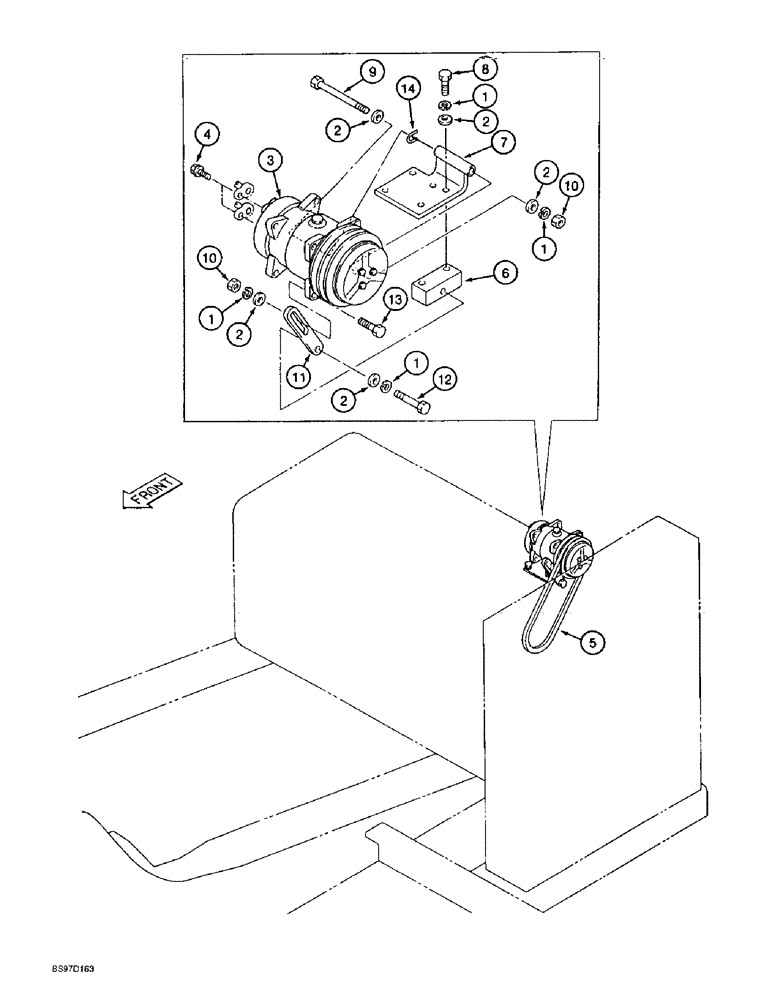

Схема запчастей Case 9020B - (9-048) - AIR CONDITIONING COMPRESSOR MOUNTING, PRIOR TO P.I.N. DAC02#2001 (09) - CHASSIS
10
4
2
1
1
3
7
2
9
10
14
1
6
11
5
12
2
2
1
13
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

892-11010

LOCK WASHER,M10

8шт.

3

164730A1

COMPRESSOR

- air conditioner, replaces 162925A1 compressor

1шт.

4

162457A1

SPECIAL BOLT,Spcl

BOLT - special, compressor hose attaching

2шт.

5

161014A1

BELT

Compressor

1шт.

6

161017A1

BLOCK

- mounting

1шт.

7

165723A1

BRACKET

- compressor mounting, replaces 163336A1 bracket

1шт.

9

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

- hex, 10 - 1.5 x 130 mm, class 10.9

1шт.

11

161016A1

BRACE

- compressor adjusting

1шт.

12

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

- hex, 10-1.5 x 65 mm, class 10.9

1шт.

13

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

1шт.

14

164620A1

SHIM

- U-shaped, 0.3 mm thick

2шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

9шт.
