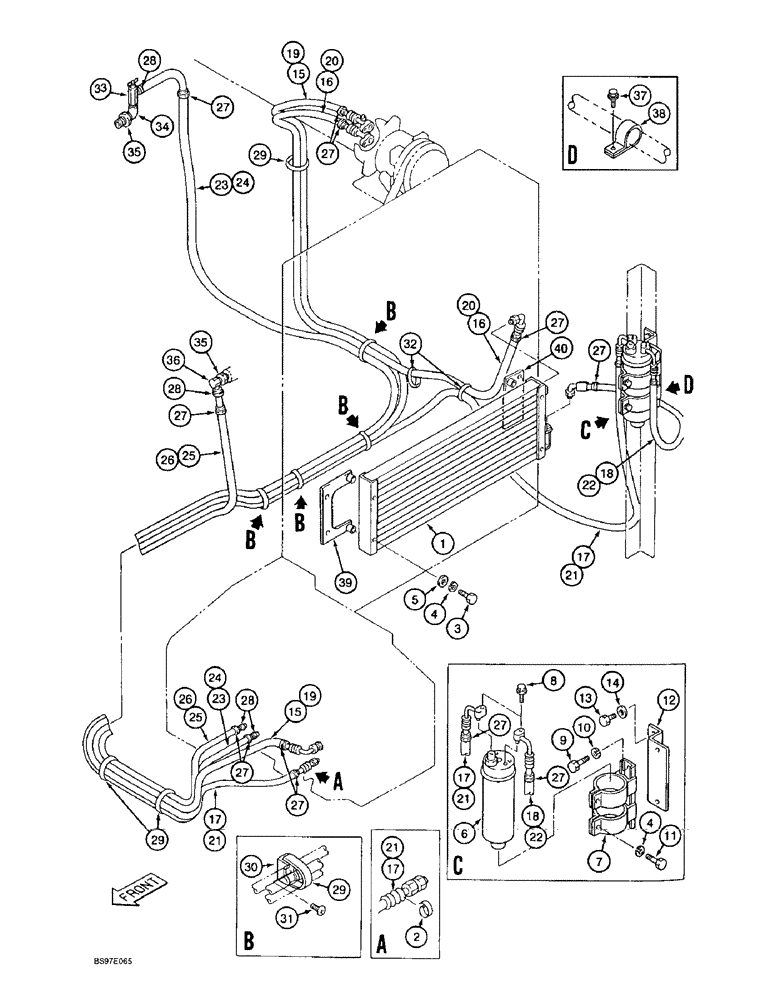

Запчасти Case 9020B (9-046) - AIR CONDITIONER WITH HEATER AND HOSES (09) - CHASSIS

1

159646A1

CONDENSER

- air conditioner

1шт.

2

157294A1

TAPE

- special, refrigerant

1шт.

3

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

- hex, 6 - 1.0 x 70 mm, class 10.9

4шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6-10шт.

5

153360A1

WASHER

- flat, special

4шт.

6

159634A1

RECEIVER-DRYER

Dryer

1шт.

6

KHR3751

RECEIVER-DRYER

P.I.N. DAC0202748 AND AFTER

1шт.

7

159635A1

SUPPORT

BRACKET - receiver-drier

1шт.

8

162043A1

BOLT,Spcl, M6

BOLT - special

2шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

11

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

12

163542A1

BRACKET

PLATE - receiver-drier support

1шт.

13

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

14

150811A1

WASHER

- flat, special, 12 mm

2шт.

15

163311A1

A/C HOSE,2000.00 mm

Compressor Lower Port To Condenser 2000.00 mm

1шт.

169052A1 O-ring for Ref. 15 Hose Assy 163311A1

1шт.

Illustration shows this as the low pressure hose, it is in fact the high pressure

1шт.

16

163312A1

HOSE ASSY.

HOSE - 3900 mm (153-1/2 inch) long, Compressor Upper Port To Evaporator

1шт.

169053A1 O-ring for Ref. 16 Hose Assy 163312A1

1шт.

Illustration shows this as the high pressure hose, it is in fact the low pressure

1шт.

17

159642A1

HOSE,3850.00 mm

1шт.

169054A1 O-ring for Ref. 17 Hose Assy 159642A1 & Ref. 18 Hose Assy 163313A1.

1шт.

18

163313A1

HOSE ASSY.

HOSE - 650 mm (25-9/16 inch) long, Serial Range: receiver-drier-condenser

1шт.

19

152433A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 3500 mm (137-3/4 inch) long

1шт.

20

158064A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 1500 mm (59 inch) long

1шт.

21

151563A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 3800 mm (149-5/8 inch) long

1шт.

22

150770A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 400 mm (15-3/4 inch) long

1шт.

23

159186A1

HEATER HOSE,5000.00 mm

From Shut-Off Valve To Heater 5000.00 mm

1шт.

24

157922A1

TUBE

SLEEVE - corrugated, 4300 mm (167-5/16 inch) long

1шт.

25

150827A1

HOSE,13.00 mm ID x 4000.00 mm

From Heater Back to Engine 13.00 mm ID x 4000.00 mm

1шт.

26

151544A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 450 mm Length

SLEEVE - corrugated, 3800 mm (149-5/8 inch) long

1шт.

27

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

12шт.

28

157271A1

CLIP

CLAMP - adjustable, heater hose

4шт.

29

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

15шт.

30

150860A1

COLLAR

BRACKET - support

4шт.

31

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

4шт.

32

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

2шт.

33

152664A1

VALVE

- water shut-off

1шт.

34

152159A1

ELBOW

- 90 degree, special

1шт.

35

151588A1

BUSHING

ADAPTER - straight, special

2шт.

36

150383A1

ELBOW

- 90 degree, special

1шт.

37

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

38

159149A1

COLLAR

CLAMP - P-type

1шт.

39

165841A1

BRACKET

- condenser

1шт.

40

165842A1

BRACKET

- condenser

1шт.
