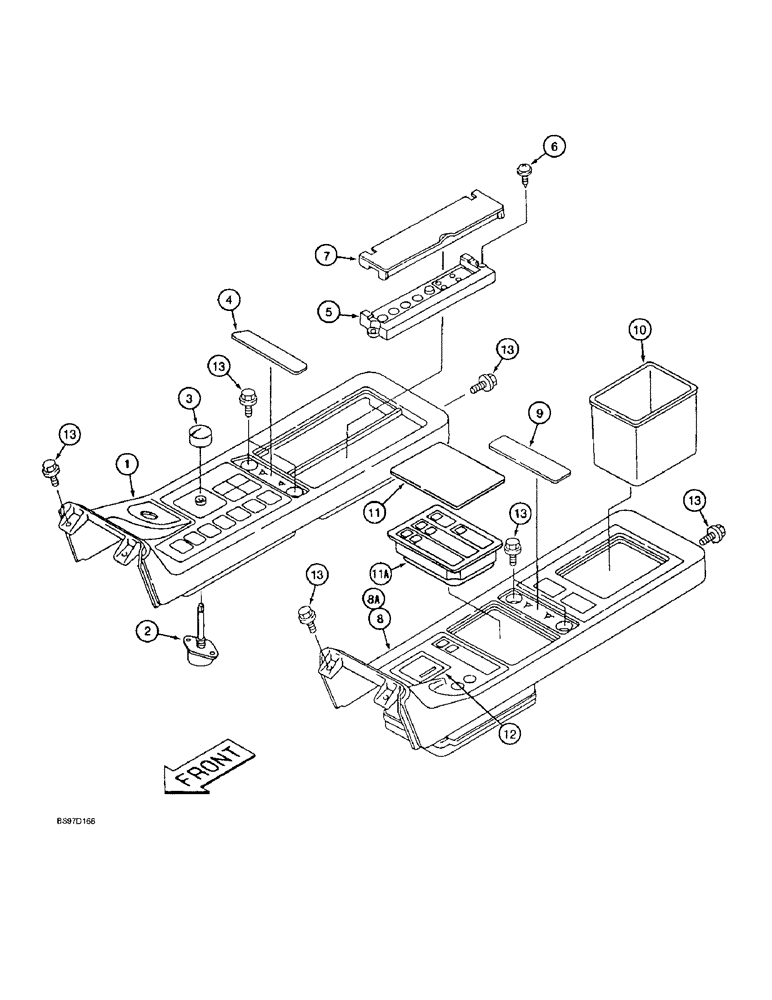

Запчасти Case 9020B (9-032) - CONSOLE BOX, CONTROL PANEL ASSEMBLIES (09) - CHASSIS

161312A1

CONSOLE

PANEL ASSEMBLY - control, console box, right-hand, Includes: Ref. 1 - 7

1шт.

1

162269A1

PANEL ASSY.

PANEL - control, right-hand

1шт.

2

159614A1

THROTTLE SWITCH

SWITCH - engine speed rheostat

1шт.

3

159611A1

BUTTON

KNOB - switch

1шт.

4

159612A1

CAP

PANEL - cover

1шт.

5

159627A1

COVER

PANEL - control, right-hand rear

1шт.

5-1

NSS

NOT SOLD SEPARAT

Not Shown - Circuit Board (Order p/n 161312A1)

1шт.

6

162161A1

SCREW

- special

2шт.

7

159628A1

COVER

- control panel, right-hand rear

1шт.

7a

KHR3214

HARNESS

ignition switch, not shown

1шт.

161313A1

CONSOLE

PANEL ASSEMBLY - control, console box, left-hand, models without air conditioning, Includes: Ref. 8 - 12

1шт.

161696A1

CONSOLE

PANEL ASSEMBLY - control, console box, left-hand, models with air conditioning, Includes: Ref. 8 - 12

1шт.

8

162270A1

PANEL ASSY.

PANEL - control, left-hand, models without air conditioning

1шт.

8a

162272A1

PANEL ASSY.

PANEL - control, left-hand, models with air conditioning

1шт.

9

159613A1

CAP

PANEL - cover

1шт.

10

159607A1

CASE

BOX - control

1шт.

11

159936A1

COVER

PANEL - cover, models without air conditioning

1шт.

11a

162273A1

PANEL

- switch, with LED indicators, models with air conditioning

1шт.

12

162271A1

HOURMETER

- engine operation time

1шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

12шт.
