Запчасти Case 9020B (2-016) - AIR CLEANER SYSTEM, P.I.N. DAC02#2001 AND AFTER (02) - ENGINE

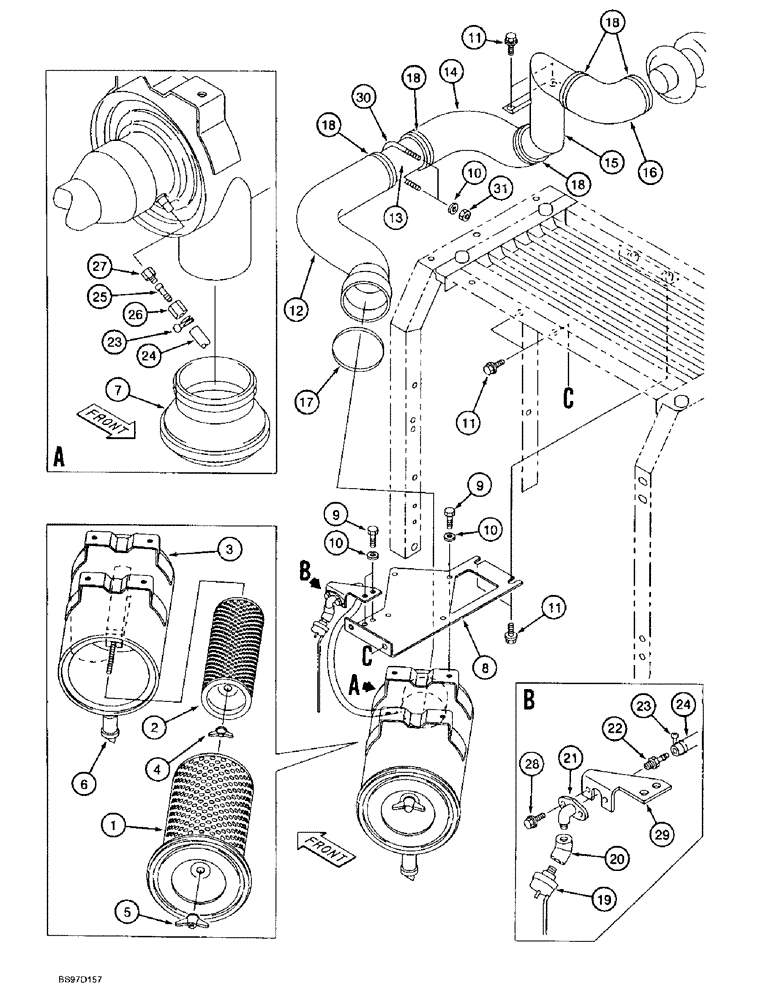

Схема запчастей Case 9020B - (2-016) - AIR CLEANER SYSTEM, P.I.N. DAC02#2001 AND AFTER (02) - ENGINE
3
9
12
2
24
29
19
10
23
11
10
1
15
9
20
18
21
4
14
13
6
16
8
7
18
23
30
17
28
26
25
18
11
22
18
11
10
27
5
31
24

Артикул

Название

Примечание

Количество

165419A1

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 7

1шт.

1

161863A1

AIR FILTER

ELEMENT - air cleaner, outer

1шт.

2

161862A1

AIR FILTER

ELEMENT - air cleaner, inner

1шт.

3

165483A1

HOUSING

BODY - air cleaner

1шт.

4

156497A1

WING NUT

NUT - wing, includes gasket

1шт.

5

162870A1

NUT

NUT - wing

1шт.

6

156412A1

VALVE POPPET

CUP - dust

1шт.

7

165437A1

CAP

- screen, body assembly

1шт.

8

164590A1

BRACKET

- mounting

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

8шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

6шт.

12

164589A1

INTAKE AIR HOSE

TUBE - vinyl, next to air cleaner body assembly (Replaces 165489A1)

1шт.

13

161132A1

AIR INTAKE TUBE,76.3 mm OD, 165 mm Length

PIPE - air inlet

1шт.

14

161533A1

INTAKE AIR HOSE,76.20 mm ID x 175.00 mm

HOSE - air inlet, special

1шт.

15

162688A1

PIPE

- air inlet, with mounting bracket

1шт.

16

164588A1

LARGE HOSE

HOSE - air inlet, special, at turbocharger

1шт.

17

150294A1

CLAMP,95mm - 115mm

CLAMP - adjustable

1шт.

18

150902A1

COLLAR

CLAMP - adjustable

5шт.

19

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

20

161710A1

ELBOW

- 45 degree, special

1шт.

21

165448A1

BRACKET

- support

1шт.

22

165447A1

FITTING

ADAPTER - special, bracket attaching

1шт.

23

165446A1

COLLAR

CLAMP - adjustable

2шт.

24

165445A1

INTAKE AIR HOSE

HOSE - air

1шт.

25

165444A1

FITTING

ADAPTER - special

1шт.

26

165443A1

NUT

ADAPTER - special

1шт.

27

165442A1

FITTING

ADAPTER - special

1шт.

28

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

29

165417A1

BRACKET

- attaching

1шт.

30

161153A1

U-BOLT,M10 x 90mm W x 110mm L

BOLT - U-type, special

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

U-bolt M10, Cl 10

2шт.

Выбрано товаров: 32
