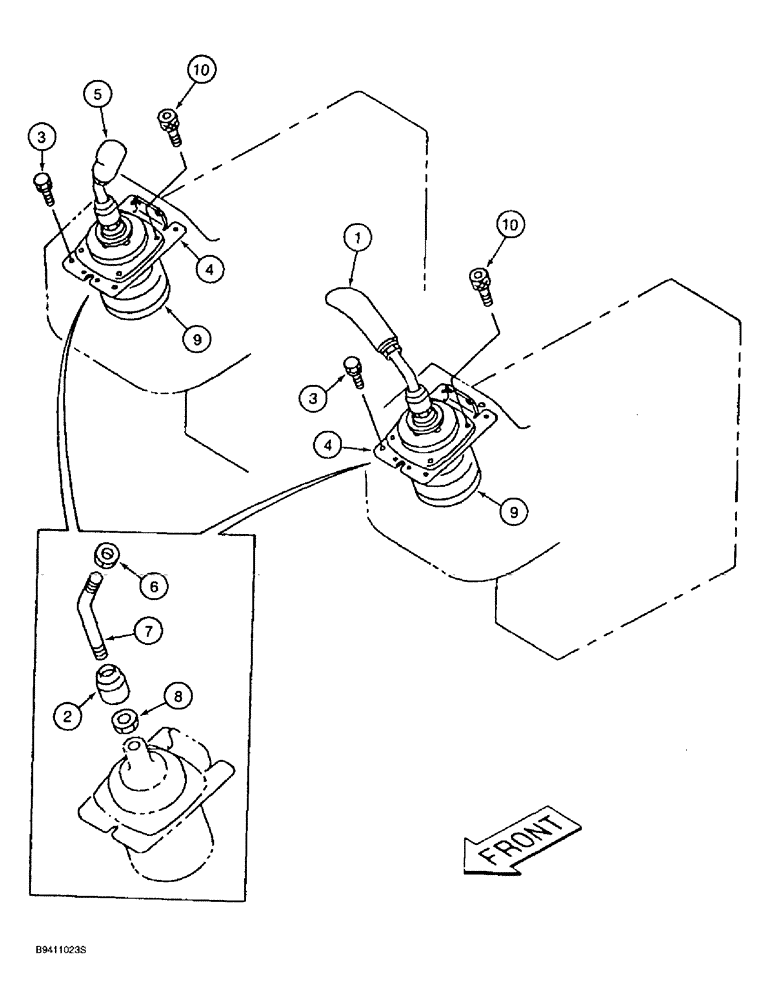

Запчасти Case 9020B (9-026) - REMOTE CONTROL VALVE ASSEMBLY MOUNTING (09) - CHASSIS

1

159270A1

KNOB

- left-hand, with horn button, remote control

1шт.

2

151302A1

CAP

BOOT - dust protection

2шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special, bracket

4шт.

4

159268A1

SUPPORT

BRACKET - mounting

2шт.

5

159486A1

KNOB

- right-hand, remote control

1шт.

6

159487A1

NUT

- hex, special, knob

2шт.

7

159269A1

LEVER

- control

2шт.

8

151154A1

JAM NUT

- hex, control lever

2шт.

9

160677A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, see parts list Figure 8-106

2шт.

10

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 25 mm, class 12.9

8шт.
