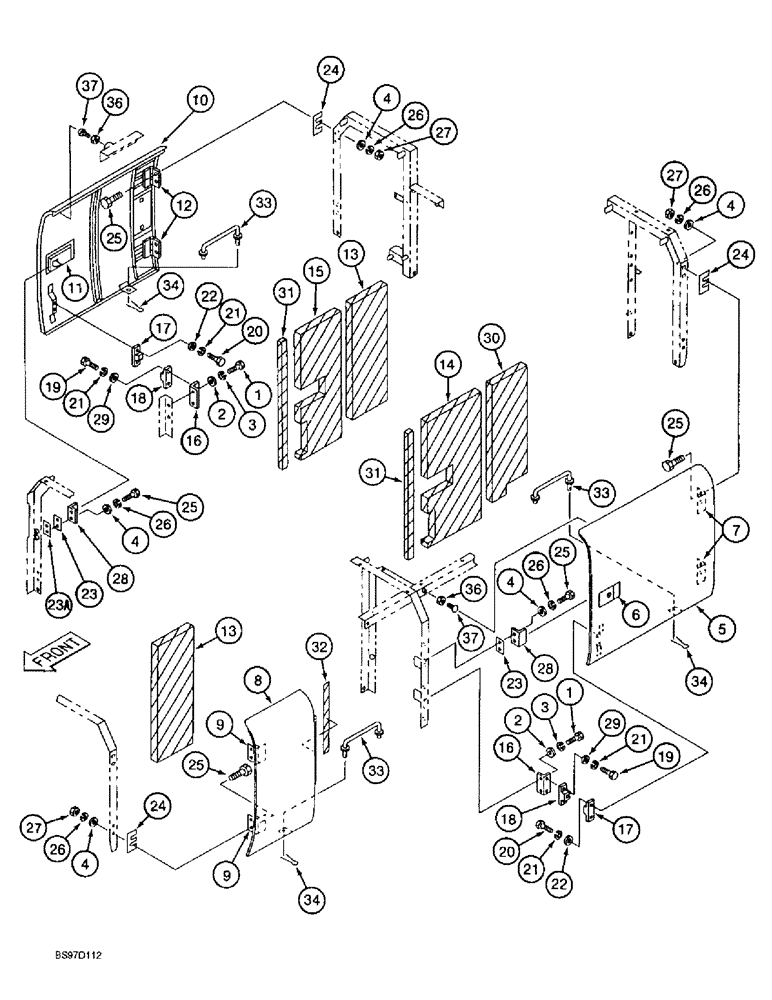

Запчасти Case 9020B (9-022) - UPPER STRUCTURE, LEFT-HAND AND RIGHT-HAND SIDE DOORS (09) - CHASSIS

1

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

5

161593A1

DOOR

ASSEMBLY - side, left-hand, Includes: Ref. 6 and 7

1шт.

6

150938A1

LOCK

LATCH - recessed

1шт.

7

159098A1

HINGE

- door

2шт.

8

161594A1

DOOR

ASSEMBLY - side, left-hand, Includes: Ref. 9

1шт.

9

159098A1

HINGE

- door

2шт.

10

161592A1

DOOR

ASSEMBLY - side, right-hand, Includes: Ref. 11 and 12

1шт.

11

150939A1

LOCK

LATCH - recessed

1шт.

12

159098A1

HINGE

- door

2шт.

13

161585A1

NOISE PROTECTION

INSULATION - acoustic

2шт.

14

161597A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

15

161586A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

16

159094A1

BRACKET

- door

2шт.

17

159099A1

STOP

PER - door

2шт.

18

159095A1

BRACKET

- door

2шт.

19

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

4шт.

20

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

8шт.

21

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

12шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

8шт.

23

152719A1

SHIM

PLATE - shim, 3.30 mm (0.13 inch) thick

2шт.

23a

158749A1

SHIM

PLATE - shim, 1.2 mm (0.05 inch) thick

2шт.

24

152651A1

ADJUSTING PLATE

SHIM - 1.27 mm (.05 inch) thick

6шт.

25

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

18шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

16шт.

27

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

12шт.

28

152720A1

BRACKET

- angle

2шт.

29

153360A1

WASHER

- flat, special

4шт.

30

161596A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

31

159135A1

SEAL

- cushion

2шт.

32

160760A1

GROMMET

CUSHION - rubber

1шт.

33

159101A1

STAY

HOLDER - door

3шт.

34

153181A1

COTTER PIN

CLIP - hair pin

5шт.

36

159091A1

STOP

PER - rubber

2шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
