Запчасти Case 9020B (9-020) - UPPER STRUCTURE, HOOD, COVERS AND INSULATION, P.I.N. DAC02#2001 AND AFTER (09) - CHASSIS

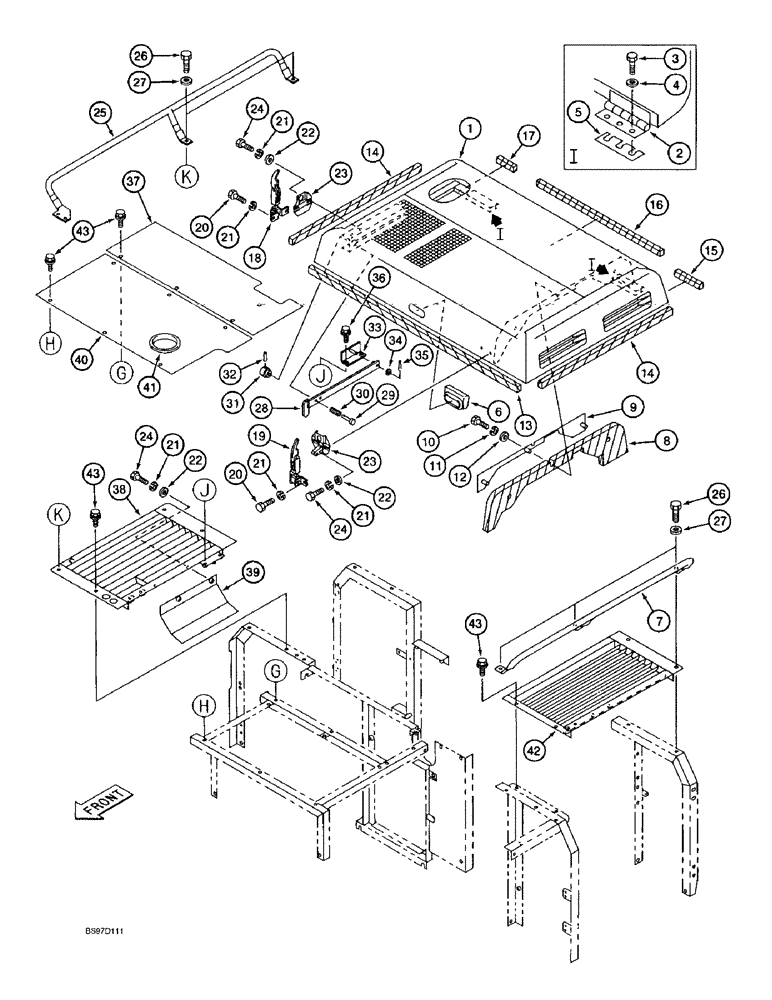

Схема запчастей Case 9020B - (9-020) - UPPER STRUCTURE, HOOD, COVERS AND INSULATION, P.I.N. DAC02#2001 AND AFTER (09) - CHASSIS
20
25
42
21
41
32
38
39
43
6
24
43
43
21
28
10
30
12
21
21
22
7
14
3
1
21
8
23
22
16
35
26
36
24
37
29
18
27
34
27
2
11
26
23
22
40
33
5
14
17
9
19
15
24
4
31
20
13

Артикул

Название

Примечание

Количество

1

165541A1

SHEET

HOOD - engine, Includes: Ref. 2

1шт.

2

152819A1

HINGE

- hood

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

4

150811A1

WASHER

- flat, special, 12 mm

6шт.

5

152743A1

SHIM

- 0.09 inch thick

2шт.

6

150484A1

HANDLE

- recessed

1шт.

7

161579A1

RAIL ASSY.

HANDRAIL - left-hand

1шт.

8

165549A1

CUSHION

SEAL - cushion

1шт.

9

165550A1

RETAINER

- seal

1шт.

10

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm, class 10.9

3шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

13

165542A1

CUSHION

- sponge rubber, front side of hood

1шт.

14

161231A1

RUBBER BLOCK

CUSHION - sponge rubber, right-hand and left-hand side of hood

2шт.

15

165543A1

CUSHION

- sponge rubber, left-hand rear corner of hood

1шт.

16

161582A1

CUSHION ASSY.

CUSHION - sponge rubber, center rear of hood

1шт.

17

161587A1

CUSHION ASSY.

CUSHION - sponge rubber, right-hand rear corner of hood

1шт.

18

152423A1

LATCH

CATCH - hood, right-hand side

1шт.

19

150790A1

LATCH

CATCH - hood, front

1шт.

20

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

21

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

23

150785A1

STOP LOCK

LATCH - door assembly

2шт.

24

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

6шт.

25

161580A1

RAIL ASSY.

HANDRAIL - right-hand

1шт.

26

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

5шт.

27

150811A1

WASHER

- flat, special, 12 mm

5шт.

28

161223A1

STAY

- hood support

1шт.

29

159127A1

HEADED PIN

PIN - clevis

1шт.

30

159877A1

SPRING

- compression

1шт.

31

159129A1

SPACER

COLLAR - special

1шт.

32

738-1332

LOCK PIN,M3 x 32, Slotted

PIN - roll, 3 x 32 mm

1шт.

33

161234A1

BRACKET

ASSEMBLY - hood, incudes clevis pin

1шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

35

160762A1

COTTER PIN

CLIP - hair pin

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

37

163252A1

COVER

- upper, center

1шт.

38

164593A1

SIEVE

FRAME - duct

1шт.

39

161227A1

COVER

- upper structure

1шт.

40

161601A1

COVER

- upper, center

1шт.

41

152804A1

GROMMET

- rubber

1шт.

42

165534A1

SIEVE

FRAME - duct

1шт.

43

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

Выбрано товаров: 43
