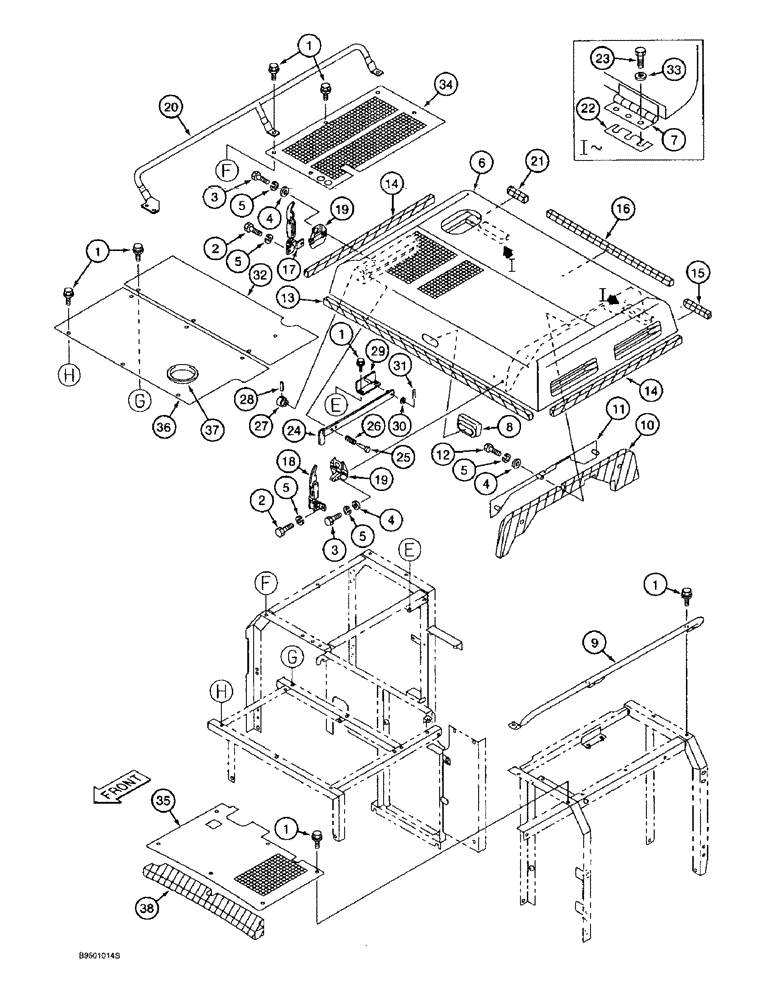

Запчасти Case 9020B (9-018) - UPPER STRUCTURE, HOOD, COVERS AND INSULATION, PRIOR TO P.I.N. DAC02#2001 (09) - CHASSIS

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

23шт.

2

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

6

161603A1

HOOD ASSY.

HOOD ASSEMBLY - engine, Includes: Ref. 7

1шт.

7

152819A1

HINGE

- hood

2шт.

8

150484A1

HANDLE

- recessed

1шт.

9

161579A1

RAIL ASSY.

HANDRAIL - left-hand

1шт.

10

161614A1

SEAL

- cushion, lleft-hand, under hood

1шт.

11

161264A1

RING

RETAINER - seal

1шт.

12

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm, class 10.9

3шт.

13

161581A1

RUBBER BLOCK

CUSHION - sponge rubber, front side of hood

1шт.

14

161583A1

CUSHION ASSY.

CUSHION - sponge rubber, right-hand and left-hand side of hood

2шт.

15

161660A1

CUSHION ASSY.

CUSHION - sponge rubber, left-hand rear corner of hood

1шт.

16

161582A1

CUSHION ASSY.

CUSHION - sponge rubber, rear side of hood

1шт.

17

152423A1

LATCH

CATCH - hood

1шт.

18

150790A1

LATCH

CATCH - hood

1шт.

19

150785A1

STOP LOCK

LATCH - door assembly

2шт.

20

161580A1

RAIL ASSY.

HANDRAIL - right-hand

1шт.

21

161587A1

CUSHION ASSY.

CUSHION - sponge rubber, right-hand rear corner of hood

1шт.

22

152743A1

SHIM

- 0.09 inch thick

2шт.

23

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

24

161223A1

STAY

- hood support

1шт.

25

159127A1

HEADED PIN

PIN - clevis

1шт.

26

159877A1

SPRING

- compression

1шт.

27

159129A1

SPACER

COLLAR - special

1шт.

28

738-5332

PIN, ROLL

PIN - roll, 3 x 32 mm

1шт.

29

161234A1

BRACKET

ASSEMBLY - hood, incudes clevis pin

1шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

31

160762A1

COTTER PIN

CLIP - hair pin

1шт.

32

163252A1

COVER

- upper, center

1шт.

33

150811A1

WASHER

- flat, special, 12 mm

9шт.

34

161578A1

COVER

- upper, right-hand

1шт.

35

161868A1

COVER

- upper, left-hand

1шт.

36

161601A1

COVER

- upper, center

1шт.

37

152804A1

GROMMET

- rubber

1шт.

38

161124A1

SEAL

- cushion, front side of cover

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

7шт.
