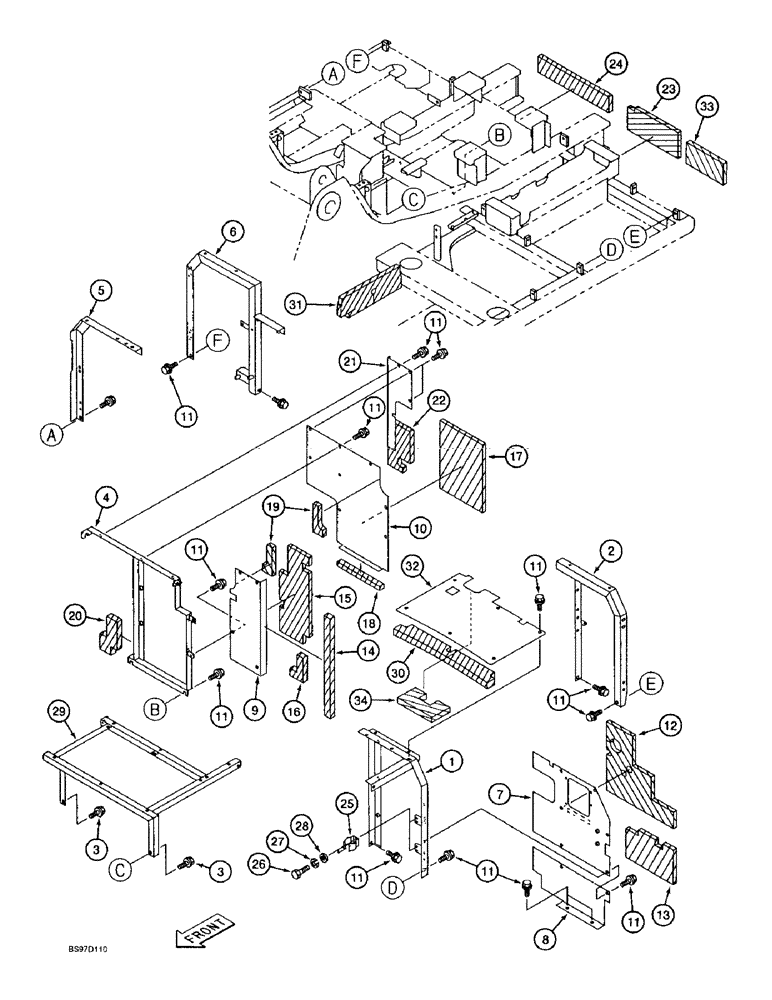

Запчасти Case 9020B (9-016) - UPPER STRUCTURE, FRAMES, COVERS AND INSULATION, P.I.N. DAC02#2001 AND AFTER (09) - CHASSIS

1

165536A1

FRAME

- upper structure, left-hand

1шт.

2

165535A1

FRAME

- upper structure, left-hand

1шт.

3

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

BOLT - special

2шт.

4

165735A1

FRAME

- upper structure, center

1шт.

5

164598A1

FRAME

- upper structure, right-hand

1шт.

6

164599A1

FRAME

- upper structure, right-hand

1шт.

7

165539A1

COVER

- center, left-hand

1шт.

8

165540A1

COVER

- center, left-hand

1шт.

9

165736A1

COVER

- center

1шт.

10

164600A1

COVER

- center

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

1шт.

12

165548A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

13

165547A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

14

165546A1

CUSHION

SEAL - cushion

1шт.

15

165545A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

16

161598A1

SCREW,35mm Thk

SEAL - cushion

1шт.

17

162691A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

18

161626A1

SEAL

- cushion

1шт.

19

162692A1

SEAL

- cushion

2шт.

20

161624A1

SEAL

- cushion

1шт.

21

164601A1

COVER

- center

1шт.

22

164602A1

SEAL

- cushion

1шт.

23

161615A1

FINGER

SEAL - cushion

1шт.

24

161584A1

SEAL

- cushion

1шт.

25

152772A1

HOLDER

- grease gun

2шт.

26

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

29

161078A1

FRAME

- upper structure, center

1шт.

30

161124A1

SEAL

- cushion

1шт.

31

161599A1

FINGER

SEAL - cushion

1шт.

32

165537A1

COVER

- upper structure, left-hand

1шт.

33

165552A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

34

165551A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.
