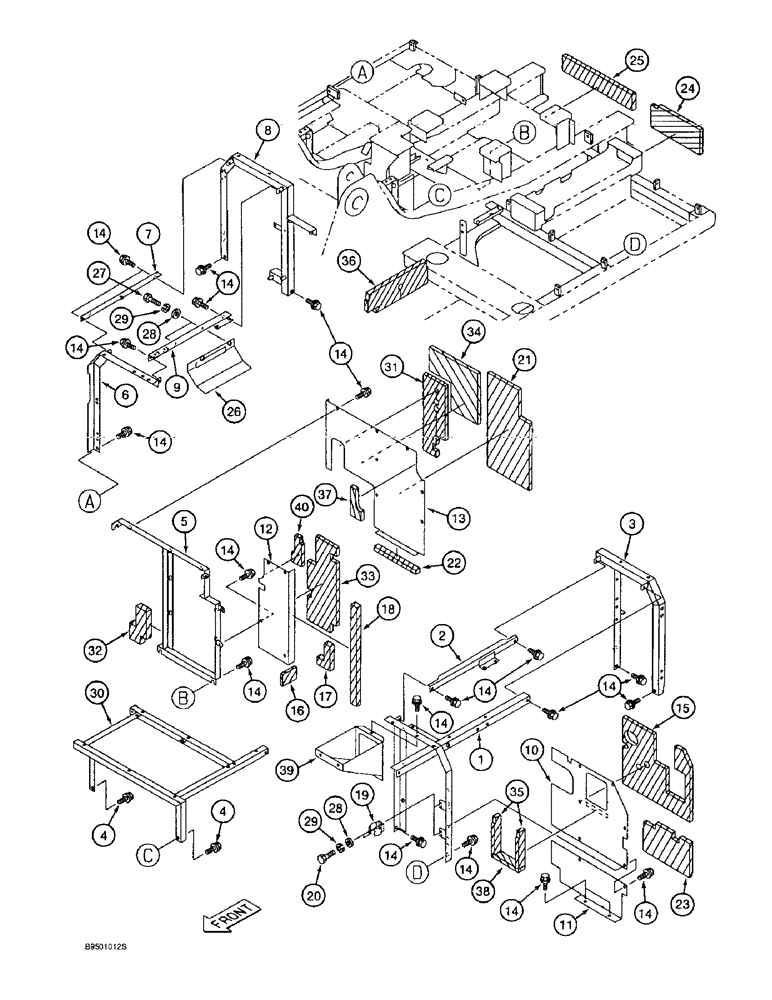

Запчасти Case 9020B (9-014) - UPPER STRUCTURE, FRAMES, COVERS AND INSULATION, PRIOR TO P.I.N. DAC02#2001 (09) - CHASSIS

1

161605A1

FRAME

- upper structure, left-hand

1шт.

2

161606A1

FRAME

- upper structure, left-hand

1шт.

3

161607A1

FRAME

- upper structure, left-hand

1шт.

4

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

BOLT - special

2шт.

5

162690A1

FRAME

- upper structure, center

1шт.

6

161589A1

FRAME

- upper structure, right-hand

1шт.

7

161602A1

FRAME

- upper structure, right-hand

1шт.

8

161625A1

FRAME

- upper structure, right-hand

1шт.

9

161590A1

FRAME

- upper structure, right-hand

1шт.

10

161867A1

COVER

- center, left-hand

1шт.

11

161611A1

COVER

- center, left-hand

1шт.

12

161612A1

COVER

- center, left-hand

1шт.

13

161613A1

COVER

- center

1шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

52шт.

15

161869A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

16

161627A1

SEAL

- cushion

1шт.

17

161598A1

SCREW,35mm Thk

SEAL - cushion

1шт.

18

161617A1

FINGER

SEAL - cushion

1шт.

19

152772A1

HOLDER

- grease gun

2шт.

20

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

21

162691A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

22

161626A1

SEAL

- cushion

1шт.

23

161600A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

24

161615A1

FINGER

SEAL - cushion

1шт.

25

161584A1

SEAL

- cushion

1шт.

26

161227A1

COVER

- upper structure

1шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

30

161078A1

FRAME

- upper structure, center

1шт.

31

161623A1

SEAL

- cushion

1шт.

32

161624A1

SEAL

- cushion

1шт.

33

161620A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

34

161622A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

35

161865A1

SEAL

- cushion

2шт.

36

161599A1

FINGER

SEAL - cushion

1шт.

37

162692A1

SEAL

- cushion

1шт.

38

161866A1

SEAL

- cushion

1шт.

39

161870A1

DUCT

- special

1шт.

40

162692A1

SEAL

- cushion

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.
