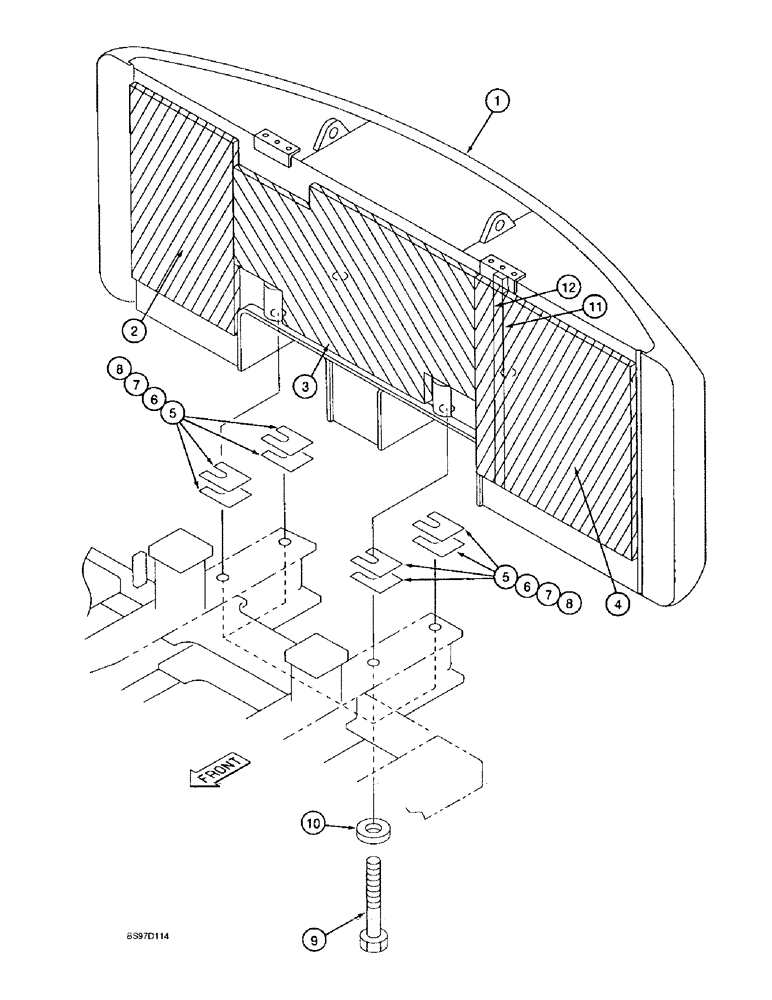

Запчасти Case 9020B (9-012) - COUNTERWEIGHT (09) - CHASSIS

1

161517A1

WEIGHT

COUNTERWEIGHT - boom and arm, 3000 kg (6614 lbs), no longer available, order 165335A1 counterweight

1шт.

1

165335A1

WEIGHT PACKAGE

COUNTERWEIGHT - boom and arm, 2930 kg (6461 lbs)

1шт.

2

161506A1

INSULATOR

INSULATION - acoustic, right-hand

1шт.

3

161507A1

INSULATOR

INSULATION - acoustic, center

1шт.

4

161508A1

INSULATOR

INSULATION - acoustic, left-hand, Serial Range: -DAC02#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

4

165509A1

NOISE PROTECTION

INSULATION - acoustic, left-hand, Start Serial: DAC02#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

5

158933A1

SHIM

- plate, 0.8 mm (0.03 inch) thick

1шт.

6

158934A1

SHIM

- plate, 1.2 mm (0.05 inch) thick

1шт.

7

158935A1

ADJUSTING PLATE

SHIM - plate, 2.3 mm (0.09 inch) thick

1шт.

8

158936A1

ADJUSTING PLATE

SHIM - plate, 4.5 mm (0.18 inch) thick

1шт.

9

161505A1

BOLT

- hex, special

4шт.

10

163857A1

WASHER

- special, replaces 157544A1 washer

4шт.

11

165510A1

SEAL

INSULATION - acoustic, Start Serial: DAC02#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

12

165511A1

NOISE PROTECTION

SEAL - cushion, Start Serial: DAC02#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.
