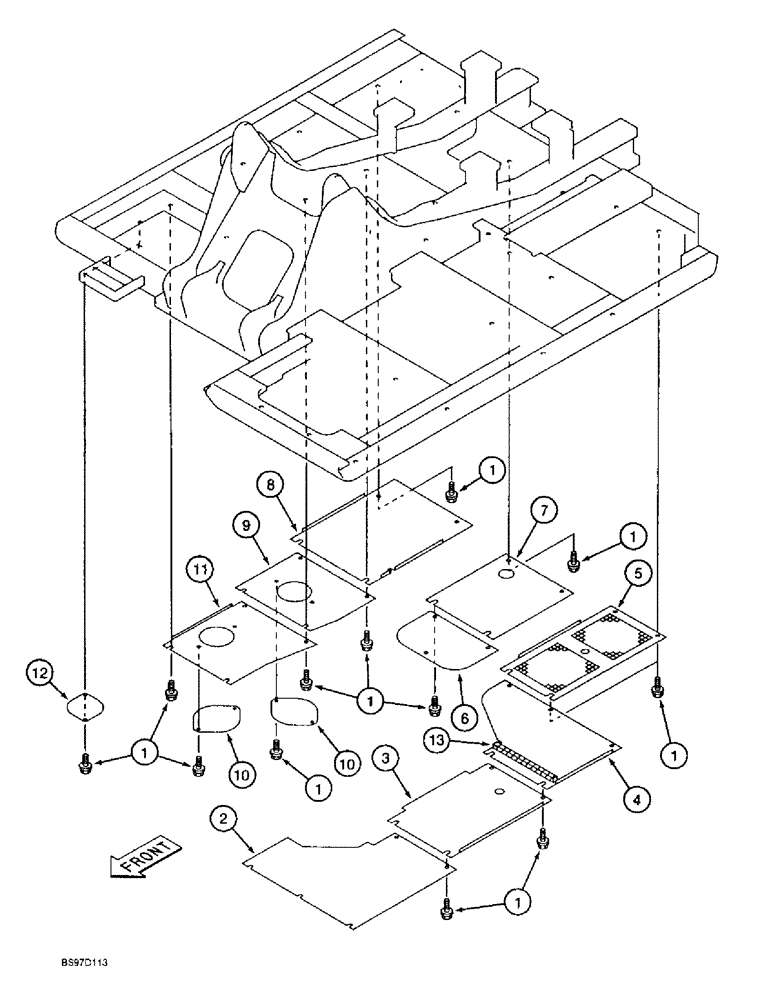

Запчасти Case 9020B (9-010) - TURNTABLE ACCESS COVERS, P.I.N. DAC02#2001 AND AFTER (09) - CHASSIS

1

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

BOLT - special, access cover

29шт.

2

164606A1

COVER

- access, turntable

1шт.

3

161510A1

COVER

- access, turntable

1шт.

4

161511A1

COVER

- access, turntable

1шт.

5

165512A1

COVER

- access, turntable

1шт.

This cover is solid. If looking for a cover with grates for air flow, the P/N is 161864A1, used on the non-emissioned engine for air flow. See Figure 9-009, Ref. 5.

1шт.

6

161513A1

COVER

- access, turntable

1шт.

7

163358A1

COVER

- access, turntable

1шт.

8

161515A1

COVER

- access, turntable

1шт.

9

161112A1

COVER

- access, turntable

1шт.

10

158950A1

COVER

- access, turntable

2шт.

11

161516A1

COVER

- access, turntable

1шт.

12

164297A1

COVER

- access, turntable

1шт.

13

164736A1

SEAL

- cushion

1шт.
