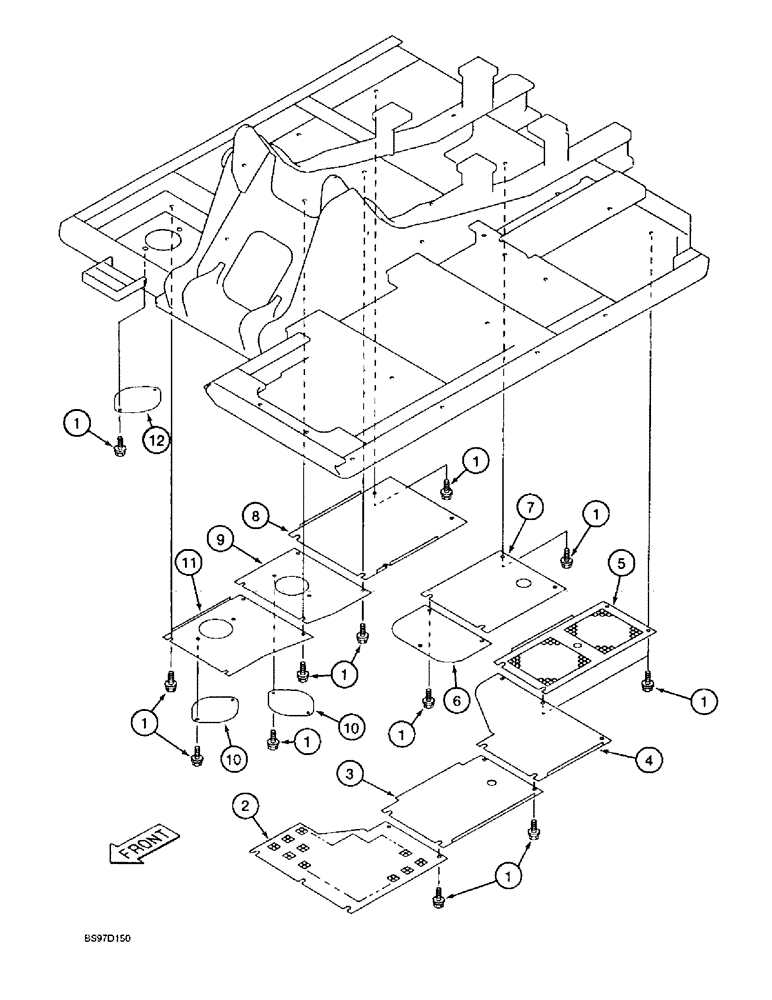

Запчасти Case 9020B (9-008) - TURNTABLE ACCESS COVERS, PRIOR TO P.I.N. DAC02#2001 (09) - CHASSIS
11
1
1
10
7
9
3
1
1
1
1
1
1
8
12
5
6
10
1
2
4
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
158919A1
CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl
BOLT - special, access cover
29-31шт.
With grates for air flow, the part used on the non-emissioned engine for air flow. See Figure 9-010, Ref. 5, for a solid cover.
1шт.
