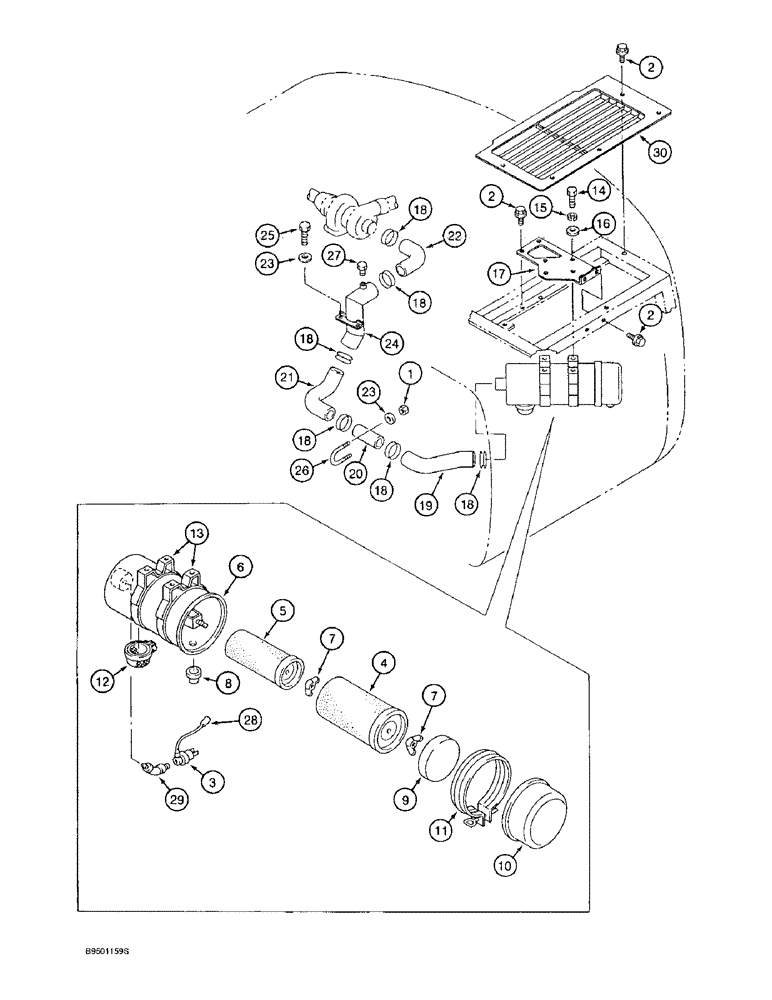

Запчасти Case 9020B (2-014) - AIR CLEANER SYSTEM, PRIOR TO P.I.N. DAC02#2001 (02) - ENGINE

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, bracket

7шт.

3

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

161125A1

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 4 - 13

1шт.

161126A1

AIR CLEANER

HOUSING ASSEMBLY - air cleaner, Includes: Ref. 4 - 11

1шт.

4

150478A1

ELEMENT

- outer

1шт.

5

150482A1

ELEMENT

- inner

1шт.

6

163320A1

HOUSING

BODY - air cleaner housing assembly

1шт.

7

156497A1

WING NUT

NUT - wing, includes gasket

2шт.

8

156669A1

VALVE

CUP - dust

1шт.

9

163321A1

BAFFLE

- housing assembly

1шт.

10

163322A1

CAP

- housing assembly

1шт.

11

163112A1

CLAMP

- adjustable

1шт.

12

161644A1

FILTER

CAP - screen, body assembly

1шт.

13

161120A1

COLLAR CLAMP

BRACKET - air cleaner mounting

2шт.

14

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

17

161535A1

BRACKET

- air cleaner attaching

1шт.

18

150902A1

COLLAR

CLAMP - adjustable

6шт.

19

161534A1

INTAKE AIR HOSE,76.20 mm ID x 381.30 mm

HOSE - air inlet, special, next to air cleaner body assembly

1шт.

20

161132A1

AIR INTAKE TUBE,76.3 mm OD, 165 mm Length

PIPE - air inlet

1шт.

21

161533A1

INTAKE AIR HOSE,76.20 mm ID x 175.00 mm

HOSE - air inlet, special

1шт.

22

161130A1

INTAKE AIR HOSE,76.20 mm ID x 110.00 mm

HOSE - air inlet, special, at turbocharger

1шт.

23

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

24

162688A1

PIPE

- air inlet, with mounting bracket

1шт.

25

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

26

161153A1

U-BOLT,M10 x 90mm W x 110mm L

BOLT - U-type, special

1шт.

27

150990A1

PLUG

- special

1шт.

28

161711A1

HARNESS

- wiring, air restriction indicator

1шт.

29

161710A1

ELBOW

- 45 degree, special

1шт.

30

161591A1

COVER

- air inlet, on upper structure

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

1

829-1410

NUT,M10 x 1.5, Cl 10.9

U-bolt M10, Cl 10

2шт.
