(9-006) - TURNTABLE, P.I.N. DAC02#2001 AND AFTER

Запчасти Case 9020B (9-006) - TURNTABLE, P.I.N. DAC02#2001 AND AFTER (09) - CHASSIS

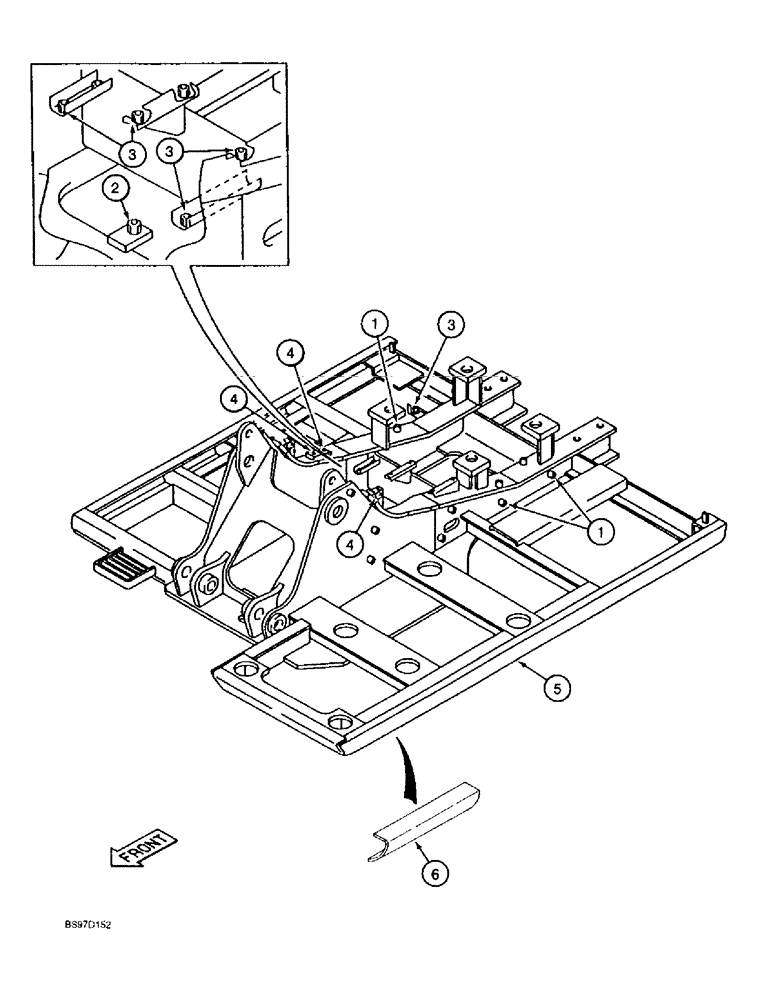

Схема запчастей Case 9020B - (9-006) - TURNTABLE, P.I.N. DAC02#2001 AND AFTER (09) - CHASSIS
3
1
2
4
6
1
3
3
4
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158811A1

BOSS

- special

41шт.

2

158918A1

SPECIAL NUT

- special

1шт.

3

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

14шт.

4

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

4шт.

5

164603A1

FRAME ASSY

FRAME - revolving, complete

1шт.

6

159752A1

ANGLE BAR

GUARD - formed angle iron

1шт.

Repair guard used on turntable sides. Guard is long enough to repair any side of the turntable. Cut and use the required length for the damaged side.

1шт.
