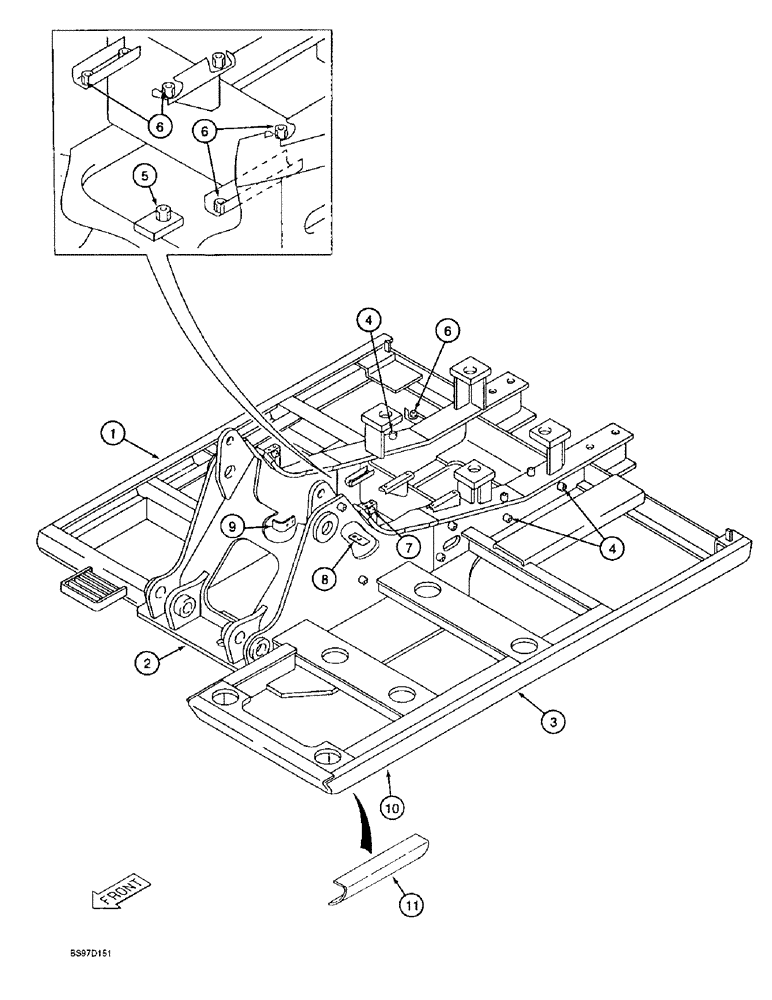

Запчасти Case 9020B (9-004) - TURNTABLE, PRIOR TO P.I.N. DAC02#2001 (09) - CHASSIS

1

161519A1

PLATFORM

- turntable, right-hand, no longer available, order Ref. 10, 163246A1 frame

1шт.

2

161518A1

FRAME

PLATFORM - boom mounting, no longer available, order Ref. 10, 163246A1 frame

1шт.

3

161520A1

PLATFORM

- turntable, left-hand, no longer available, order Ref. 10, 163246A1 frame

1шт.

4

158811A1

BOSS

- special

39шт.

5

158918A1

SPECIAL NUT

- special

1шт.

6

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

14шт.

7

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

4шт.

8

162866A1

BAR

- base, machines with load holding control device

1шт.

9

163263A1

BAR

- base, machines with load holding control device

1шт.

10

163246A1

FRAME ASSY

FRAME - revolving, complete

1шт.

11

159752A1

ANGLE BAR

GUARD - formed angle iron

1шт.

Repair guard used on turntable sides. Guard is long enough to repair any side of the turntable. Cut and use the required length for the damaged side.

1шт.
