Запчасти Case 9020B (9-002) - TURNTABLE BEARING (09) - CHASSIS

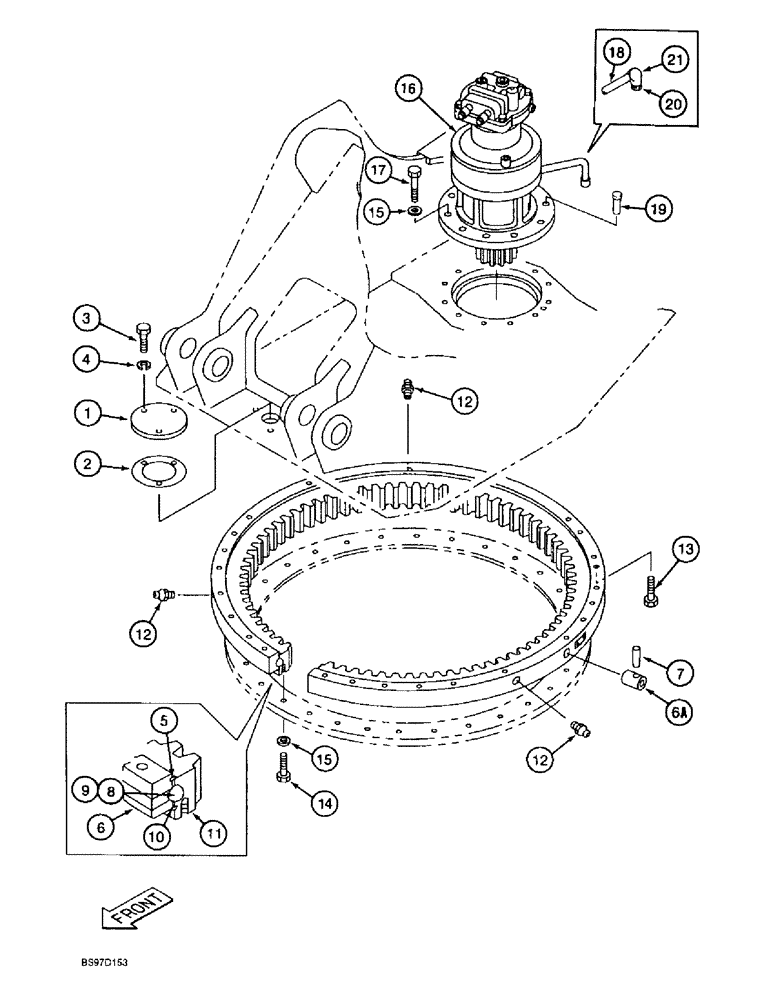

Схема запчастей Case 9020B - (9-002) - TURNTABLE BEARING (09) - CHASSIS
6a
3
2
12
20
15
16
5
12
4
9
19
15
7
17
21
1
11
13
10
14
12
18
8
6

Артикул

Название

Примечание

Количество

1

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

2

158930A1

CORK SEAL

GASKET - access cover

1шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

3шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

161314A1

GEAR, RING

BEARING ASSEMBLY - turntable, Includes: Ref. 5 - 11

1шт.

5

159762A1

SEALING RING

RING - seal, upper

1шт.

NSS

NOT SOLD SEPARAT

RACE ASSEMBLY - bearing, outer, Includes: Ref. 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

RACE - outer

1шт.

6a

NSS

NOT SOLD SEPARAT

STOPPER - ball bearing

1шт.

7

160433A1

DOWEL

PIN - special, stopper

1шт.

8

150980A1

BEARING, BALL,28.57mm OD

BEARING - ball, turntable

120шт.

9

159764A1

SPACER

- ball bearing

120шт.

10

159763A1

SEALING RING

RING - seal, lower

1шт.

11

NSS

NOT SOLD SEPARAT

RACE - bearing, inner

1шт.

12

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

13

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

31шт.

14

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

36шт.

15

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

47шт.

16

164613A1

MOTOR

DRIVE ASSEMBLY - swing, see parts list Figure 8-154, replaces 161304A1 drive assembly

1шт.

17

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 75 mm, class 10.9, swing drive attaching

11шт.

18

162214A1

TUBE,17.3 mm OD, 150 mm Length

- drive swing

1шт.

19

158955A1

HEADED PIN

PIN - headed, special

1шт.

20

150995A1

PLUG

- hex, pipe

1шт.

21

153563A1

ELBOW

- 90 degree

1шт.
