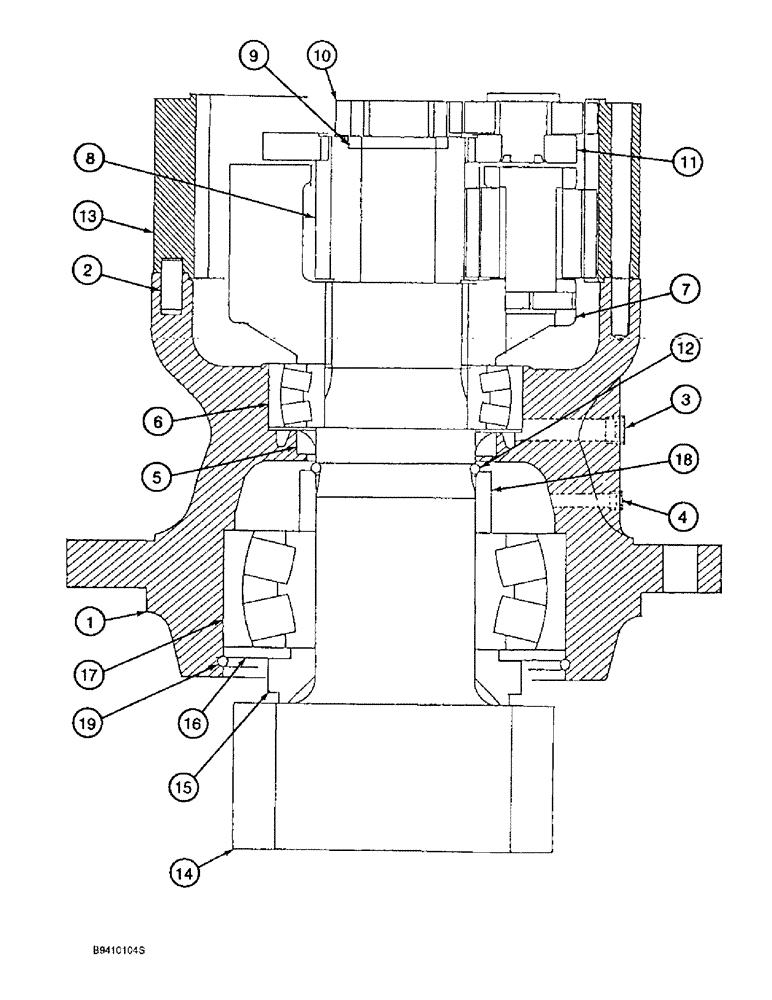

Запчасти Case 9020B (8-158) - SWING REDUCTION GEAR ASSEMBLY (08) - HYDRAULICS

161323A1

GEAR

ASSEMBLY - reduction, Includes: Ref. 1 - 199

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - swing gear reduction assembly, Includes: Ref. 2 - 4

1шт.

2

155621A1

COTTER PIN

PIN - dowel

4шт.

3

151030A1

PLUG

- port

1шт.

4

151022A1

PLUG

- hex socket, special

2шт.

5

155107A1

OIL SEAL

- oil

1шт.

6

160611A1

BEARING, ROLLER,90mm ID x 160mm OD x 40mm W

BEARING - roller, thrust

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

8

160520A1

GEAR

- differential

1шт.

9

160047A1

PLATE, THRUST

RING - thrust

1шт.

10

161806A1

SUN GEAR

GEAR - sun

1шт.

11

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

12

155686A1

RING, SNAP

RING - retaining

1шт.

13

160518A1

PINION

GEAR - ring

1шт.

14

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

15

160547A1

COLLAR CLAMP

COLLAR - shaft

1шт.

16

156356A1

PLATE

- shaft

1шт.

17

156157A1

BEARING, ROLLER,110mm ID x 215mm OD x 73mm W

BEARING - roller, thrust

1шт.

18

160548A1

COLLAR

- shaft

1шт.

19

155685A1

RING, SNAP

RING - retaining

1шт.
