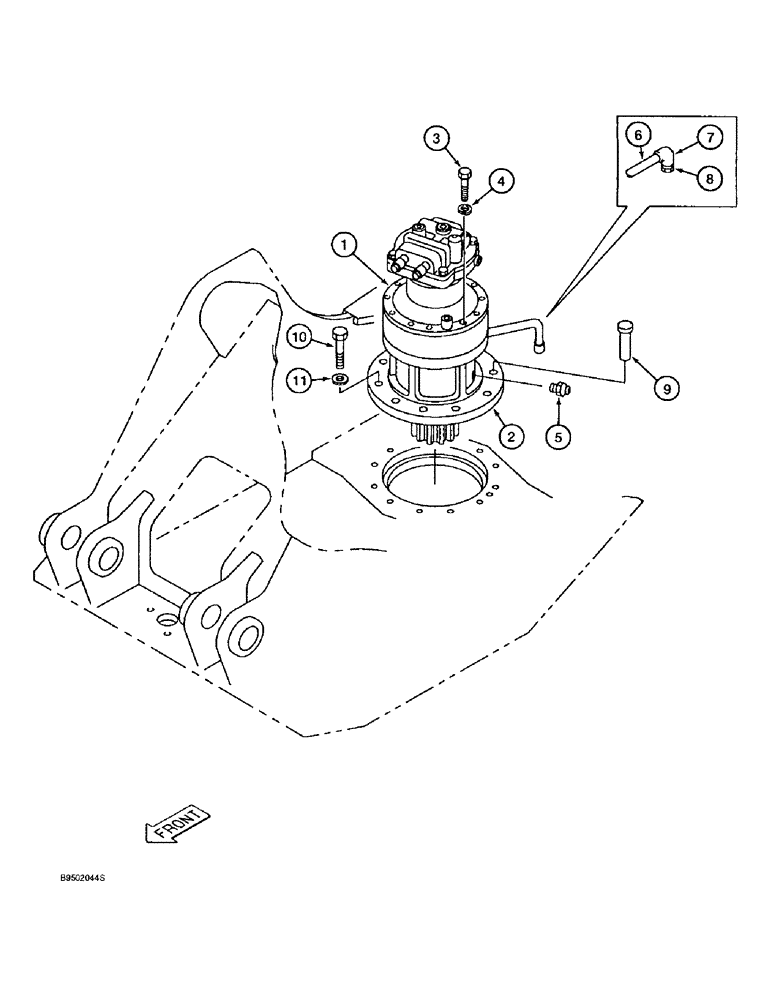

Запчасти Case 9020B (8-154) - SWING DRIVE ASSEMBLY AND MOUNTING (08) - HYDRAULICS

164613A1

MOTOR

DRIVE ASSEMBLY - swing, with reduction gear, was 161304A1, Includes: Ref. 1 - 4

1шт.

1

165627A1

MOTOR

ASSEMBLY - swing, was 160637A1, parts list Figure 8-156

1шт.

2

161323A1

GEAR

ASSEMBLY - reduction, swing drive, parts list on Figure 8-158

1шт.

3

828-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 150 mm, class 10.9

16шт.

4

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

16шт.

5

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

6

162214A1

TUBE,17.3 mm OD, 150 mm Length

- drain

1шт.

7

153563A1

ELBOW

- 90 degree, swing motor drain line

1шт.

8

150995A1

PLUG

- hex, pipe

1шт.

9

158955A1

HEADED PIN

PIN - headed, special, locator

1шт.

10

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 75 mm, class 10.9

11шт.

11

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

11шт.
