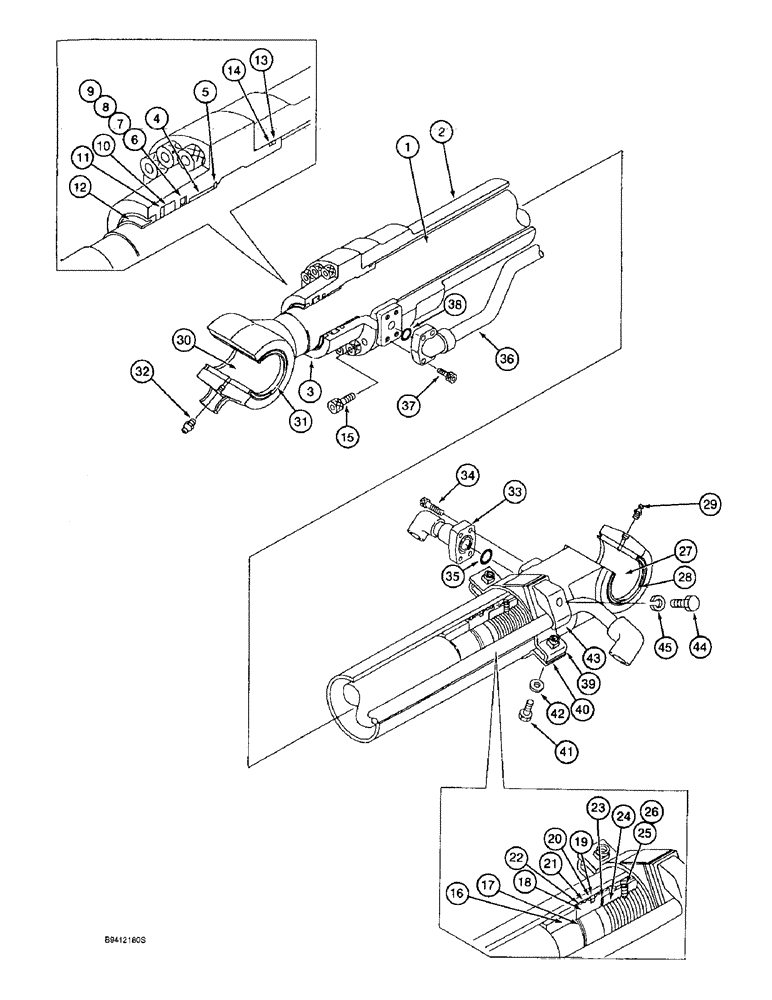

Запчасти Case 9020B (8-148) - BUCKET CYLINDER (08) - HYDRAULICS

161308A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 105 (4-9/64) ID x 997 mm (39-1/8 inch) stroke, bucket, Includes: Ref. 1 - 45

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

160843A1

BUSHING

- gland

1шт.

5

160870A1

BACK-UP RING

RING - retaining

1шт.

6

160785A1

SEALING RING

RING ASSEMBLY - buffer, Includes: Ref. 7 - 9

1шт.

7

160830A1

RING

- slide

1шт.

8

160815A1

BACK-UP RING

RING - backup

1шт.

9

160834A1

RING

- square

1шт.

10

160781A1

RING,75mm ID x 90mm OD x 9mm Thk

SEAL - U-cup

1шт.

11

160808A1

BACK-UP RING

RING - backup

1шт.

12

161887A1

BACK-UP RING

WIPER - piston rod

1шт.

13

154720A1

O-RING

- piston rod

1шт.

14

161880A1

BACK-UP RING

RING - backup

1шт.

15

161058A1

BOLT,Hex Skt Hd

BOLT - hex socket, special

12шт.

16

160872A1

RING

- cushion

1шт.

17

160786A1

SEAL

- piston

1шт.

18

161911A1

PISTON

- cylinder

1шт.

19

155330A1

SEALING RING

SEAL - piston

1шт.

20

161881A1

BACK-UP RING

RING - backup

2шт.

21

161882A1

BACK-UP RING

RING - wear

2шт.

22

161883A1

BACK-UP RING

RING - wear

2шт.

23

161895A1

SHIM

WASHER - flat, special

1шт.

24

161918A1

NUT

- special

1шт.

25

156222A1

SCREW

- set

1шт.

26

155977A1

BALL

- steel

1шт.

27

155435A1

BUSHING

- mounting pin, closed end

1шт.

28

155159A1

RING

WIPER - mounting pin, closed end

2шт.

29

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

30

155434A1

BUSHING

- mounnting pin, rod end

1шт.

31

155156A1

RING

WIPER - mounting pin, rod end

2шт.

32

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

161914A1

SEAL KIT

KIT - seal, contains Refs. 6 - 14, 17, and 19 - 23, in the quantities specified

1шт.

161909A1

HEAD

KIT - gland replacement, contains Refs. 3 - 5, in the quantities specified

1шт.

161908A1

ROD

KIT - rod replacement, contains Refs. 1 and 30, in the quantities specified

1шт.

161907A1

TUBE

KIT - tube replacement, contains Refs. 2 and 27, in the quantities specified

1шт.

33

155516A1

TUBE

TUBE - hydraulic, closed end

1шт.

34

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

35

154528A1

O-RING

- tube

1шт.

36

161894A1

HYD TUBE

TUBE - hydraulic, rod end

1шт.

37

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

38

154528A1

O-RING

- tube

1шт.

39

161923A1

BAND

CLAMP - band

1шт.

40

161929A1

MOUNTING CLIP

CLAMP - band

1шт.

41

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

42

156227A1

WASHER

- lock, special

2шт.

43

155717A1

COLLAR

CLAMP - tube, special

1шт.

44

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

45

112312A1

LOCK WASHER

- lock, 12 mm

1шт.
