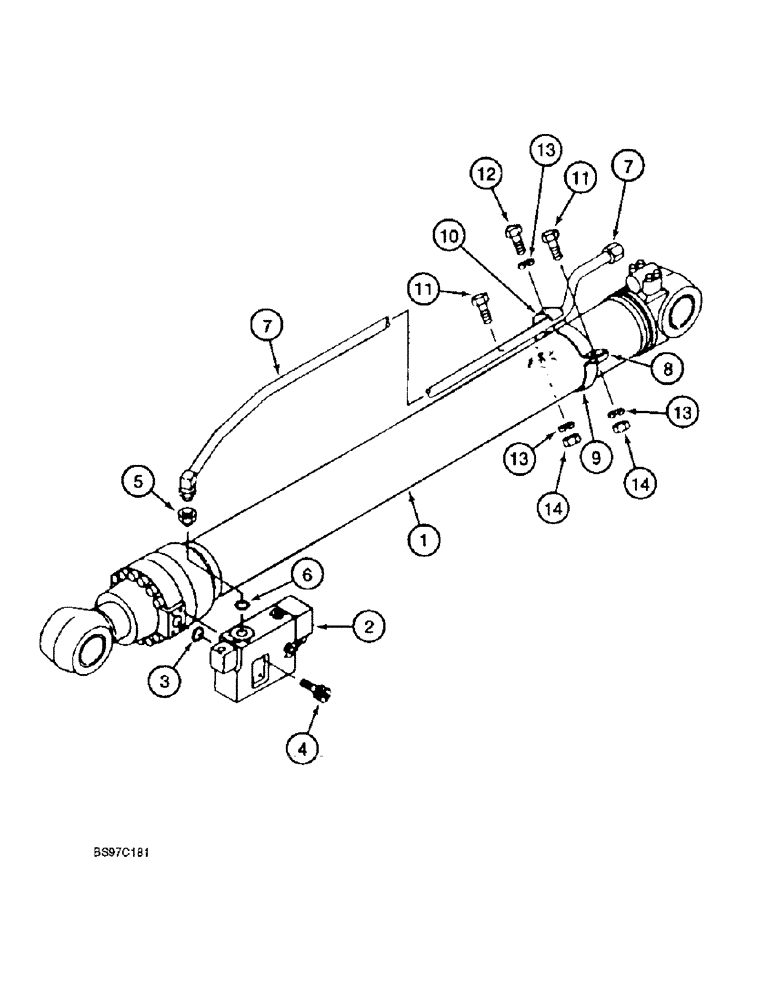

Запчасти Case 9020B (8-144) - LOAD HOLDING OPTION, HOLDING VALVE AND TUBE AT ARM CYLINDER (08) - HYDRAULICS

1

163487A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 125 (4-7/8) ID x 1335 mm (52-9/16 inch) stroke, arm, parts list Figure 8-146

1шт.

2

163490A1

VALVE

ASSEMBLY - load holding, arm cylinder

1шт.

3

154549A1

O-RING

- cover

1шт.

4

862-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 90 mm, class 12.9

4шт.

5

159387A1

ADAPTER

- straight, special, Includes: Ref. 6

1шт.

6

154523A1

O-RING

- adapter

1шт.

7

163489A1

HYD TUBE

TUBE - hydraulic, at cylinder tube, rod end

1шт.

8

163486A1

CLAMP

- special, with tube bracket

1шт.

9

163485A1

CLAMP

- plain half

1шт.

10

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

14

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.
