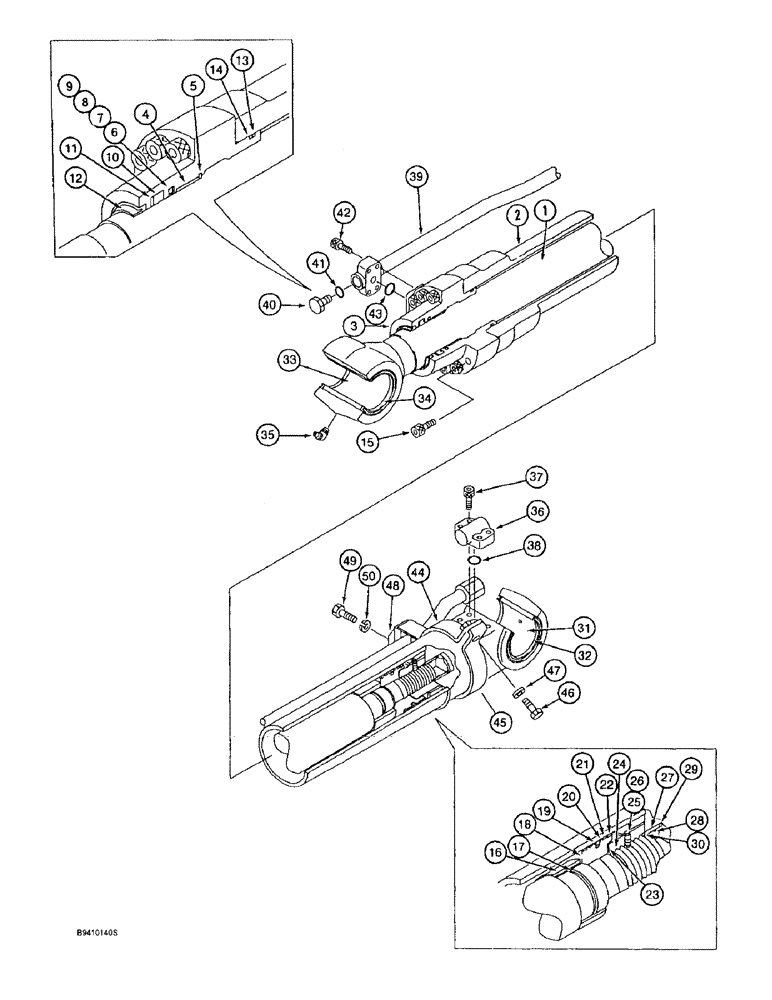

Запчасти Case 9020B (8-140) - ARM CYLINDER, MODELS WITHOUT LOAD HOLD OPTION (08) - HYDRAULICS

161307A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 125 (4-7/8) ID x 1335 mm (52-9/16 inch) stroke, arm, Includes: Ref. 1 - 50

1шт.

161905A1

ROD

KIT - rod replacement, Includes: Ref. 1 and 33 below

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

161904A1

TUBE

KIT - tube replacement, Includes: Ref 2 and 31 below

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

161906A1

HEAD

KIT - gland replacement, Includes: Ref 3 - 5 below

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

160050A1

BUSHING

- gland, was 161888A1

1шт.

5

155713A1

RING, SNAP

RING - retaining

1шт.

6

160123A1

BACK-UP RING

RING ASSEMBLY - buffer, Includes: Ref. 7 - 9

1шт.

7

160015A1

BACK-UP RING

RING - slide

1шт.

8

159991A1

BACK-UP RING

RING - backup

1шт.

9

160020A1

RING

- square

1шт.

10

155145A1

RING,90mm ID x 105mm OD x 9mm Thk

SEAL - U-cup

1шт.

11

155249A1

BACK-UP RING

RING - backup

1шт.

12

161877A1

BACK-UP RING

WIPER - piston rod

1шт.

13

154761A1

O-RING,119.4mm ID x 3.1mm Width

SEAL -

1шт.

14

155240A1

BACK-UP RING

RING - backup

1шт.

15

161059A1

BOLT,Hex Skt, M16 x 70mm, Cl 12.9

BOLT - hex, special

12шт.

16

161878A1

BUSHING

BEARING - cushion

1шт.

17

160125A1

SEAL

- piston

1шт.

18

160570A1

PISTON

- cylinder

1шт.

19

155311A1

SEALING RING

SEAL - piston

1шт.

20

160509A1

BACK-UP RING

RING - backup

2шт.

21

161886A1

BACK-UP RING

RING - wear

2шт.

22

155306A1

SEALING RING

RING - wear

2шт.

23

155737A1

SHIM

WASHER - flat, special

1шт.

24

156233A1

NUT

- special

1шт.

25

156223A1

SET SCREW

SCREW - set

1шт.

26

155977A1

BALL

- steel

1шт.

27

161879A1

RING

- cushion

1шт.

28

160555A1

SEAL

- cushion

1шт.

29

160556A1

STOP

- cushion

2шт.

30

161926A1

RING, SNAP

RING - snap

1шт.

31

161875A1

BUSHING

- mounting pin, closed end

1шт.

32

160500A1

RING

WIPER - pin, closed end

2шт.

33

161875A1

BUSHING

- mounting pin, rod end

1шт.

34

160500A1

RING

WIPER - pin, rod end

2шт.

35

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

36

161893A1

JOINT

ELBOW - 90 degree, closed end

1шт.

37

160301A1

BOLT

- special

4шт.

38

154543A1

O-RING

- Elbow

1шт.

161913A1

SEAL KIT

KIT - seal replacement, contains Refs. 6 - 14, 17 - 23, and 28, in the quantities specified

1шт.

39

161892A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, Includes: Ref. 40 and 41

1шт.

40

152924A1

PLUG

- tube assembly sealing

1шт.

41

154503A1

O-RING

- port plug

1шт.

42

160301A1

BOLT

- special

4шт.

43

154543A1

O-RING

- Tube assembly

1шт.

44

161927A1

BAND

CLAMP - band

1шт.

45

161928A1

MOUNTING CLIP

CLAMP - band

1шт.

46

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

47

156227A1

WASHER

- lock, special

2шт.

48

155717A1

COLLAR

CLAMP - tube, special

1шт.

49

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

50

112312A1

LOCK WASHER

- lock, 12 mm

1шт.
