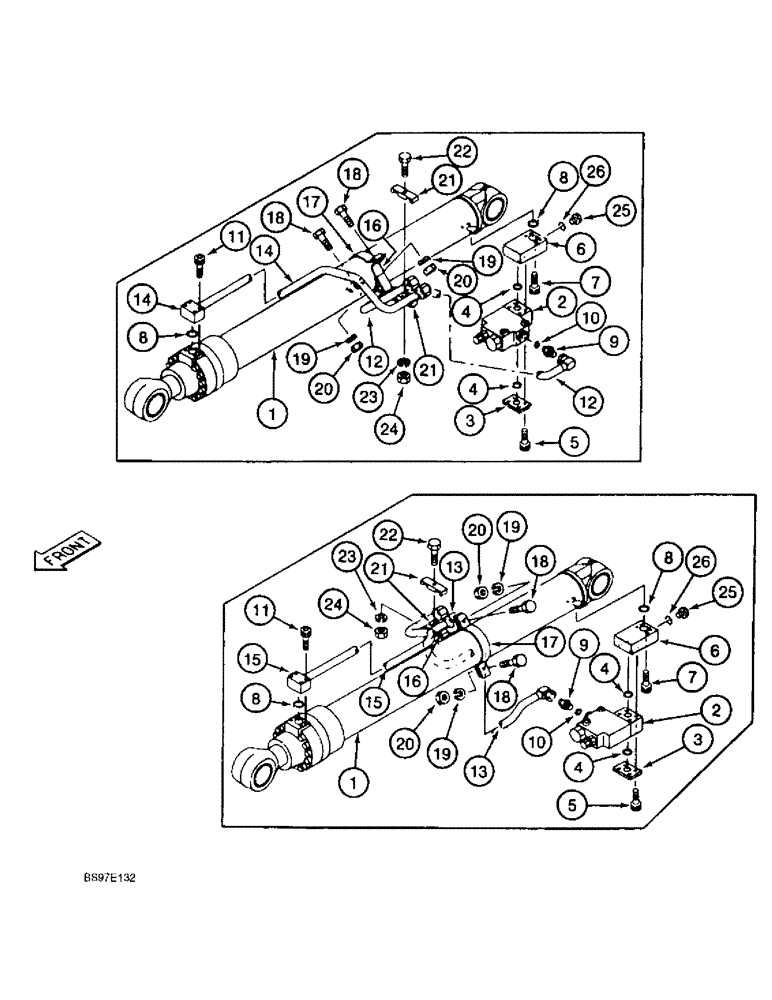

Запчасти Case 9020B (8-136) - LOAD HOLDING OPTION, HOLDING VALVES AND TUBES AT BOOM CYLINDERS (08) - HYDRAULICS

1

163476A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1184 mm (46-5/8 inch) stroke, boom, parts list Figure 8-138

2шт.

2

164154A1

VALVE

ASSEMBLY - load holding, boom cylinder

2шт.

3

161955A1

FLANGE

COVER - flat, flange port

2шт.

4

154549A1

O-RING

- cover

4шт.

5

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 100 mm, class 12.9

8шт.

6

163480A1

MANIFOLD

- cylinder

2шт.

7

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

8шт.

8

154529A1

O-RING

- cylinder tube port

4шт.

9

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 10

2шт.

10

154503A1

O-RING

- adapter

1шт.

11

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 60 mm, class 12.9

8шт.

12

163478A1

HYD TUBE

TUBE - hydraulic, right-hand, at load hold valve

1шт.

13

163481A1

HYD TUBE

TUBE - hydraulic, left-hand, at load hold valve

1шт.

14

163477A1

HYD TUBE

TUBE - hydraulic, right-hand, at cylinder tube, rod end

1шт.

15

163513A1

HYD TUBE

TUBE - hydraulic, left-hand, at cylinder tube, rod end

1шт.

16

163475A1

CLAMP

- special, with tube bracket

2шт.

17

163474A1

CLAMP

- plain half

2шт.

18

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

19

892-11010

LOCK WASHER,M10

4шт.

21

161960A1

COLLAR

CLAMP - tube

4шт.

22

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

24

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

25

159085A1

PLUG

- manifold port, Includes: Ref. 26

2шт.

26

154487A1

O-RING

- plug

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
